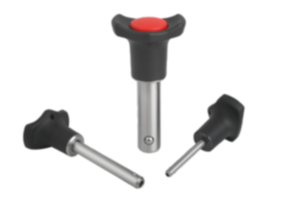

Item description/product images

DescriptionMaterial:Grip and push button thermoplastic.
Metal parts stainless steel.Version:Grip black.
Push button traffic red.
Steel parts bright.Note:Ball lock pins are used for easy fastening or joining of components.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for instyleation purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.Accessory:Bushings for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367Drawing reference:

1) Metal collar

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0363_Metric Ball Lock Pins, metric

173 kB

Drawings

Item selection/filter

Item No.	D	D1	D2	D3	L	L1	L2	L5	Receiving hole H11	Shearing force double shear max.kN	Price
K0363.3805010	38	5	5,5	16	10	6	32,5	16	5	15	25.89 $ (USD)
K0363.3805015	38	5	5,5	16	15	6	32,5	21	5	15	25.89 $ (USD)
K0363.3805020	38	5	5,5	16	20	6	32,5	26	5	15	26.10 $ (USD)
K0363.3805025	38	5	5,5	16	25	6	32,5	31	5	15	26.10 $ (USD)
K0363.3805030	38	5	5,5	16	30	6	32,5	36	5	15	27.54 $ (USD)
K0363.3806010	38	6	6,85	16	10	7	32,5	17	6	22	25.89 $ (USD)
K0363.3806015	38	6	6,85	16	15	7	32,5	22	6	22	25.89 $ (USD)
K0363.3806020	38	6	6,85	16	20	7	32,5	27	6	22	26.10 $ (USD)
K0363.3806025	38	6	6,85	16	25	7	32,5	32	6	22	26.10 $ (USD)
K0363.3806030	38	6	6,85	16	30	7	32,5	37	6	22	27.54 $ (USD)
K0363.3806035	38	6	6,85	16	35	7	32,5	42	6	22	27.54 $ (USD)
K0363.3806040	38	6	6,85	16	40	7	32,5	47	6	22	27.94 $ (USD)
K0363.3806045	38	6	6,85	16	45	7	32,5	52	6	22	27.94 $ (USD)
K0363.3806050	38	6	6,85	16	50	7	32,5	57	6	22	27.94 $ (USD)
K0363.3808020	38	8	9,5	16	20	8	32,5	28	8	38	28.30 $ (USD)
K0363.3808025	38	8	9,5	16	25	8	32,5	33	8	38	28.30 $ (USD)
K0363.3808030	38	8	9,5	16	30	8	32,5	38	8	38	30.24 $ (USD)
K0363.3808035	38	8	9,5	16	35	8	32,5	43	8	38	30.24 $ (USD)
K0363.3808040	38	8	9,5	16	40	8	32,5	48	8	38	30.70 $ (USD)
K0363.3808045	38	8	9,5	16	45	8	32,5	53	8	38	30.70 $ (USD)
K0363.3808050	38	8	9,5	16	50	8	32,5	58	8	38	30.70 $ (USD)
K0363.4710020	47	10	12	23	20	9	40	29	10	60	43.89 $ (USD)
K0363.4710025	47	10	12	23	25	9	40	34	10	60	43.89 $ (USD)
K0363.4710030	47	10	12	23	30	9	40	39	10	60	46.14 $ (USD)
K0363.4710035	47	10	12	23	35	9	40	44	10	60	46.14 $ (USD)
K0363.4710040	47	10	12	23	40	9	40	49	10	60	46.14 $ (USD)
K0363.4710045	47	10	12	23	45	9	40	54	10	60	46.56 $ (USD)
K0363.4710050	47	10	12	23	50	9	40	59	10	60	46.56 $ (USD)
K0363.4710060	47	10	12	23	60	9	40	69	10	60	48.37 $ (USD)
K0363.4712025	47	12	14,5	23	25	10	40	35	12	86	45.23 $ (USD)
K0363.4712030	47	12	14,5	23	30	10	40	40	12	86	47.49 $ (USD)
K0363.4712035	47	12	14,5	23	35	10	40	45	12	86	47.49 $ (USD)
K0363.4712040	47	12	14,5	23	40	10	40	50	12	86	47.49 $ (USD)
K0363.4712045	47	12	14,5	23	45	10	40	55	12	86	47.49 $ (USD)
K0363.4712050	47	12	14,5	23	50	10	40	60	12	86	47.49 $ (USD)
K0363.4712060	47	12	14,5	23	60	10	40	70	12	86	49.70 $ (USD)
K0363.4712070	47	12	14,5	23	70	10	40	80	12	86	51.97 $ (USD)
K0363.4712080	47	12	14,5	23	80	10	40	90	12	86	51.97 $ (USD)
K0363.4716030	47	16	19	23	30	13	40	43	16	153	80.74 $ (USD)
K0363.4716035	47	16	19	23	35	13	40	48	16	153	80.74 $ (USD)
K0363.4716040	47	16	19	23	40	13	40	53	16	153	80.74 $ (USD)
K0363.4716045	47	16	19	23	45	13	40	58	16	153	80.94 $ (USD)
K0363.4716050	47	16	19	23	50	13	40	63	16	153	80.94 $ (USD)
K0363.4716060	47	16	19	23	60	13	40	73	16	153	86.61 $ (USD)
K0363.4716070	47	16	19	23	70	13	40	83	16	153	86.61 $ (USD)
K0363.4716080	47	16	19	23	80	13	40	93	16	153	92.19 $ (USD)
