Ball lock pins stainless steel

go back

Products
- Ball Lock Pins
  - Ball Lock Pins, Modern Style
    - Ball lock pins stainless steel

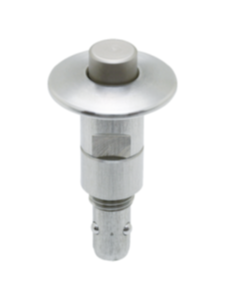

Item description/product images

DescriptionMaterial:Housing and push button stainless steel.
Ball, spring and snap ring stainless steel.
O-ring FKM.Version:Housing bright.
Push button bright.
Ball tempered.Note:Installation dimensions for style A for plate thickness 6 mm.
Installation dimensions for style B for plate thickness 6 to 16 mm.Attention:The specified pullout forces only apply in conjunction with locating bushing K1065.Accessory:Locating bushing K1065.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1063 Ball lock pins stainless steel

264 kB

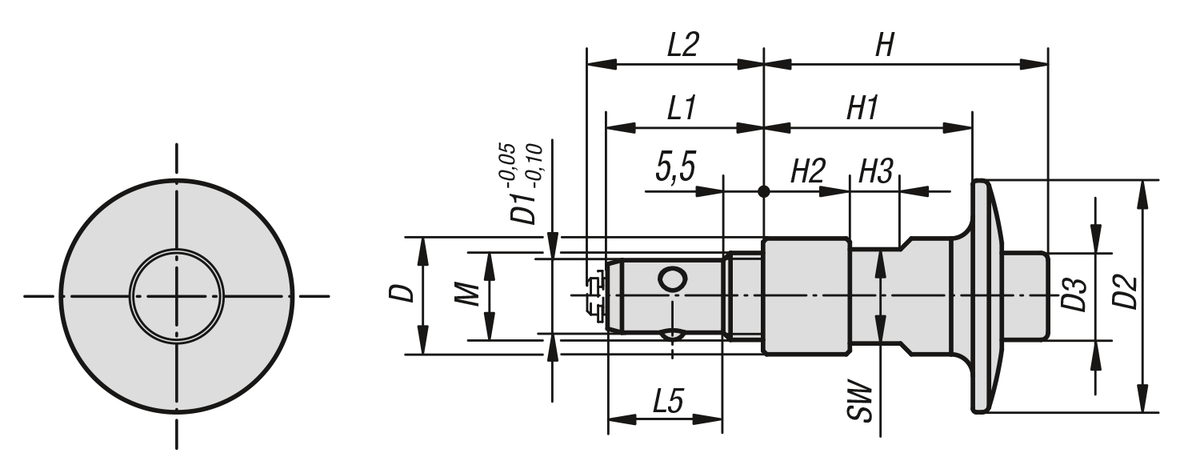

Drawings

Item selection/filter

Order No.	D	D1	D2	D3	M	L1	L2	L5	H	H1	H2	H3	SW	D5	D6	T max.	Clamping force N	Shearing force kN	Pullout force kN	Temperature resistance	CAD	Acc.	Price	Order
K1063.6211	12	6	23	8	M8	19	21	13,5	25,8	18	6	5,5	10	8	13	10	30	3	0,5	≤180 °C			75.41 $ (USD)
K1063.10241	16	10	32	12	M12x1,5	21,5	23,5	16	39,4	29	12	7	13	12	17	16	50	9	1,5	≤180 °C			80.05 $ (USD)
