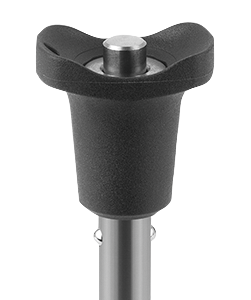

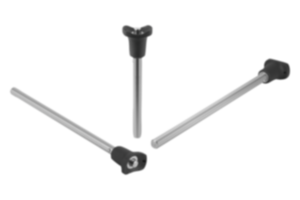

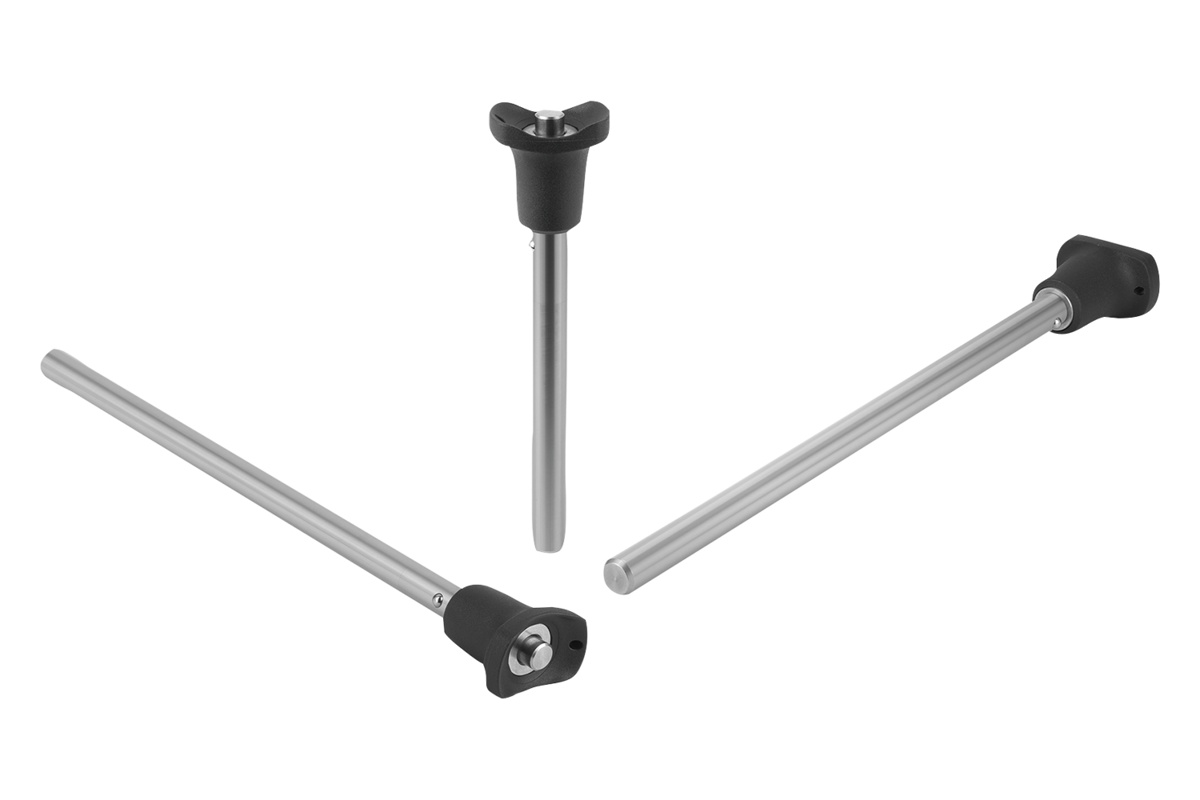

K1415Ball lock pins stainless steel, with headend lock |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Grip thermoplastic.
Push button 1.4305 (AISI 303 equivalent) stainless steel.
Pin 1.4305 (AISI 303 equivalent) stainless steel.
Balls 1.4125 (AISI 440C equivalent) stainless steel.
Spring 1.4310 (AISI 301 equivalent) stainless steel wire.Version:Grip black. Stainless steel bright.Note:Ball lock pins are used for easy fastening or joining of components. The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely.
Shear force double shear (F) = S · τ aB max.
The values given for the shear force are the theoretical breaking load. These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for instyleation purposes only and do not constitute a legally binding assurance of properties.
The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

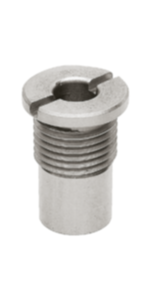

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.Benefits:Wide connections possible. The pin length does not need to be coordinated with the component width.On request:Other pin lengths.Accessory:Adapter bushings for ball lock pins with head lock K1416. Safety spiral cable K0367 Retaining cable with eyelet K0367 Key ring K0367Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

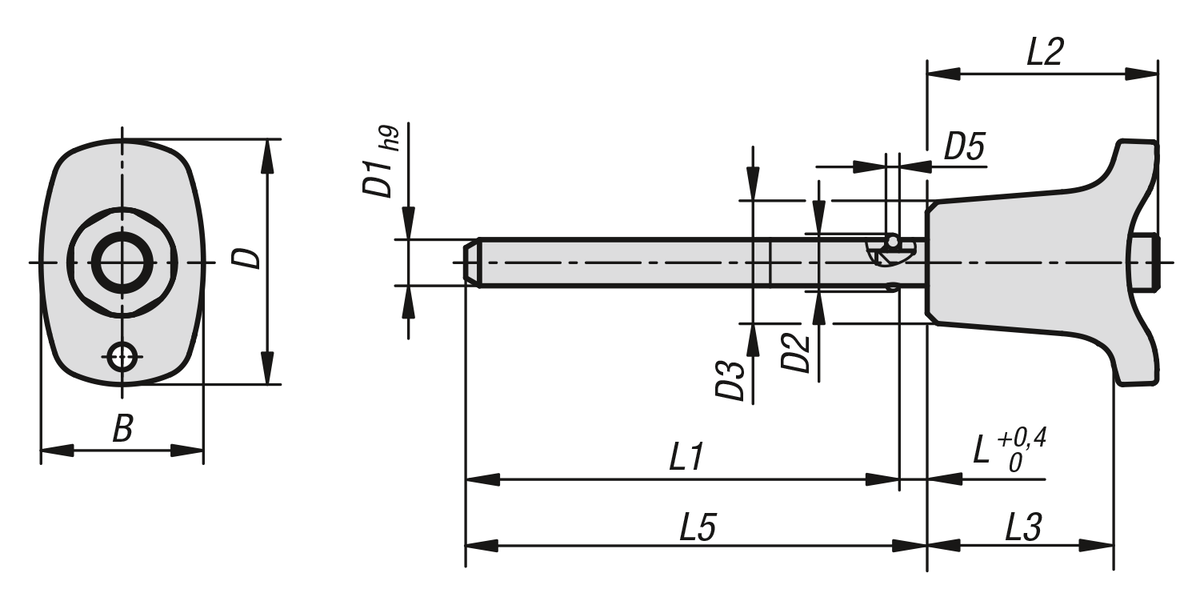

Order No. | B | D | D1 | D2 | D3 | D5 | L | L1 | L2 | L3 | L5 | Receiving hole H11 | Shearing force double shear max.kN | CAD | Acc. | Price | Order |
---|
K1415.002605050 | 17,6 | 26,4 | 5 | 5,5 | 13,2 | 1,5 | 3 | 47 | 25 | 20,2 | 50 | 5 | 10 |  | | 36.90 $ (USD) | | K1415.002605100 | 17,6 | 26,4 | 5 | 5,5 | 13,2 | 1,5 | 3 | 97 | 25 | 20,2 | 100 | 5 | 10 |  | | 38.03 $ (USD) | | K1415.002605150 | 17,6 | 26,4 | 5 | 5,5 | 13,2 | 1,5 | 3 | 147 | 25 | 20,2 | 150 | 5 | 10 |  | | 38.30 $ (USD) | | K1415.002606050 | 17,6 | 26,4 | 6 | 6,85 | 13,2 | 2 | 3 | 47 | 25 | 20,2 | 50 | 6 | 14 |  | | 37.65 $ (USD) | | K1415.002606100 | 17,6 | 26,4 | 6 | 6,85 | 13,2 | 2 | 3 | 97 | 25 | 20,2 | 100 | 6 | 14 |  | | 38.79 $ (USD) | | K1415.002606150 | 17,6 | 26,4 | 6 | 6,85 | 13,2 | 2 | 3 | 147 | 25 | 20,2 | 150 | 6 | 14 |  | | 39.17 $ (USD) | | K1415.003308100 | 23 | 33,2 | 8 | 9,5 | 17,3 | 3 | 3,5 | 96,5 | 33 | 26,1 | 100 | 8 | 26 |  | | 40.26 $ (USD) | | K1415.003308150 | 23 | 33,2 | 8 | 9,5 | 17,3 | 3 | 3,5 | 146,5 | 33 | 26,1 | 150 | 8 | 26 |  | | 40.95 $ (USD) | | K1415.003308200 | 23 | 33,2 | 8 | 9,5 | 17,3 | 3 | 3,5 | 196,5 | 33 | 26,1 | 200 | 8 | 26 |  | | 41.91 $ (USD) | | K1415.003310100 | 23 | 33,2 | 10 | 12 | 17,3 | 4 | 3,5 | 96,5 | 33 | 26,1 | 100 | 10 | 40 |  | | 41.49 $ (USD) | | K1415.003310150 | 23 | 33,2 | 10 | 12 | 17,3 | 4 | 3,5 | 146,5 | 33 | 26,1 | 150 | 10 | 40 |  | | 42.77 $ (USD) | | K1415.003310200 | 23 | 33,2 | 10 | 12 | 17,3 | 4 | 3,5 | 196,5 | 33 | 26,1 | 200 | 10 | 40 |  | | 43.50 $ (USD) | | K1415.004612150 | 33 | 45,9 | 12 | 14,5 | 26,3 | 4,5 | 3,5 | 146,5 | 39,5 | 31,3 | 150 | 12 | 57 |  | | 47.24 $ (USD) | | K1415.004612200 | 33 | 45,9 | 12 | 14,5 | 26,3 | 4,5 | 3,5 | 196,5 | 39,5 | 31,3 | 200 | 12 | 57 |  | | 48.80 $ (USD) | | K1415.004612250 | 33 | 45,9 | 12 | 14,5 | 26,3 | 4,5 | 3,5 | 246,5 | 39,5 | 31,3 | 250 | 12 | 57 |  | | 49.68 $ (USD) | | K1415.004616150 | 33 | 45,9 | 16 | 19 | 26,3 | 6,5 | 4 | 146 | 39,5 | 31,3 | 150 | 16 | 100 |  | | 51.33 $ (USD) | | K1415.004616200 | 33 | 45,9 | 16 | 19 | 26,3 | 6,5 | 4 | 196 | 39,5 | 31,3 | 200 | 16 | 100 |  | | 54.08 $ (USD) | | K1415.004616250 | 33 | 45,9 | 16 | 19 | 26,3 | 6,5 | 4 | 246 | 39,5 | 31,3 | 250 | 16 | 100 |  | | 55.62 $ (USD) | |
