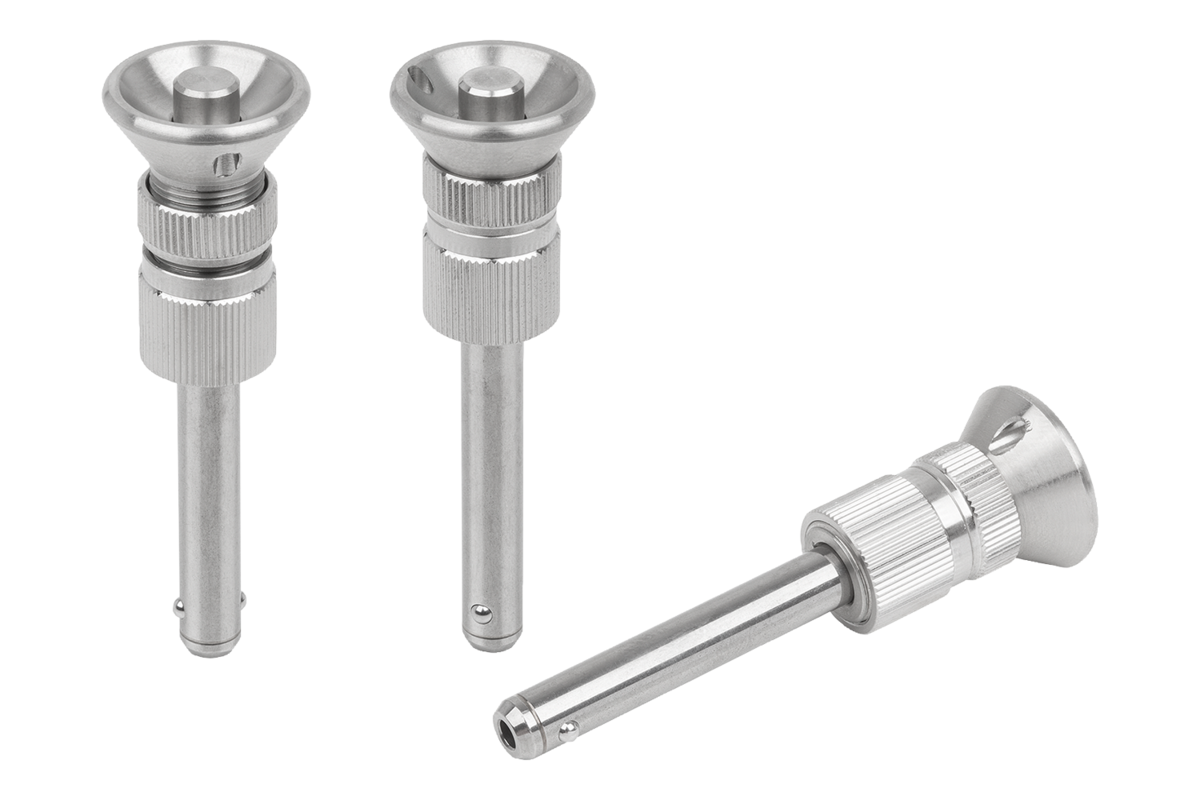

K1299Ball lock pins with mushroom grip stainless steel, adjustable |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Mushroom grip, locknut, adjusting nut and push button, 1.4305 (AISI 303 equivalent) stainless steel.
Pin, 1.4305 (AISI 303 equivalent) stainless steel.
Balls, 1.4125 (AISI 440C equivalent) stainless steel.
Compression spring, 1.4310 (AISI 301 equivalent) stainless steel.Version:Bright.Note:Ball lock pins are used for easy fastening or joining of components or workpieces.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely.

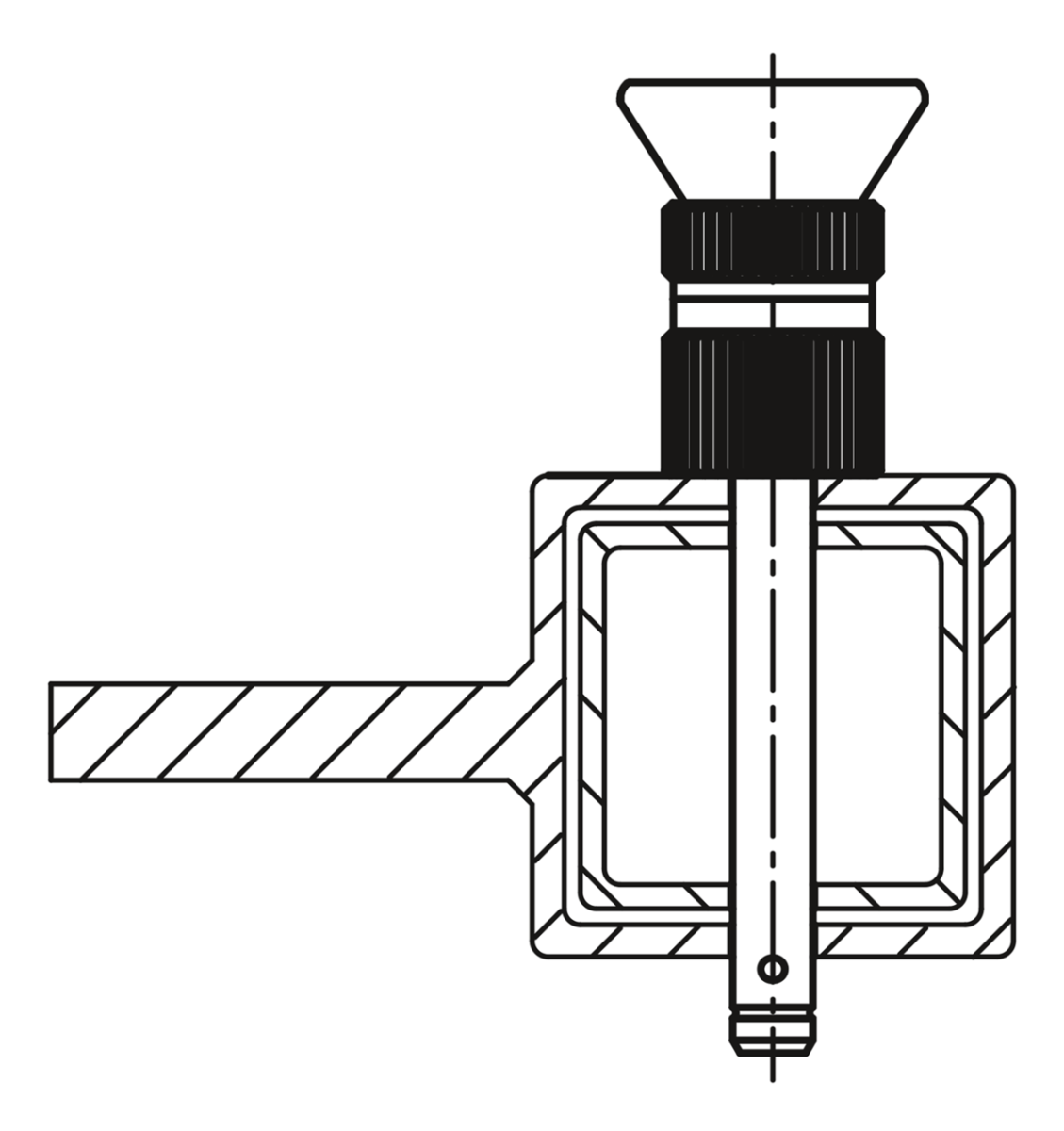

The length range is infinitely adjustable using the locknut and adjusting nut. This enables play-free positioning on the workpiece.
Shear force double shear (F) = S · τ aB max.
The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.
Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D
| D1 | D2 | D3 | L | L1 | L2 | L3 | L5 | Receiving
hole
H11 | Shearing force
double shear
max.kN | CAD | Acc. | Price | Order |
|---|
| K1299.03516050 | 35 | 16 | 19 | 26 | 38-50 | 13,1 | 39,5 | 12 | 51,1-63,1 | 16 | 153 |  | | 91.49 $ (USD) | | | K1299.02508035 | 25 | 8 | 9,5 | 17 | 25-35 | 7,8 | 33 | 10 | 32,8-42,8 | 8 | 38 | | | 52.19 $ (USD) | | | K1299.03512025 | 35 | 12 | 14,5 | 26 | 13-25 | 9,9 | 39,5 | 12 | 22,9-34,9 | 12 | 86 | | | 64.28 $ (USD) | | | K1299.03516070 | 35 | 16 | 19 | 26 | 58-70 | 13,1 | 39,5 | 12 | 71,1-83,1 | 16 | 153 | | | 96.21 $ (USD) | | | K1299.01905020 | 19 | 5 | 5,5 | 13,5 | 12-20 | 5,9 | 25 | 8 | 17,9-25,9 | 5 | 15 | | | 46.59 $ (USD) | | | K1299.01906045 | 19 | 6 | 6,85 | 13,5 | 37-45 | 6,8 | 25 | 8 | 43,8-51,8 | 6 | 22 | | | 46.82 $ (USD) | | | K1299.03512080 | 35 | 12 | 14,5 | 26 | 68-80 | 9,9 | 39,5 | 12 | 77,9-89,9 | 12 | 86 | | | 69.32 $ (USD) | | | K1299.03512070 | 35 | 12 | 14,5 | 26 | 58-70 | 9,9 | 39,5 | 12 | 67,9-79,9 | 12 | 86 | | | 67.65 $ (USD) | | | K1299.03512035 | 35 | 12 | 14,5 | 26 | 23-35 | 9,9 | 39,5 | 12 | 32,9-44,9 | 12 | 86 | | | 65.94 $ (USD) | | | K1299.02508050 | 25 | 8 | 9,5 | 17 | 40-50 | 7,8 | 33 | 10 | 47,8-57,8 | 8 | 38 | | | 52.19 $ (USD) | | | K1299.02510030 | 25 | 10 | 12 | 17 | 20-30 | 8,9 | 33 | 10 | 28,9-38,9 | 10 | 60 | | | 62.84 $ (USD) | | | K1299.02510050 | 25 | 10 | 12 | 17 | 40-50 | 8,9 | 33 | 10 | 48,9-58,9 | 10 | 60 | | | 62.84 $ (USD) | | | K1299.02510040 | 25 | 10 | 12 | 17 | 30-40 | 8,9 | 33 | 10 | 38,9-48,9 | 10 | 60 | | | 62.84 $ (USD) | | | K1299.03516060 | 35 | 16 | 19 | 26 | 48-60 | 13,1 | 39,5 | 12 | 61,1-73,1 | 16 | 153 | | | 96.21 $ (USD) | | | K1299.01906035 | 19 | 6 | 6,85 | 13,5 | 27-35 | 6,8 | 25 | 8 | 33,8-41,8 | 6 | 22 | | | 46.82 $ (USD) | | | K1299.03516035 | 35 | 16 | 19 | 26 | 23-35 | 13,1 | 39,5 | 12 | 36,1-48,1 | 16 | 153 | | | 91.49 $ (USD) | | | K1299.03512040 | 35 | 12 | 14,5 | 26 | 28-40 | 9,9 | 39,5 | 12 | 37,9-49,9 | 12 | 86 | | | 65.94 $ (USD) | | | K1299.03512060 | 35 | 12 | 14,5 | 26 | 48-60 | 9,9 | 39,5 | 12 | 57,9-69,9 | 12 | 86 | | | 67.65 $ (USD) | | | K1299.01906050 | 19 | 6 | 6,85 | 13,5 | 42-50 | 6,8 | 25 | 8 | 48,8-56,8 | 6 | 22 | | | 46.82 $ (USD) | | | K1299.01906015 | 19 | 6 | 6,85 | 13,5 | 7-15 | 6,8 | 25 | 8 | 13,8-21,8 | 6 | 22 | | | 46.82 $ (USD) | | | K1299.02508030 | 25 | 8 | 9,5 | 17 | 20-30 | 7,8 | 33 | 10 | 27,8-37,8 | 8 | 38 | | | 52.19 $ (USD) | | | K1299.02510060 | 25 | 10 | 12 | 17 | 50-60 | 8,9 | 33 | 10 | 58,9-68,9 | 10 | 60 | | | 64.71 $ (USD) | | | K1299.01905015 | 19 | 5 | 5,5 | 13,5 | 7-15 | 5,9 | 25 | 8 | 12,9-20,9 | 5 | 15 | | | 46.59 $ (USD) | | | K1299.03512045 | 35 | 12 | 14,5 | 26 | 33-45 | 9,9 | 39,5 | 12 | 42,9-54,9 | 12 | 86 | | | 65.94 $ (USD) | | | K1299.02508040 | 25 | 8 | 9,5 | 17 | 30-40 | 7,8 | 33 | 10 | 37,8-47,8 | 8 | 38 | | | 52.19 $ (USD) | | | K1299.02508020 | 25 | 8 | 9,5 | 17 | 10-20 | 7,8 | 33 | 10 | 17,8-27,8 | 8 | 38 | | | 49.50 $ (USD) | | | K1299.01905030 | 19 | 5 | 5,5 | 13,5 | 22-30 | 5,9 | 25 | 8 | 27,9-35,9 | 5 | 15 | | | 47.84 $ (USD) | | | K1299.03512050 | 35 | 12 | 14,5 | 26 | 38-50 | 9,9 | 39,5 | 12 | 47,9-59,9 | 12 | 86 | | | 65.94 $ (USD) | | | K1299.02508025 | 25 | 8 | 9,5 | 17 | 15-25 | 7,8 | 33 | 10 | 22,8-32,8 | 8 | 38 | | | 49.50 $ (USD) | | | K1299.01906040 | 19 | 6 | 6,85 | 13,5 | 32-40 | 6,8 | 25 | 8 | 38,8-46,8 | 6 | 22 | | | 46.82 $ (USD) | | | K1299.02510045 | 25 | 10 | 12 | 17 | 35-45 | 8,9 | 33 | 10 | 43,9-53,9 | 10 | 60 | | | 62.84 $ (USD) | | | K1299.01905025 | 19 | 5 | 5,5 | 13,5 | 17-25 | 5,9 | 25 | 8 | 22,9-30,9 | 5 | 15 | | | 46.59 $ (USD) | | | K1299.03516045 | 35 | 16 | 19 | 26 | 33-45 | 13,1 | 39,5 | 12 | 46,1-58,1 | 16 | 153 | | | 91.49 $ (USD) | | | K1299.01906020 | 19 | 6 | 6,85 | 13,5 | 12-20 | 6,8 | 25 | 8 | 18,8-26,8 | 6 | 22 | | | 46.82 $ (USD) | | | K1299.03516040 | 35 | 16 | 19 | 26 | 28-40 | 13,1 | 39,5 | 12 | 41,1-53,1 | 16 | 153 | | | 91.49 $ (USD) | | | K1299.03516030 | 35 | 16 | 19 | 26 | 18-30 | 13,1 | 39,5 | 12 | 31,1-43,1 | 16 | 153 | | | 91.49 $ (USD) | | | K1299.03512030 | 35 | 12 | 14,5 | 26 | 18-30 | 9,9 | 39,5 | 12 | 27,9-39,9 | 12 | 86 | | | 65.94 $ (USD) | | | K1299.03516080 | 35 | 16 | 19 | 26 | 68-80 | 13,1 | 39,5 | 12 | 81,1-93,1 | 16 | 153 | | | 100.13 $ (USD) | | | K1299.02510020 | 25 | 10 | 12 | 17 | 10-20 | 8,9 | 33 | 10 | 18,9-28,9 | 10 | 60 | | | 61.14 $ (USD) | | | K1299.01906010 | 19 | 6 | 6,85 | 13,5 | 2-10 | 6,8 | 25 | 8 | 8,8-16,8 | 6 | 22 | | | 46.82 $ (USD) | | | K1299.02510025 | 25 | 10 | 12 | 17 | 15-25 | 8,9 | 33 | 10 | 23,9-33,9 | 10 | 60 | | | 61.14 $ (USD) | | | K1299.02508045 | 25 | 8 | 9,5 | 17 | 35-45 | 7,8 | 33 | 10 | 42,8-52,8 | 8 | 38 | | | 52.19 $ (USD) | | | K1299.01906025 | 19 | 6 | 6,85 | 13,5 | 17-25 | 6,8 | 25 | 8 | 23,8-31,8 | 6 | 22 | | | 46.82 $ (USD) | | | K1299.01906030 | 19 | 6 | 6,85 | 13,5 | 22-30 | 6,8 | 25 | 8 | 28,8-36,8 | 6 | 22 | | | 46.82 $ (USD) | | | K1299.02510035 | 25 | 10 | 12 | 17 | 25-35 | 8,9 | 33 | 10 | 33,9-43,9 | 10 | 60 | | | 62.84 $ (USD) | | | K1299.01905010 | 19 | 5 | 5,5 | 13,5 | 2-10 | 5,9 | 25 | 8 | 7,9-15,9 | 5 | 15 | | | 46.59 $ (USD) | |
