Ball lock pins stainless steel, with head-end lock, style A
K1414_A

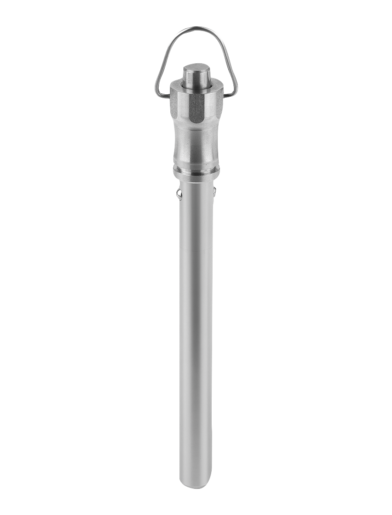

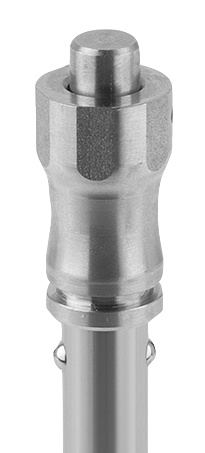

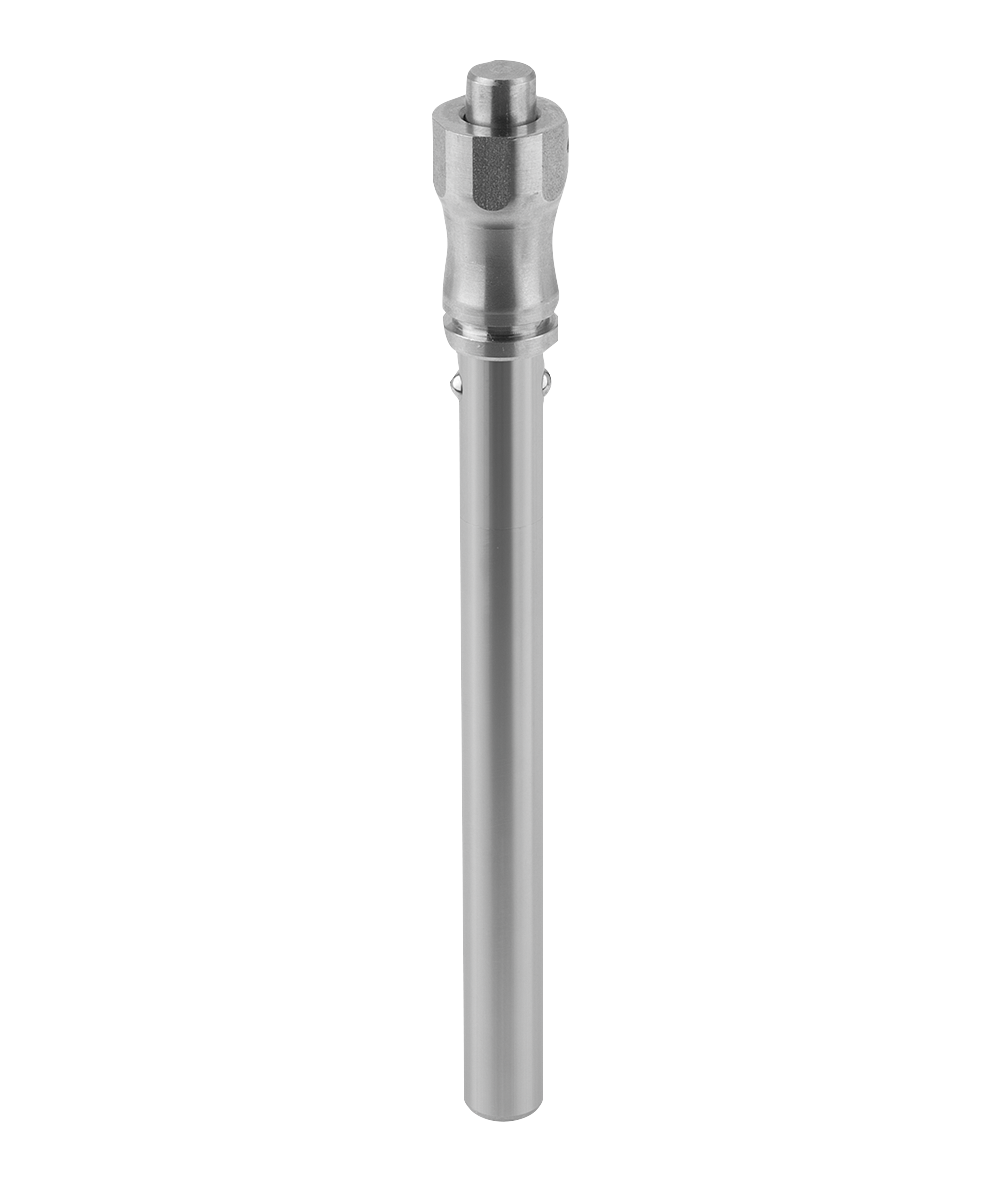

Ball lock pins stainless steel, with head-end lock, style A

go back

Item description/product images

DescriptionMaterial:Grip and push button stainless steel 1.4305 (AISI 303 equivalent).
Pin stainless steel 1.4305 (AISI 303 equivalent).
Balls stainless steel 1.4125 (AISI 440C equivalent).
Compression spring stainless steel 1.4310 (AISI 301 equivalent).
Version:Bright.Note:Ball lock pins are used for easy fastening or joining of components.

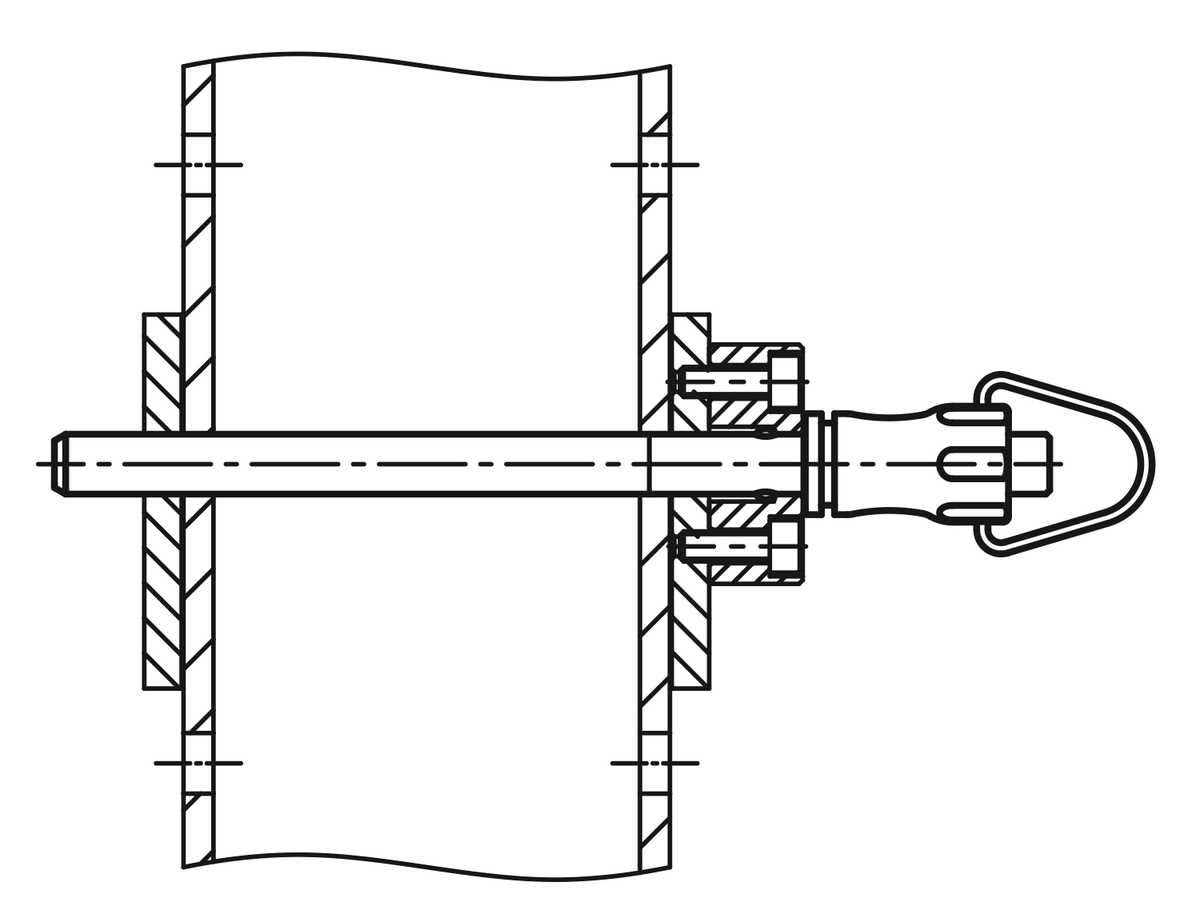

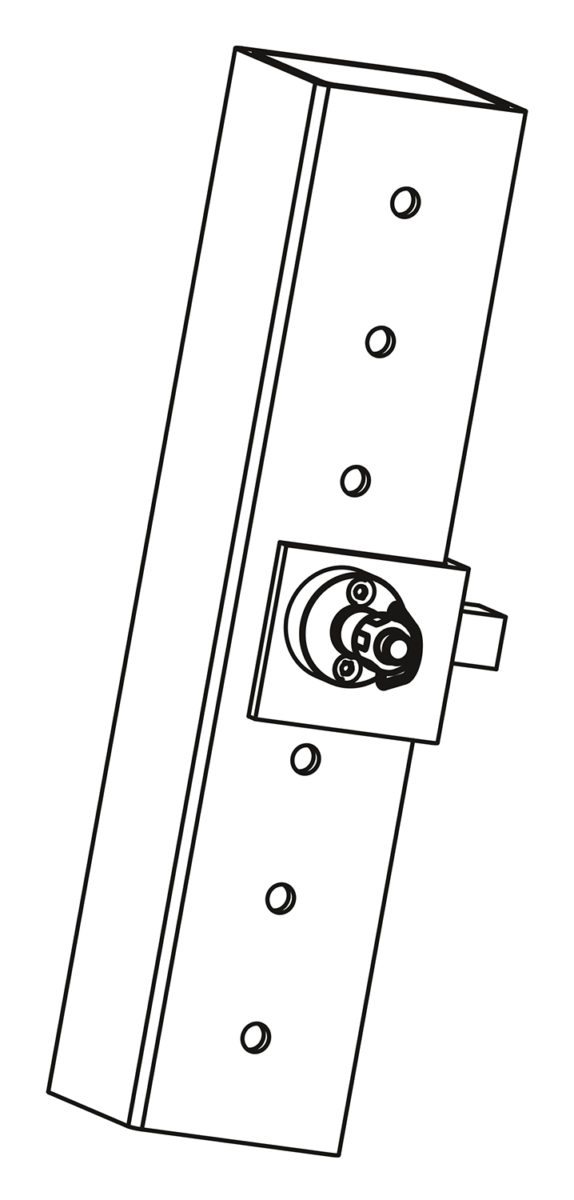

The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for instyleation purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.
Benefits:Wide connections possible.
The pin length does not need to be coordinated with the component width.
On request:Other pin lengths.Accessory:Locating bushings for ball lock pins with head-end lock K1416.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1414_A Ball lock pins stainless steel, with head-end lock, style A 232 kB

Drawings

Ball lock pins stainless steel, with head-end lock, style A

Item selection/filter

Order No.styleD

D1D2D3D5LL1L2L5SWReceiving
hole
H11
Shearing force
double shear
max.kN
CADAcc.PriceOrder
K1414.001205050A11,555,5101,5347255011510 33.62 $ (USD)
K1414.001205100A11,555,5101,53972510011510 34.80 $ (USD)
K1414.001205150A11,555,5101,531472515011510 35.04 $ (USD)
K1414.001206050A11,566,85102347255011614 34.37 $ (USD)
K1414.001206100A11,566,851023972510011614 35.58 $ (USD)
K1414.001206150A11,566,8510231472515011614 35.88 $ (USD)
K1414.001508100A15,589,513,533,596,53310015826 37.02 $ (USD)
K1414.001508150A15,589,513,533,5146,53315015826 37.71 $ (USD)
K1414.001508200A15,589,513,533,5196,53320015826 38.66 $ (USD)
K1414.001510100A15,5101213,543,596,533100151040 38.24 $ (USD)
K1414.001510150A15,5101213,543,5146,533150151040 39.51 $ (USD)
K1414.001510200A15,5101213,543,5196,533200151040 40.25 $ (USD)
K1414.002112150A221214,5204,53,5146,539,5150211257 44.00 $ (USD)
K1414.002112200A221214,5204,53,5196,539,5200211257 45.56 $ (USD)
K1414.002112250A221214,5204,53,5246,539,5250211257 46.47 $ (USD)
K1414.002116150A221619206,5414639,51502116100 48.08 $ (USD)
K1414.002116200A221619206,5419639,52002116100 50.84 $ (USD)
K1414.002116250A221619206,5424639,52502116100 52.35 $ (USD)
