Ball lock pins, stainless steel, with head-end lock, style B
K1414_B

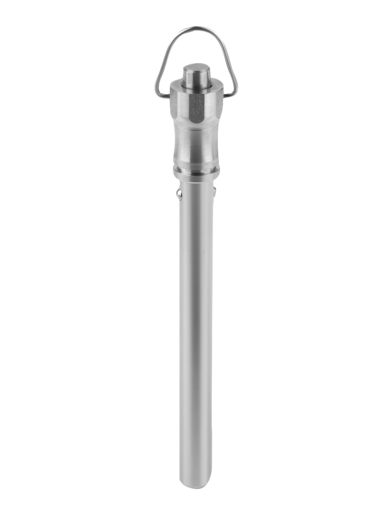

Ball lock pins, stainless steel, with head-end lock, style B

go back

Item description/product images

DescriptionMaterial:Grip and push button 1.4305 (AISI 303 equivalent) stainless steel.
Pin 1.4305 (AISI 303 equivalent) stainless steel.
Balls 1.4125 (AISI 440C equivalent) stainless steel.
Spring and hanger 1.4310 (AISI 301 equivalent) stainless steel wire.
Version:Bright.Note:Ball lock pins are used for easy fastening or joining of components.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for instyleation purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.
Benefits:Wide connections possible.
The pin length does not need to be coordinated with the component width.
On request:Other pin lengths.Accessory:Adapter bushings for ball lock pins with head lock K1416.
For style B:
Safety spiral cable K0367
Retaining cable with eyelet K0367
Key ring K0367
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1414_B Ball lock pins, stainless steel, with head-end lock, style B 244 kB

Drawings

Ball lock pins, stainless steel, with head-end lock, style B

Item selection/filter

Order No.styleD

D1D2D3D4D5LL1L2L3L4L5SWReceiving
hole
H11
Shearing force
double shear
max.kN
CADAcc.PriceOrder
K1414.101205050B11,555,51018,31,53472534,616,65011510 34.71 $ (USD)
K1414.101205100B11,555,51018,31,53972534,616,610011510 35.87 $ (USD)
K1414.101205150B11,555,51018,31,531472534,616,615011510 36.15 $ (USD)
K1414.101206050B11,566,851018,323472534,616,65011614 35.46 $ (USD)
K1414.101206100B11,566,851018,323972534,616,610011614 36.63 $ (USD)
K1414.101206150B11,566,851018,3231472534,616,615011614 36.99 $ (USD)
K1414.101508100B15,589,513,52433,596,53346,722,710015826 38.10 $ (USD)
K1414.101508150B15,589,513,52433,5146,53346,722,715015826 38.78 $ (USD)
K1414.101508200B15,589,513,52433,5196,53346,722,720015826 39.74 $ (USD)
K1414.101510100B15,5101213,52443,596,53346,722,7100151040 39.32 $ (USD)
K1414.101510150B15,5101213,52443,5146,53346,722,7150151040 40.62 $ (USD)
K1414.101510200B15,5101213,52443,5196,53346,722,7200151040 41.33 $ (USD)
K1414.102112150B221214,520334,53,5146,539,559,330,3150211257 45.06 $ (USD)
K1414.102112200B221214,520334,53,5196,539,559,330,3200211257 46.59 $ (USD)
K1414.102112250B221214,520334,53,5246,539,559,330,3250211257 47.52 $ (USD)
K1414.102116150B22161920336,5414639,559,330,31502116100 49.17 $ (USD)
K1414.102116200B22161920336,5419639,559,330,32002116100 51.90 $ (USD)
K1414.102116250B22161920336,5424639,559,330,32502116100 53.43 $ (USD)
