"Actima" Clamping Device with through hole

"Actima" Clamping Device with through hole

go back

Item description/product images

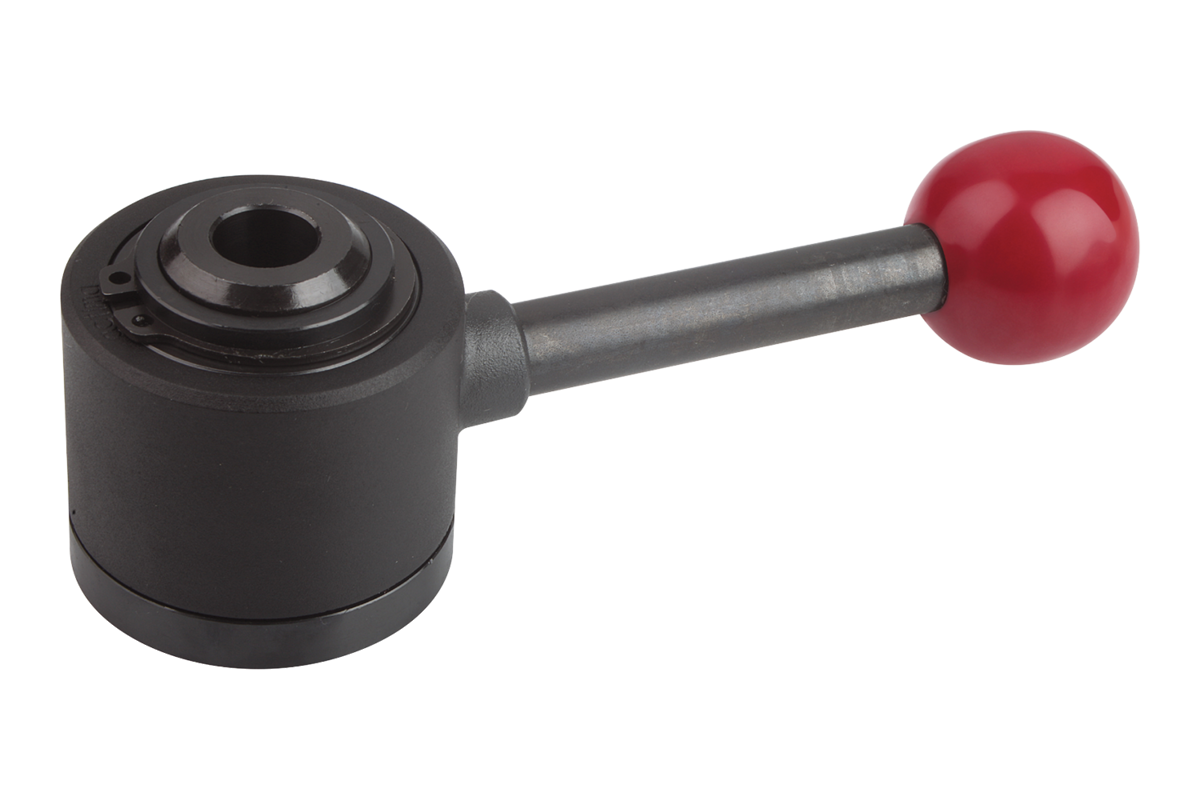

DescriptionMaterial, version:Steel black oxide finish;
housing in black thermoplastic;
ball knob in red thermoset PF 31.

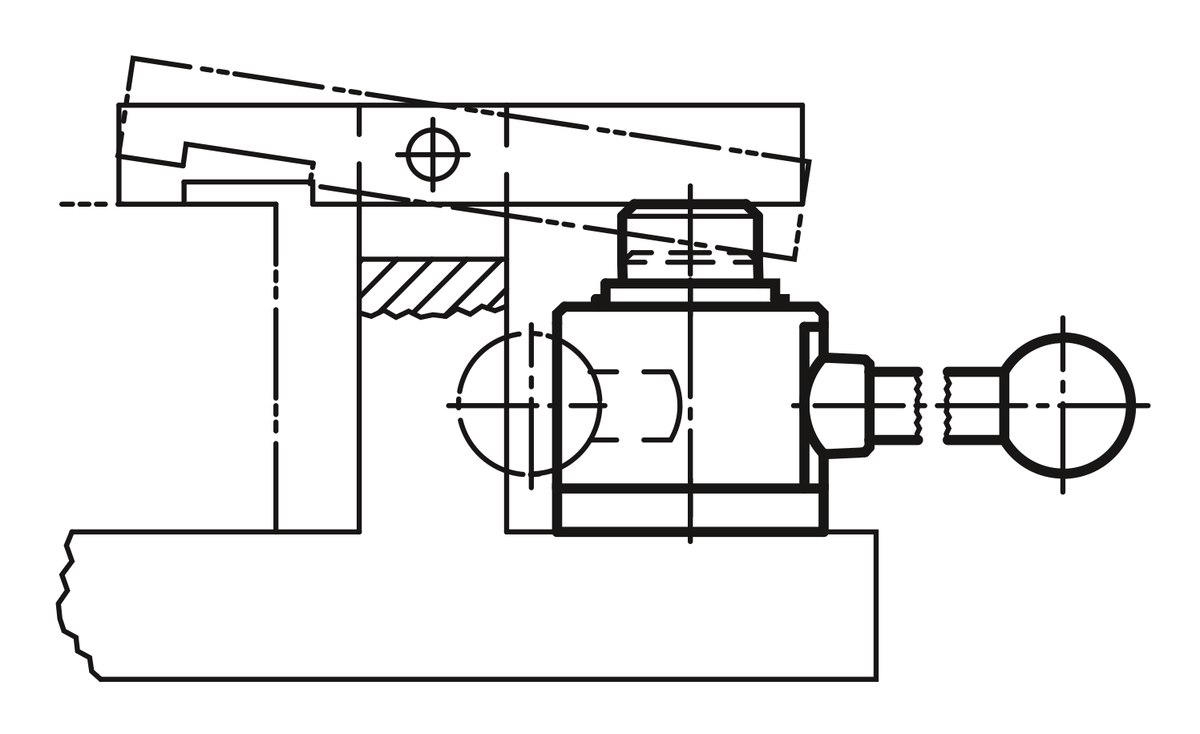

Note:The travel path is 10 mm. Self-locking occurs in any position during the final 2 mm of clamp travel, so workpieces with tolerances of up to 1.5 mm can be safely clamped. The Actima Clamping Device can be mounted in any horizontal or vertical position.
Standard parts enable further applications and are available as optional accessories.
All parts of the cam system subject to heavy loads are case-hardened (thrust sleeve and accessories only if specified).
The maximum permissible clamping force is approximately 4905 N.
Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0020_B "Actima" Clamping Device with through hole 197 kB


"Actima" Clamping Device with through hole

Item selection/filter

Item No.


K0020.30right-hand / thrust 317.89 $ (USD)
K0020.35right-hand / pull 317.89 $ (USD)
K0020.40left-hand / thrust 317.89 $ (USD)
K0020.45left-hand / pull 317.89 $ (USD)
