Clamping cams

K1694

Clamping cams

Products
- Clamping devices
  - Clamping cams

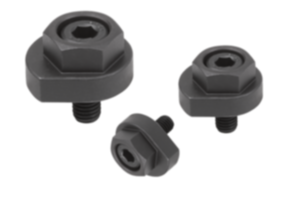

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidized.Assembly:Benefits:Drawing reference:

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1694 Clamping cams

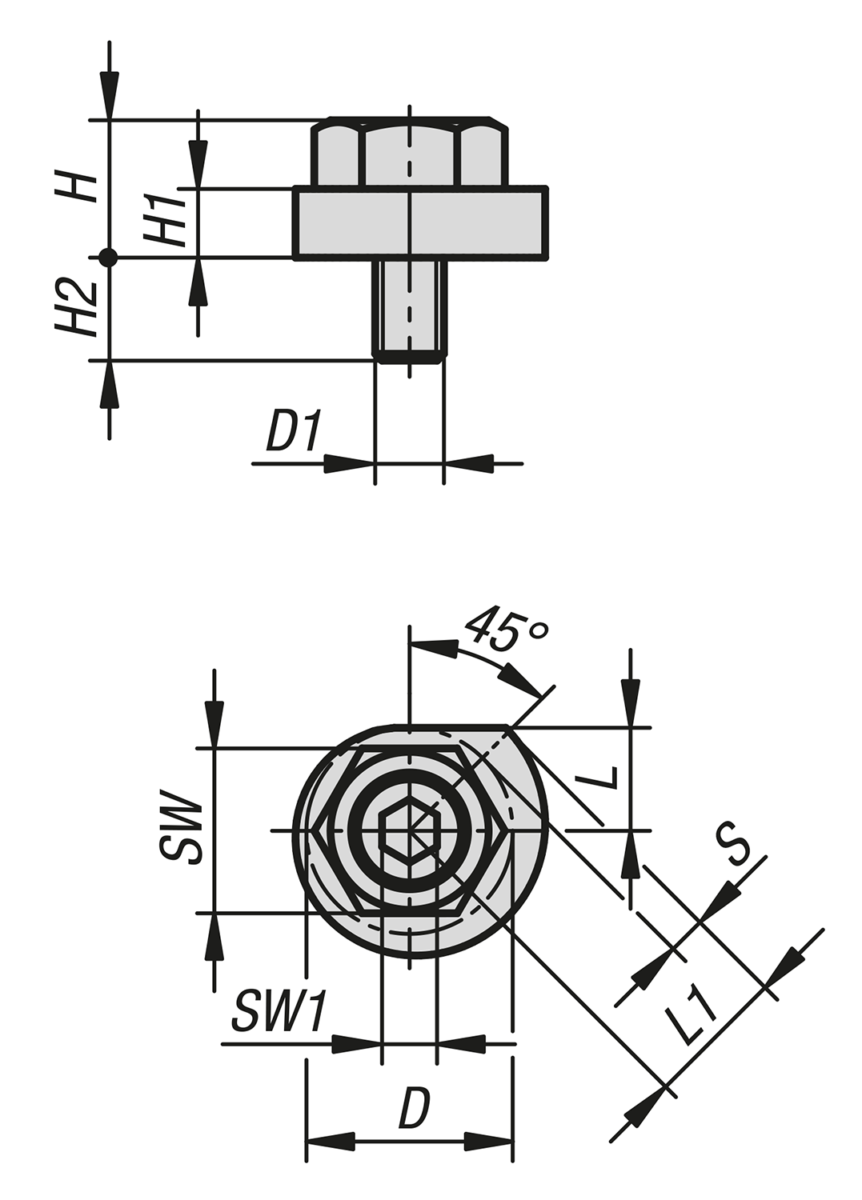

Drawings

Clamping cams

Item selection/filter

Order No.	D	D1	H	H1	H2	L	L1	SW	SW1	Clamping force kN	Travel S	Tightening torque max. Nm	CAD	Acc.	Price	Order
K1694.08	24	M8	16	8	12	12	16,4	19	6	5,2	4,4	50			62.38 $ (USD)
K1694.10	30	M10	20	10	15	15	20,5	24	8	8	5,5	75			73.39 $ (USD)
K1694.12	34	M12	24	12	18	17	23,2	27	10	9,3	6,2	90			88.99 $ (USD)
