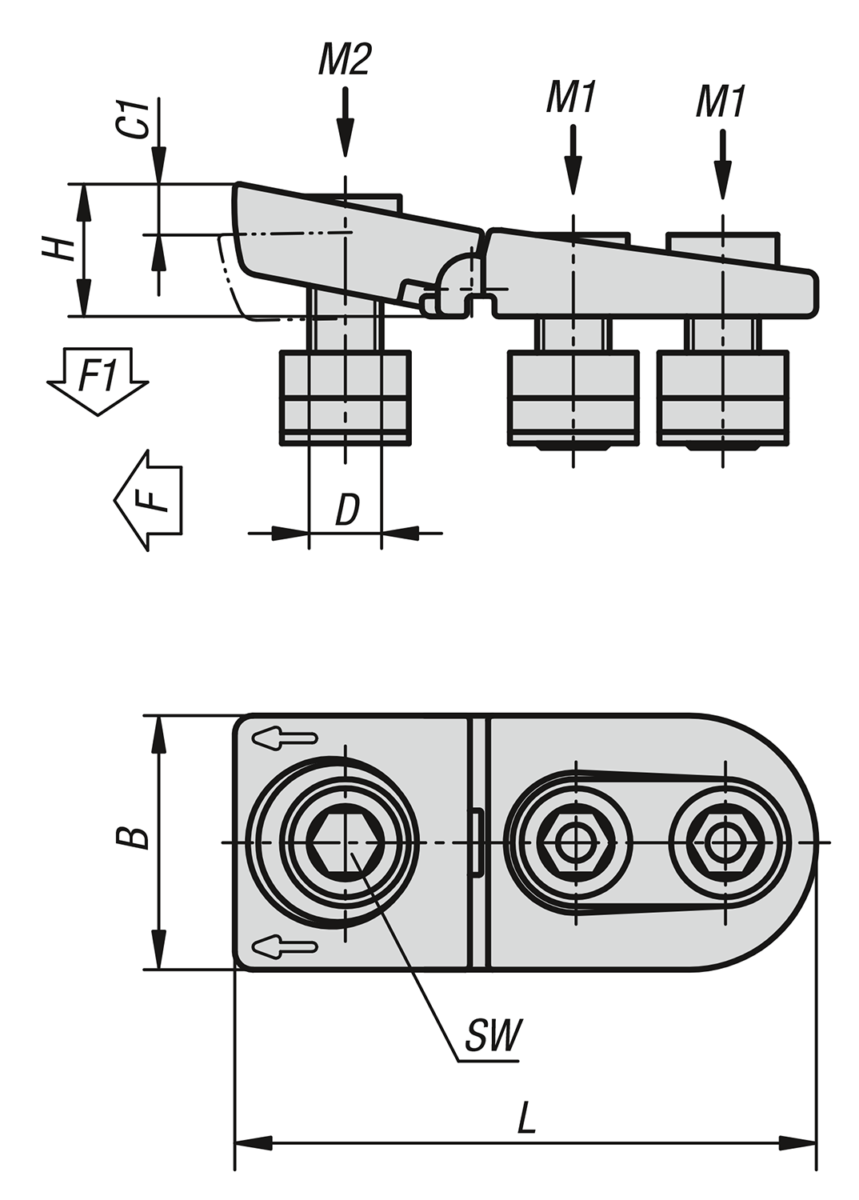

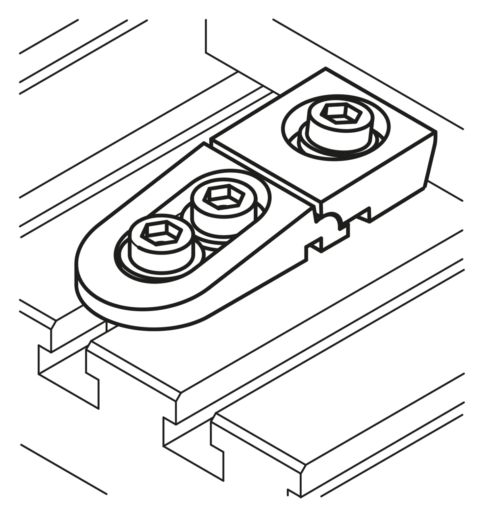

DescriptionMaterial:Clamping element (front) steel 1.7225. Retaining element (rear) steel 1.0503. Cap screws and slot keys grade 8.8 steel.Version:Body parts hardened and nickel-plated. Fasteners black oxidized.Note:Particularly low workpieces can be clamped using the T-slot clamps. The positive down force helps to hold the workpiece down on the machine table. Application:1. Slide the clamp in the machine table T-slot up to the workpiece. 2. Tighten the fastening screws with the appropriate torque. 3. Tighten the clamping screw to clamp the workpiece in place.Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
