Handwheels disc, aluminum, with revolving cylinder grip - inch

go back

Products
- Handwheels
  - Disc Handwheels
    - Handwheels disc aluminum - inch
      - Handwheels disc, aluminum, with revolving cylinder grip - inch

Item description/product images

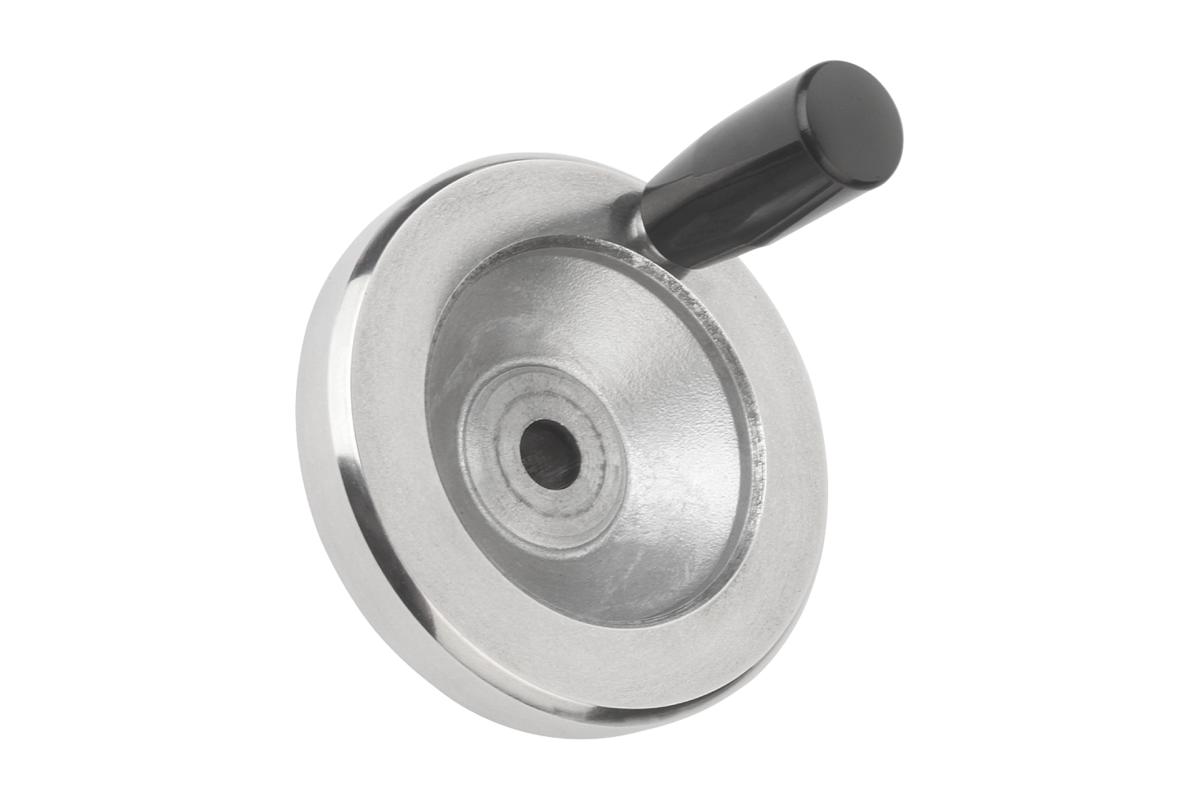

DescriptionMaterial:Disc handwheel aluminum.
Cylinder grip black thermoset PF 31-DIN 7708.
Hub electro zinc-plated steel.Version:Wheel rim turned and polished.
On request:Hubs with square socket or powder-coated handwheels.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0161 Inch Disc Handwheels aluminum planed, with revolving handle, inch

167 kB

Datasheet K0161_MDG inch Handwheels disc, aluminum, with revolving cylinder grip - inch

219 kB

Drawings

Item selection/filter

Item No.	D1	D2	D3	L1	L3	Revolving cylinder grip	Price
K0161.4080XCN	80	0,312	26	16	31	ø18 x M6 x 40	49.39 $ (USD)
K0161.4080XCO	80	0,375	26	16	31	ø18 x M6 x 40	49.39 $ (USD)
K0161.4100XCO	100	0,375	31	17	34	ø18 x M6 x 40	53.60 $ (USD)
K0161.4100XCP	100	0,5	31	17	34	ø18 x M6 x 40	53.60 $ (USD)
K0161.4125XCO	125	0,375	30	18	37	ø22 x M8 x 56	65.68 $ (USD)
K0161.4125XCP	125	0,5	30	18	37	ø22 x M8 x 56	65.68 $ (USD)
K0161.4140XCP	140	0,5	34	19	34	ø22 x M8 x 56	71.48 $ (USD)
K0161.4140XCQ	140	0,625	34	19	34	ø22 x M8 x 56	71.48 $ (USD)
K0161.4160XCP	160	0,5	40	20	40	ø26 x M10 x 80	92.85 $ (USD)
K0161.4160XCQ	160	0,625	40	20	40	ø26 x M10 x 80	92.85 $ (USD)
K0161.4200XCQ	200	0,625	50	24	46	ø26 x M10 x 80	109.49 $ (USD)
K0161.4200XCR	200	0,75	50	24	46	ø26 x M10 x 80	109.49 $ (USD)
K0161.4250XCR	250	0,75	50	28	49	ø31 x M12 x 102	176.16 $ (USD)
K0161.4250XCV	250	0,875	50	28	49	ø31 x M12 x 102	176.16 $ (USD)
