Plastic cylindrical grips, fold-away - inch
K1469 inch

Plastic cylindrical grips, fold-away - inch

go back

Item description/product images

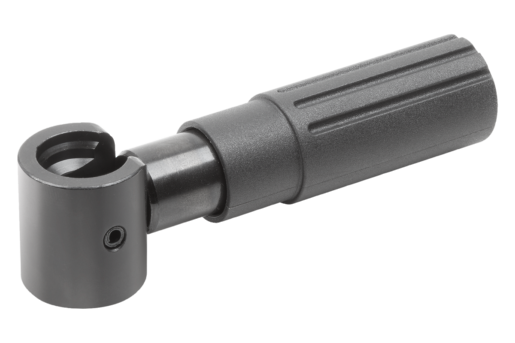

DescriptionProduct description:Cylindrical grips are supplied assembled and can be screwed onto handwheels, crank handles, etc.
The grooves and conical shape ensure that the cylindrical grips have optimised haptics and good grip.
The fold-down grip prevents protruding edges, which also minimizes the risk of injury.
Material:Grip, thermoplastic.
Center pin, steel.
Version:Grip, black.
Steel parts, black oxidized.
Note:The hole D3 is used for positioning.Benefits:Optimised haptics and good grip
Protruding edges prevented
Grips for handwheels and cranks
Various thread sizes
NOVO grip KIPP design
Special features:
 RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1469 inch Plastic cylindrical grips, fold-away - inch 252 kB

Drawings

Plastic cylindrical grips, fold-away - inch

Item selection/filter

Order No.Component
material
SizeAA1D

D1D2D3HLL1L3TCADAcc.PriceOrder
K1469.1AEsteel184,38-3214132,514,53540474,5 25.66 $ (USD)
K1469.2A1steel2105,310-3216163,5184449584,5 28.18 $ (USD)
K1469.3A2steel312,56,51/4-2020204,522,55559,571,56 32.32 $ (USD)
K1469.4A3steel41695/16-1825265,5297083986,5 37.04 $ (USD)
