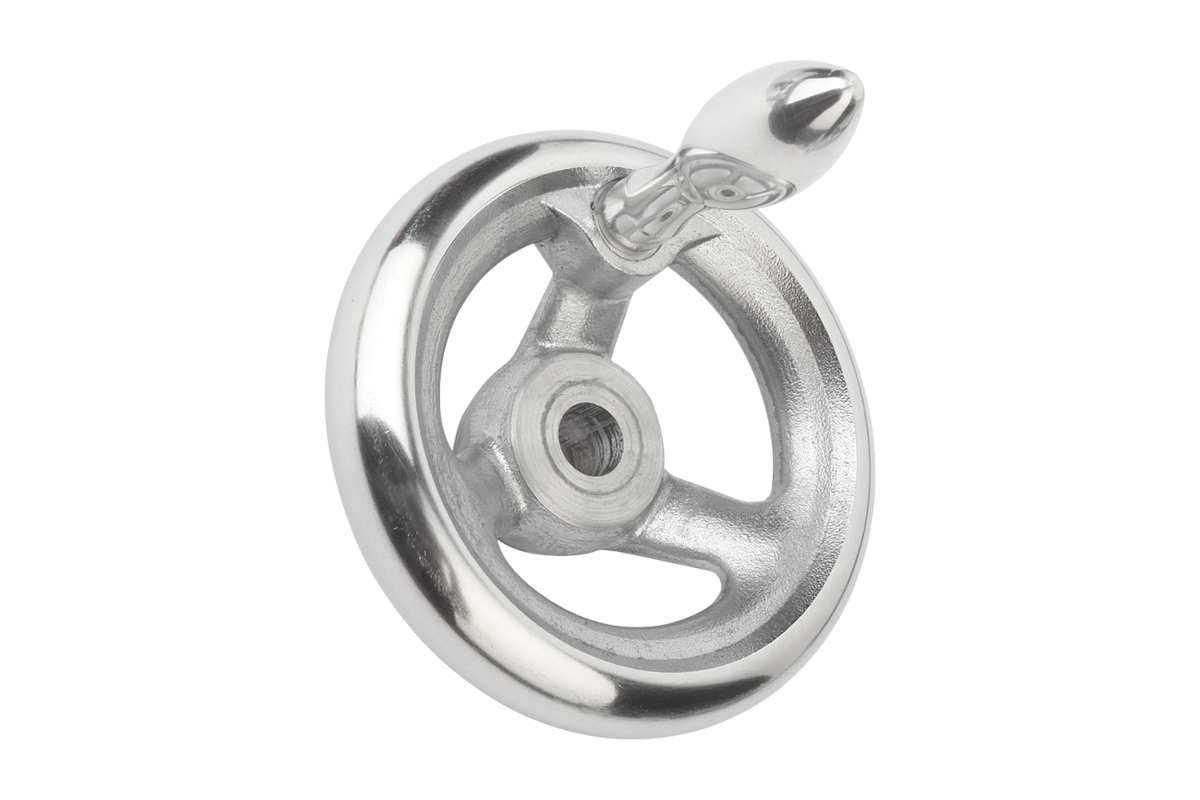

K0160_MFG inchHandwheels DIN 950, aluminum, with fixed grip - inch |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handwheel aluminum. Fixed grip aluminum, center pin black oxidized steel. Revolving grip aluminum, center pin trivalent blue passivated steel.Version:Wheel rim turned and polished. On request:Hubs with square socket or powder-coated handwheels.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No. | D1 | D2 | D3 | L1 | L3 | No. of spokes | fixed grip DIN 39 Style E | CAD | Acc. | Price | Order |
---|
K0160.2080XCN | 80 | 0,312 | 25 | 16 | 29 | 3 | ø16 x M6 x 50 | | | 39.24 $ (USD) | | K0160.2080XCO | 80 | 0,375 | 25 | 16 | 29 | 3 | ø16 x M6 x 50 | | | 39.24 $ (USD) | | K0160.2100XCO | 100 | 0,375 | 29 | 17 | 33 | 3 | ø16 x M6 x 50 | | | 43.44 $ (USD) | | K0160.2100XCP | 100 | 0,5 | 29 | 17 | 33 | 3 | ø16 x M6 x 50 | | | 43.44 $ (USD) | | K0160.2125XCO | 125 | 0,375 | 31 | 18 | 36 | 3 | ø20 x M8 x 64 | | | 54.22 $ (USD) | | K0160.2125XCP | 125 | 0,5 | 31 | 18 | 36 | 3 | ø20 x M8 x 64 | | | 54.22 $ (USD) | | K0160.2140XCP | 140 | 0,5 | 36 | 19 | 39 | 3 | ø20 x M8 x 64 | | | 60.37 $ (USD) | | K0160.2140XCQ | 140 | 0,625 | 36 | 19 | 39 | 3 | ø20 x M8 x 64 | | | 60.37 $ (USD) | | K0160.2160XCP | 160 | 0,5 | 36 | 20 | 40 | 3 | ø25 x M10 x 80 | | | 71.86 $ (USD) | | K0160.2160XCQ | 160 | 0,625 | 36 | 20 | 40 | 3 | ø25 x M10 x 80 | | | 71.86 $ (USD) | | K0160.2180XCP | 180 | 0,5 | 37 | 22 | 43 | 3 | ø25 x M10 x 80 | | | 80.81 $ (USD) | | K0160.2180XCQ | 180 | 0,625 | 37 | 22 | 43 | 3 | ø25 x M10 x 80 | | | 80.81 $ (USD) | | K0160.2200XCQ | 200 | 0,625 | 43 | 24 | 45 | 3 | ø25 x M10 x 80 | | | 93.37 $ (USD) | | K0160.2200XCR | 200 | 0,75 | 43 | 24 | 45 | 3 | ø25 x M10 x 80 | | | 93.37 $ (USD) | | K0160.2250XCR | 250 | 0,75 | 49 | 28 | 50 | 5 | ø32 x M12 x 100 | | | 146.51 $ (USD) | | K0160.2250XCV | 250 | 0,875 | 49 | 28 | 50 | 5 | ø32 x M12 x 100 | | | 146.51 $ (USD) | | K0160.2315XCV | 315 | 0,875 | 54 | 33 | 56 | 5 | ø32 x M12 x 100 | | | 210.85 $ (USD) | | K0160.2315XCS | 315 | 1 | 54 | 33 | 56 | 5 | ø32 x M12 x 100 | | | 210.85 $ (USD) | | K0160.2400XCS | 400 | 1 | 65 | 38 | 63 | 5 | ø36 x M16 x 112 | | | 382.98 $ (USD) | | K0160.2500XCS | 500 | 1 | 79 | 45 | 72 | 5 | ø36 x M16 x 112 | | | 597.42 $ (USD) | |
