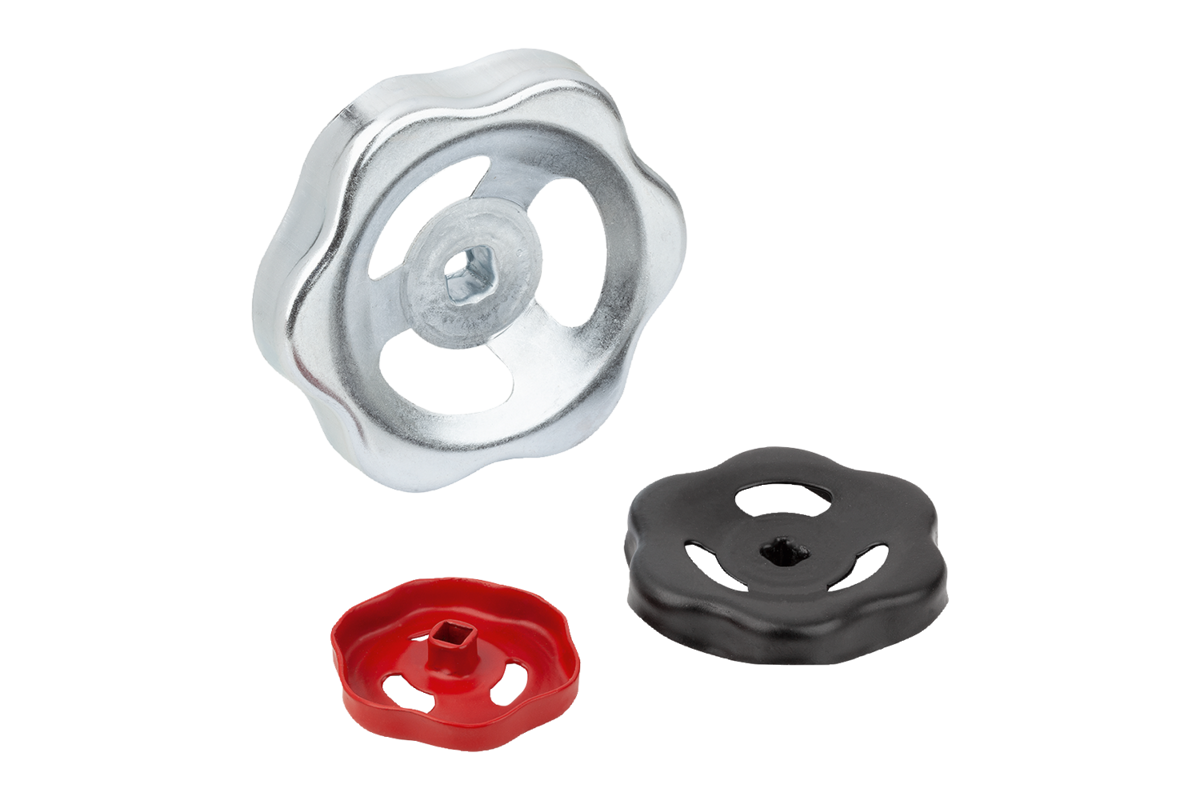

K1661Hand wheels, steel, stamped |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Powder-coated black RAL 9005, red RAL 3000 or trivalent blue passivated.Note:Especially suitable for stop valves. The handwheels are made from a single piece. The handwheel is strengthened in the hub area using a special forming process. The tapered hub allows easy mounting and ensures secure seating on the square bar.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
color | Surface finish
body | D1
| L1 | L3 | V | V1 | V2 | Number of
spokes | CAD | Acc. | Price | Order |
|---|
| K1661.050060 | jet black RAL 9005 | - | 50 | 8,5 | 12 | 6 | 5,9 | 6,15 | 3 |  | | 0.71 $ (USD) | | | K1661.050070 | jet black RAL 9005 | - | 50 | 8,5 | 12 | 7 | 6,9 | 7,15 | 3 | | | 0.71 $ (USD) | | | K1661.060060 | jet black RAL 9005 | - | 60 | 8,5 | 12 | 6 | 5,9 | 6,15 | 3 | | | 0.95 $ (USD) | | | K1661.060070 | jet black RAL 9005 | - | 60 | 8,5 | 12 | 7 | 6,9 | 7,15 | 3 | | | 0.95 $ (USD) | | | K1661.070070 | jet black RAL 9005 | - | 69 | 10 | 15 | 7 | 6,9 | 7,15 | 3 | | | 1.31 $ (USD) | | | K1661.070080 | jet black RAL 9005 | - | 69 | 10 | 15 | 8 | 7,9 | 8,15 | 3 | | | 1.31 $ (USD) | | | K1661.080080 | jet black RAL 9005 | - | 78 | 11 | 16 | 8 | 7,9 | 8,15 | 3 | | | 1.57 $ (USD) | | | K1661.080090 | jet black RAL 9005 | - | 78 | 11 | 16 | 9 | 8,9 | 9,15 | 3 | | | 1.57 $ (USD) | | | K1661.090090 | jet black RAL 9005 | - | 89 | 11 | 16 | 9 | 8,9 | 9,15 | 3 | | | 1.94 $ (USD) | | | K1661.100090 | jet black RAL 9005 | - | 98 | 13 | 20 | 9 | 8,9 | 9,15 | 3 | | | 2.58 $ (USD) | | | K1661.100100 | jet black RAL 9005 | - | 98 | 13 | 20 | 10 | 9,9 | 10,15 | 3 | | | 2.58 $ (USD) | | | K1661.110100 | jet black RAL 9005 | - | 108 | 15 | 23 | 10 | 9,9 | 10,15 | 3 | | | 3.11 $ (USD) | | | K1661.130120 | jet black RAL 9005 | - | 130 | 15 | 23 | 12 | 11,9 | 12,15 | 3 | | | 4.49 $ (USD) | | | K1661.050061 | flame red RAL 3000 | - | 50 | 8,5 | 12 | 6 | 5,9 | 6,15 | 3 | | | 0.71 $ (USD) | | | K1661.050071 | flame red RAL 3000 | - | 50 | 8,5 | 12 | 7 | 6,9 | 7,15 | 3 | | | 0.71 $ (USD) | | | K1661.060061 | flame red RAL 3000 | - | 60 | 8,5 | 12 | 6 | 5,9 | 6,15 | 3 | | | 0.95 $ (USD) | | | K1661.060071 | flame red RAL 3000 | - | 60 | 8,5 | 12 | 7 | 6,9 | 7,15 | 3 | | | 0.95 $ (USD) | | | K1661.070071 | flame red RAL 3000 | - | 69 | 10 | 15 | 7 | 6,9 | 7,15 | 3 | | | 1.31 $ (USD) | | | K1661.070081 | flame red RAL 3000 | - | 69 | 10 | 15 | 8 | 7,9 | 8,15 | 3 | | | 1.31 $ (USD) | | | K1661.080081 | flame red RAL 3000 | - | 78 | 11 | 16 | 8 | 7,9 | 8,15 | 3 | | | 1.57 $ (USD) | | | K1661.080091 | flame red RAL 3000 | - | 78 | 11 | 16 | 9 | 8,9 | 9,15 | 3 | | | 1.57 $ (USD) | | | K1661.090091 | flame red RAL 3000 | - | 89 | 11 | 16 | 9 | 8,9 | 9,15 | 3 | | | 1.94 $ (USD) | | | K1661.100091 | flame red RAL 3000 | - | 98 | 13 | 20 | 9 | 8,9 | 9,15 | 3 | | | 2.58 $ (USD) | | | K1661.100101 | flame red RAL 3000 | - | 98 | 13 | 20 | 10 | 9,9 | 10,15 | 3 | | | 2.58 $ (USD) | | | K1661.110101 | flame red RAL 3000 | - | 108 | 15 | 23 | 10 | 9,9 | 10,15 | 3 | | | 3.11 $ (USD) | | | K1661.130121 | flame red RAL 3000 | - | 130 | 15 | 23 | 12 | 11,9 | 12,15 | 3 | | | 4.49 $ (USD) | | | K1661.050062 | - | electro zinc-plated | 50 | 8,5 | 12 | 6 | 5,9 | 6,15 | 3 | | | 0.71 $ (USD) | | | K1661.050072 | - | electro zinc-plated | 50 | 8,5 | 12 | 7 | 6,9 | 7,15 | 3 | | | 0.71 $ (USD) | | | K1661.060062 | - | electro zinc-plated | 60 | 8,5 | 12 | 6 | 5,9 | 6,15 | 3 | | | 0.95 $ (USD) | | | K1661.060072 | - | electro zinc-plated | 60 | 8,5 | 12 | 7 | 6,9 | 7,15 | 3 | | | 0.95 $ (USD) | | | K1661.070072 | - | electro zinc-plated | 69 | 10 | 15 | 7 | 6,9 | 7,15 | 3 | | | 1.31 $ (USD) | | | K1661.070082 | - | electro zinc-plated | 69 | 10 | 15 | 8 | 7,9 | 8,15 | 3 | | | 1.31 $ (USD) | | | K1661.080082 | - | electro zinc-plated | 78 | 11 | 16 | 8 | 7,9 | 8,15 | 3 | | | 1.57 $ (USD) | | | K1661.080092 | - | electro zinc-plated | 78 | 11 | 16 | 9 | 8,9 | 9,15 | 3 | | | 1.57 $ (USD) | | | K1661.090092 | - | electro zinc-plated | 89 | 11 | 16 | 9 | 8,9 | 9,15 | 3 | | | 1.94 $ (USD) | | | K1661.100092 | - | electro zinc-plated | 98 | 13 | 20 | 9 | 8,9 | 9,15 | 3 | | | 2.58 $ (USD) | | | K1661.100102 | - | electro zinc-plated | 98 | 13 | 20 | 10 | 9,9 | 10,15 | 3 | | | 2.58 $ (USD) | | | K1661.110102 | - | electro zinc-plated | 108 | 15 | 23 | 10 | 9,9 | 10,15 | 3 | | | 4.15 $ (USD) | | | K1661.130122 | - | electro zinc-plated | 130 | 15 | 23 | 12 | 11,9 | 12,15 | 3 | | | 5.49 $ (USD) | |
