Product groups
Hinges aluminum
K0580

Hinges aluminum

go back

Item description/product images

DescriptionMaterial:Die-cast aluminum.
Hinge pin stainless steel.
Version:Hinge silver powder coated.
Axle bright.
Note:Hinges for panel elements and aluminum profiles, non lift-off.
The hinges can be fitted with plastic caps on the hinge pin.

The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for instyleation purposes only and do not constitute a legally binding assurance of properties.

The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.

Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
On request:Hinges with guide tabs for aluminum profiles (slots 5, 6, 8, 10, 12 and 14).
Unequal leaf combinations.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0580 Hinges aluminum 161 kB

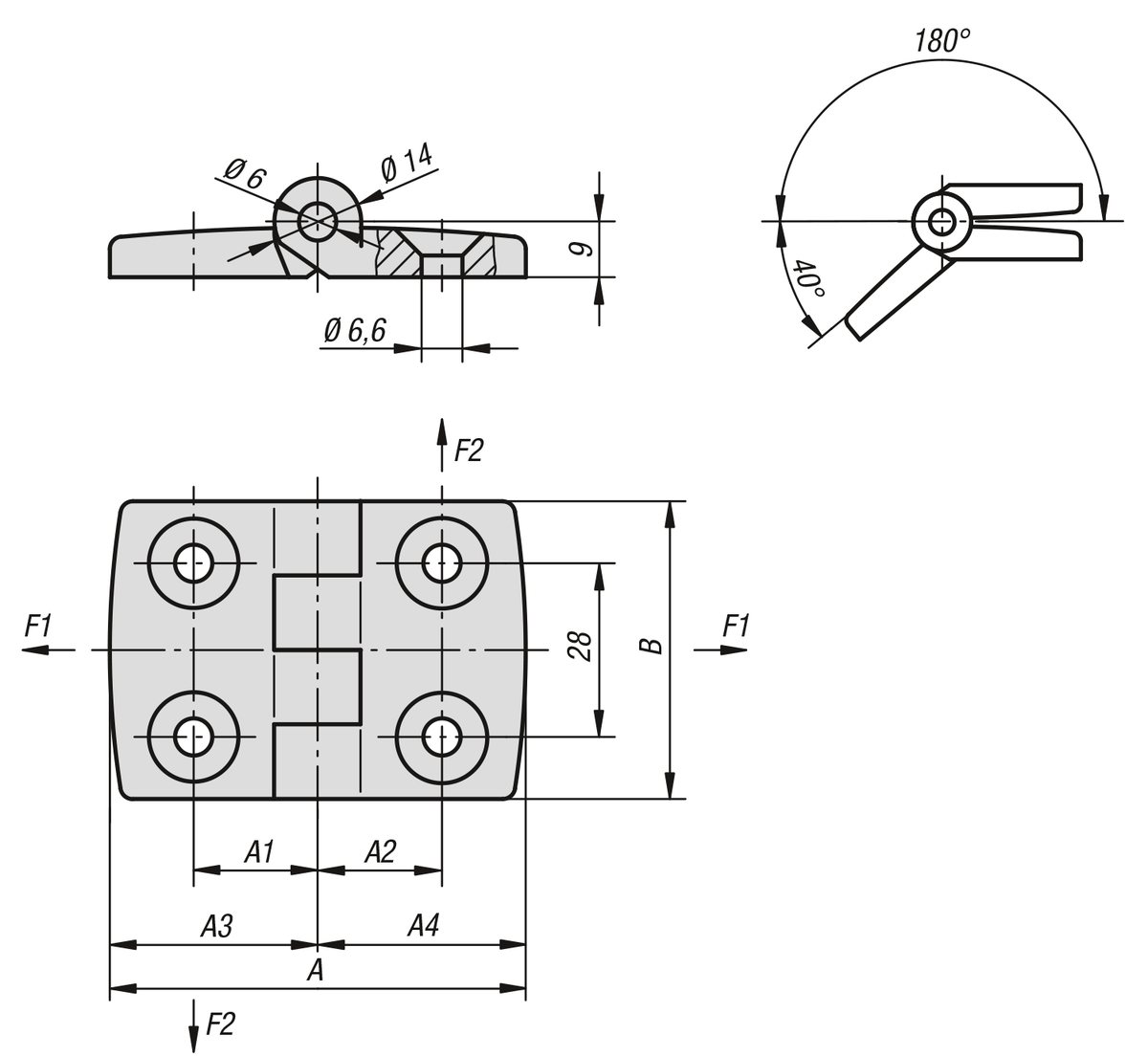

Drawings

Hinges aluminum

Item selection/filter

Item No.

AA1A2A3A4BF1
N
F2
N
CADAcc.PriceOrder
K0580.251515521515262648275215 23.75 $ (USD)
K0580.3018185917,517,529,529,548325225 24.09 $ (USD)
K0580.352020722020363648325225 24.45 $ (USD)
K0580.4023237722,522,538,538,548400250 24.78 $ (USD)
K0580.45252587252543,543,548400250 25.15 $ (USD)
K0580.5028289727,527,548,548,548400250 25.51 $ (USD)
K0580.60333311532,532,557,557,548400100 25.88 $ (USD)
