Hinges weldable

K1140 Metric

Hinges weldable

Products
- Hinges
  - Hinges weldable

Item description/product images

DescriptionMaterial:Steel.Version:Bright.Note:The hinges are made of weldable profile steel.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1140 Metric Hinges weldable

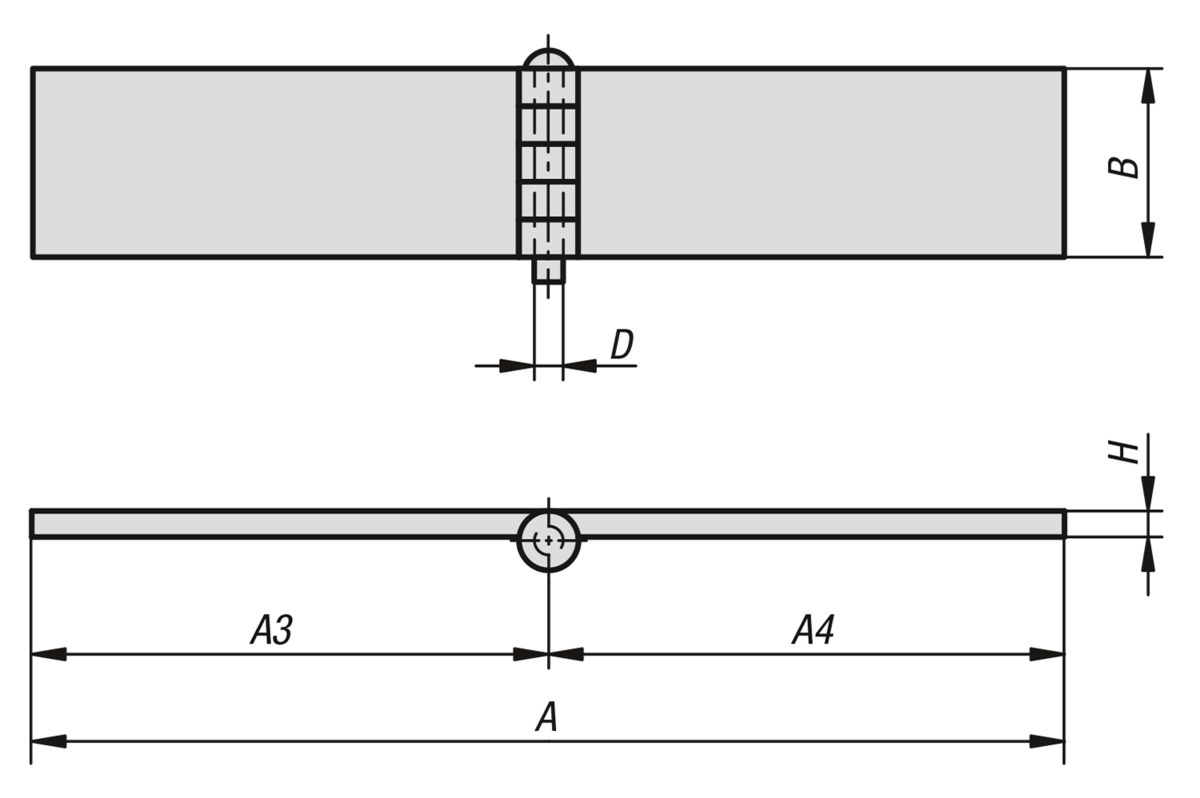

Drawings

Hinges weldable

Item selection/filter

Order No.	A	A3	A4	B	D	H	CAD	Acc.	Price	Order
K1140.04030040	80	40	40	30	4	3			16.79 $ (USD)
K1140.04040040	80	40	40	40	4	3			19.34 $ (USD)
K1140.06040030	60	30	30	40	6	5			19.34 $ (USD)
K1140.06040060	120	60	60	40	6	5			20.37 $ (USD)
K1140.06050060	120	60	60	50	6	5			22.18 $ (USD)
K1140.06060060	120	60	60	60	6	5			25.70 $ (USD)
K1140.08060080	160	80	80	60	8	6			26.99 $ (USD)
