Block hinges with counterbore, long version

K1144

Block hinges with counterbore, long version

Products
- Hinges
  - Block hinges with counterbore, long version

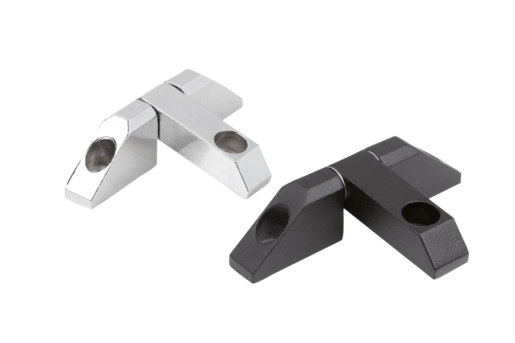

Item description/product images

DescriptionMaterial:Die-cast zinc.Version:Electro zinc-plated, high-gloss chromed or black powder-coated.Note:Block hinges for overlapping doors. Can be mounted left or right. Opening angle 180°. The hinges are supplied assembled. Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1144 Block hinges with counterbore, long version

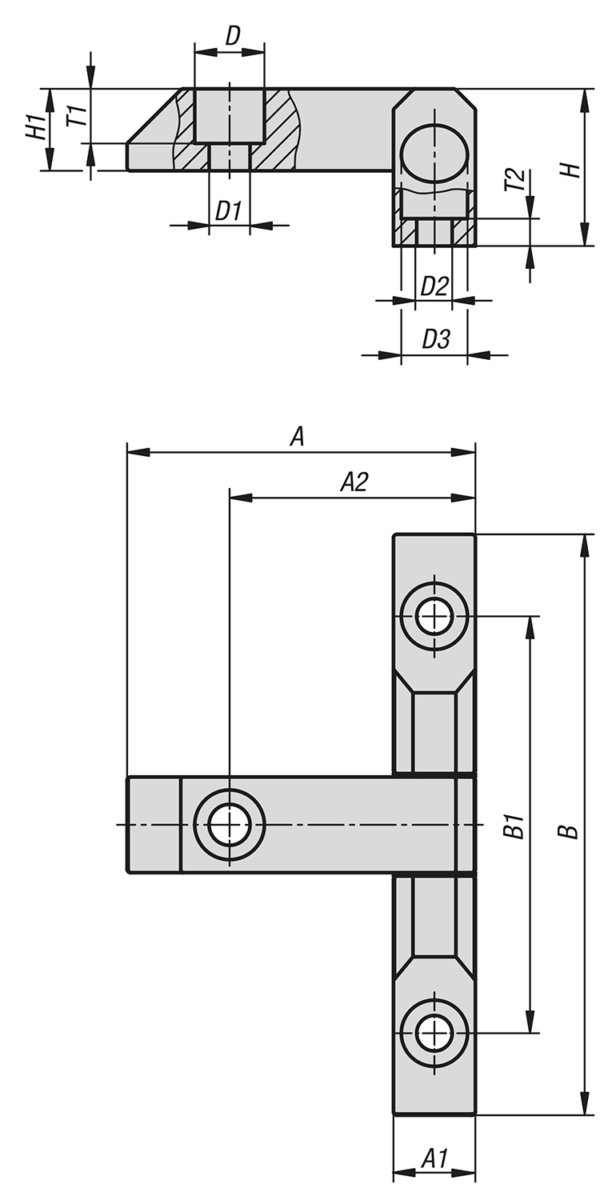

Drawings

Block hinges with counterbore, long version

Item selection/filter

Item No.	Surface finish body	A	A1	A2	B	B1	D	D1	D2	D3	H	H1	T1	T2	CAD	Acc.	Price	Order
K1144.00630061	electro zinc-plated	51	12	36	85	61	10,2	6	5,2	9,7	23	12	8	4			16.21 $ (USD)
K1144.10630061	high-gloss chromed	51	12	36	85	61	10,2	6	5,2	9,7	23	12	8	4			25.45 $ (USD)
K1144.20630061	powder-coated	51	12	36	85	61	10,2	6	5,2	9,7	23	12	8	4			28.57 $ (USD)
