Hinges, stainless steel lift-off, right
K1345

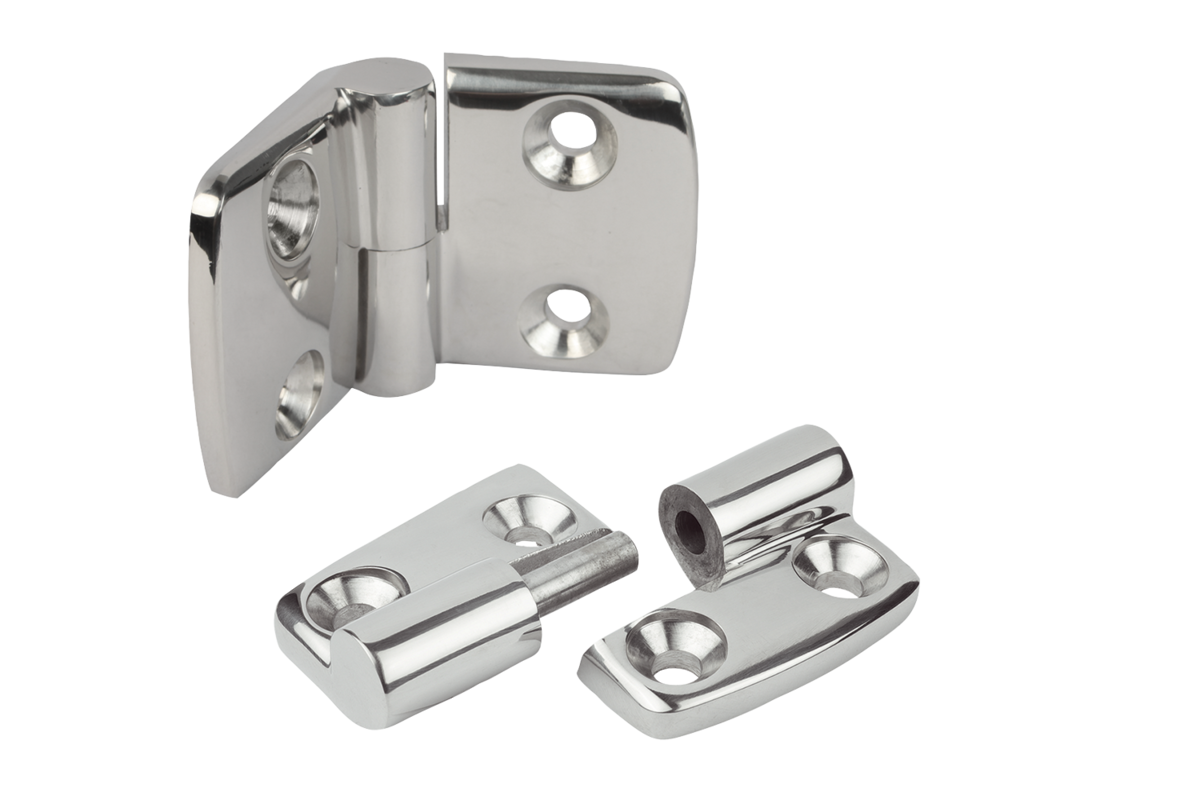

Hinges, stainless steel lift-off, right

go back

Item description/product images

DescriptionMaterial:Hinge stainless steel 1.4401 (AISI 316 equivalent).
Pin stainless steel 1.4104 (AISI 430F equivalent).
Version:High-gloss polished.Note:Hinge for panel elements and aluminum profiles, lift-off. Pin end closed. Screws countersunk, thus minimum dirt accumulation.

The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for instyleation purposes only and do not constitute a legally binding assurance of properties.

The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.

Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1345 Hinges, stainless steel lift-off, right 174 kB

Drawings

Hinges, stainless steel lift-off, right

Item selection/filter

Order No.A

A1A2A3A4BB2B3D1D2HH1F1
N
F2
N
CADAcc.PriceOrder
K1345.0626151552151526264828106,66169900625 38.94 $ (USD)
K1345.063018185917,517,529,529,54828106,661691000710 39.45 $ (USD)
K1345.063923237722,522,538,538,54828106,661691200500 46.86 $ (USD)
K1345.0644252587252543,543,54828106,661691200450 50.65 $ (USD)
K1345.0658333311532,532,557,557,54828106,661691200350 60.84 $ (USD)
