Hinges, stainless steel

K1809

Hinges, stainless steel

Products
- Hinges
  - Hinges, stainless steel

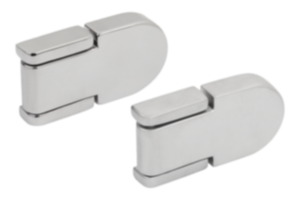

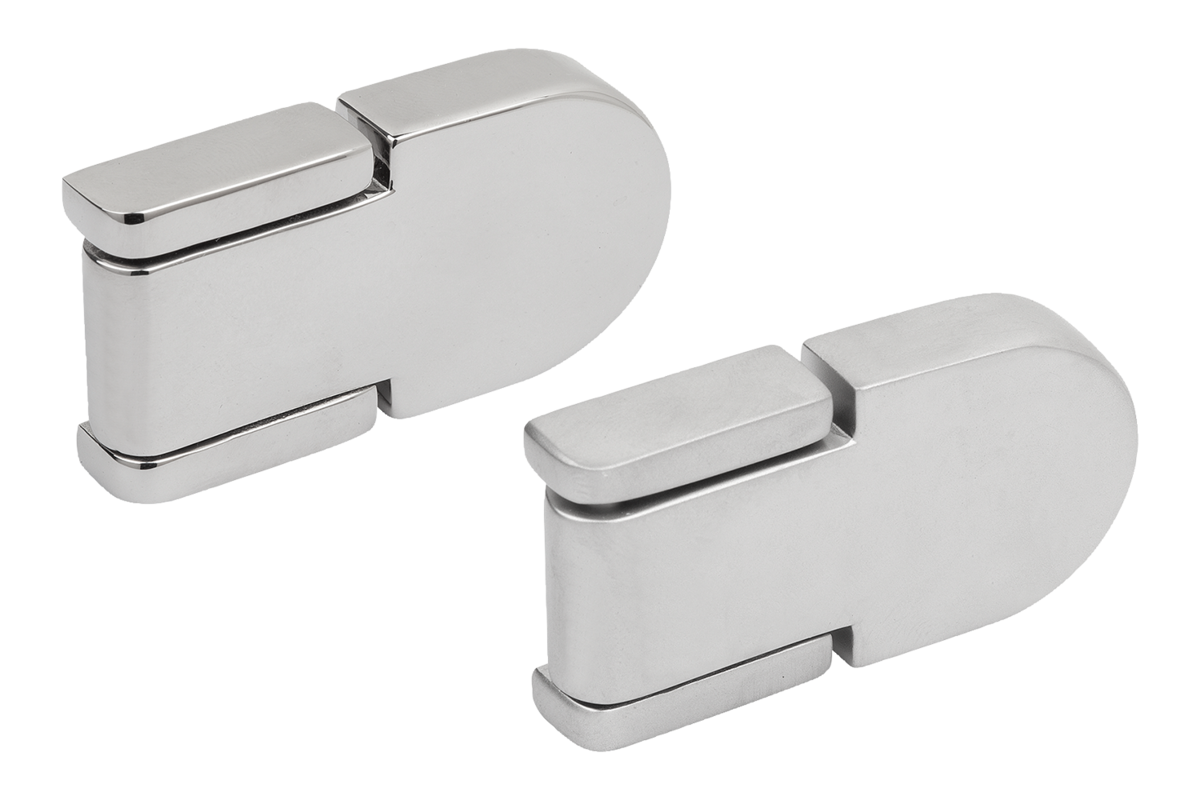

Item description/product images

DescriptionMaterial:

Stainless steel 1.4301 (AISI 304 equivalent).

Version:Polished or blasted.Note:The high-quality stainless steel hinges with fastening holes have an opening angle of 180°. The hinges can be used in the food stuff, packaging, chemical and pharmaceutical industries.

The hinges are available in polished or abrasive blasted versions.Special features:

Stainless steel

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1809 Hinges, stainless steel

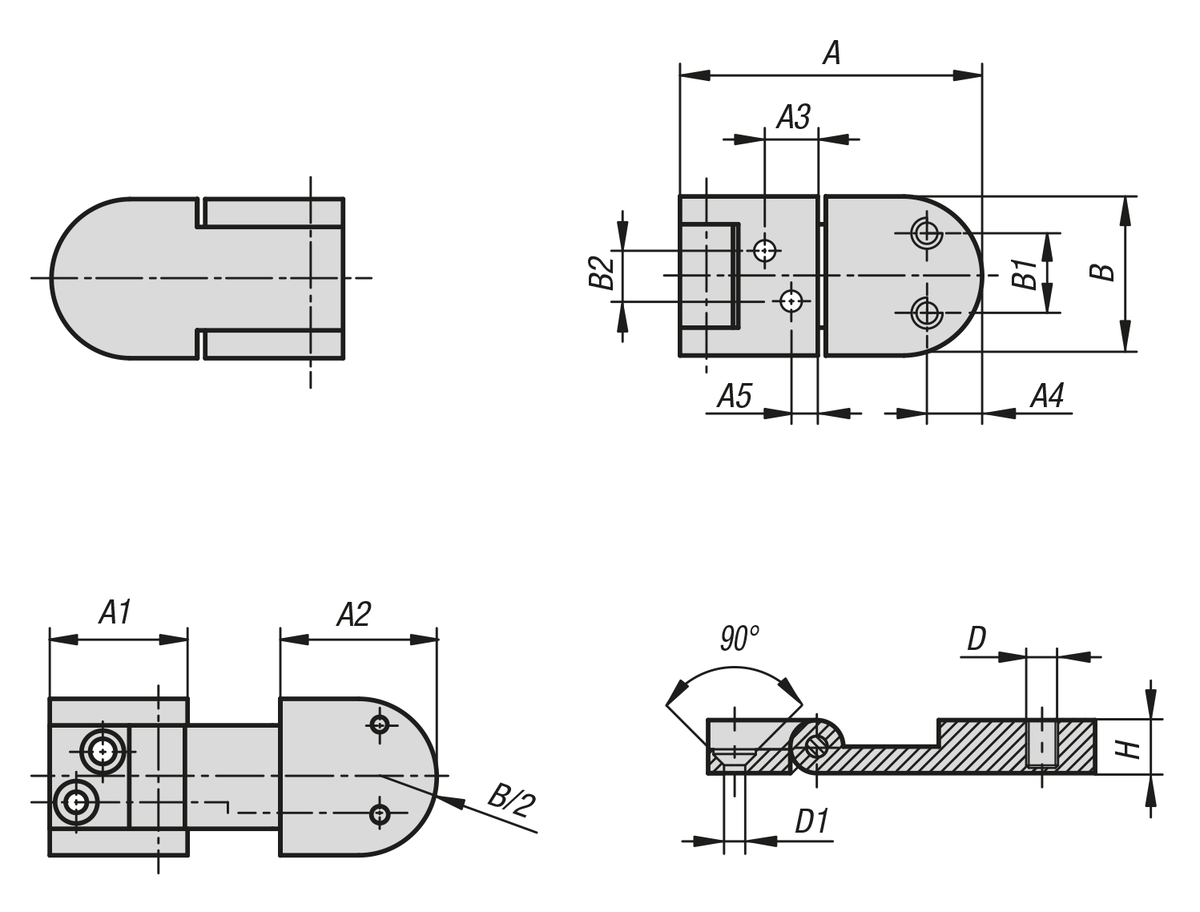

Drawings

Hinges, stainless steel

Item selection/filter

Item No.	Surface finish body	A	A1	A2	A3	A4	A5	B	B1	B2	H	D	D1	CAD	Acc.	Price	Order
K1809.57300	polished	57	26	29,5	10	12	5	30	16	9,5	10	M5	4			59.15 $ (USD)
K1809.57301	blasted	57	26	29,5	10	12	5	30	16	9,5	10	M5	4			60.84 $ (USD)

Other items in this category

<< | < | 1-10 | 11-20 | 21-30 | 31-40 | 41-50 | 51-60 | 61-70 | > | >>

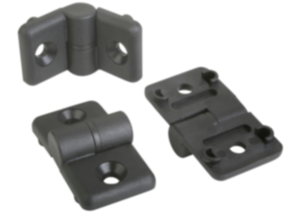

Hinges plastic, detent
