Indexing Plungers
pull knob, short Version, Style D, metric
K0631_D Metric

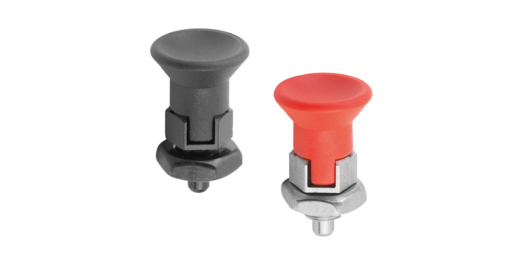

Indexing Plungers pull knob, short Version, Style D, metric

go back

Item description/product images

DescriptionMaterial:Steel version
Indexing pin hardened:
grade 5.8

Stainless steel version
Indexing pin not hardened:
Threaded body 1.4305 (AISI 303 equivalent).
Indexing pin 1.4305 (AISI 303 equivalent).

Mushroom grip thermoplastic, black-gray or traffic red RAL 3020.
Version:Steel version:
Indexing pin hardened, ground, black oxidized.

Stainless steel version:
Indexing pin not hardened, ground, bright.
Note:Indexing plungers are used to prevent any change in position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. style C or D is recommended for applications in which the pin is disengaged over extended periods and should be prevented from springing back.On request:Special versions.Accessory:Spacer rings K0665Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0631_D Metric Indexing Plungers pull knob, short Version, Style D, metric 213 kB

Drawings

Indexing Plungers
pull knob, short Version, Style D, metric

Item selection/filter

Order No.styleMain
material
Surface finish
body
Component
color
DD1D2LL1L2Travel
S
SW1SW2Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0631.8903Dsteelhardenedblack gray RAL 70213M6x0,751425,5653,58100,8410 19.26 $ (USD)
K0631.8004Dsteelhardenedblack gray RAL 70214M8x11829,566410131412  18.39 $ (USD)
K0631.8105Dsteelhardenedblack gray RAL 70215M10x12134,587513171,3512  17.48 $ (USD)
K0631.8206Dsteelhardenedblack gray RAL 70216M12x1,52541,7108614191,8614  18.85 $ (USD)
K0631.8308Dsteelhardenedblack gray RAL 70218M16x1,533541210819242,31428  22.50 $ (USD)
K0631.8410Dsteelhardenedblack gray RAL 702110M20x1,5336115121022302,81532 36.46 $ (USD)
K0631.18903Dstainless steelnot hardenedblack gray RAL 70213M6x0,751425,5653,58100,8410 28.16 $ (USD)
K0631.18004Dstainless steelnot hardenedblack gray RAL 70214M8x11829,566410131412  26.78 $ (USD)
K0631.18105Dstainless steelnot hardenedblack gray RAL 70215M10x12134,587513171,3512  25.52 $ (USD)
K0631.18206Dstainless steelnot hardenedblack gray RAL 70216M12x1,52541,7108614191,8614  30.01 $ (USD)
K0631.18308Dstainless steelnot hardenedblack gray RAL 70218M16x1,533541210819242,31428  40.45 $ (USD)
K0631.18410Dstainless steelnot hardenedblack gray RAL 702110M20x1,5336115121022302,81532 75.58 $ (USD)
K0631.890384Dsteelhardenedred RAL 30203M6x0,751425,5653,58100,8410 19.26 $ (USD)
K0631.800484Dsteelhardenedred RAL 30204M8x11829,566410131412 18.39 $ (USD)
K0631.810584Dsteelhardenedred RAL 30205M10x12134,587513171,3512 17.48 $ (USD)
K0631.820684Dsteelhardenedred RAL 30206M12x1,52541,7108614191,8614 18.85 $ (USD)
K0631.830884Dsteelhardenedred RAL 30208M16x1,533541210819242,31428 22.50 $ (USD)
K0631.841084Dsteelhardenedred RAL 302010M20x1,5336115121022302,81532 36.46 $ (USD)
K0631.1890384Dstainless steelnot hardenedred RAL 30203M6x0,751425,5653,58100,8410 28.16 $ (USD)
K0631.1800484Dstainless steelnot hardenedred RAL 30204M8x11829,566410131412 26.78 $ (USD)
K0631.1810584Dstainless steelnot hardenedred RAL 30205M10x12134,587513171,3512 25.52 $ (USD)
K0631.1820684Dstainless steelnot hardenedred RAL 30206M12x1,52541,7108614191,8614 30.01 $ (USD)
K0631.1830884Dstainless steelnot hardenedred RAL 30208M16x1,533541210819242,31428 40.45 $ (USD)
K0631.1841084Dstainless steelnot hardenedred RAL 302010M20x1,5336115121022302,81532 75.58 $ (USD)
