Indexing plungers with thread lock, Style CP
K1096_CP Metric

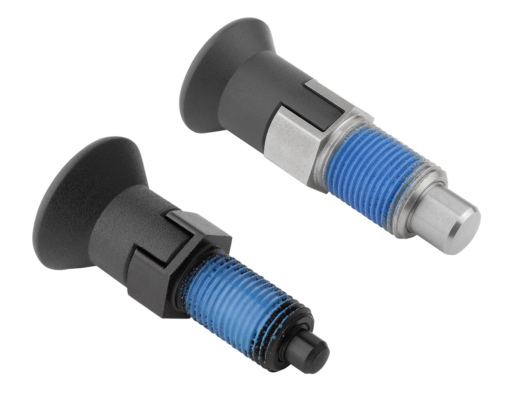

Indexing plungers with thread lock, Style CP

go back

Item description/product images

DescriptionMaterial:Steel version:
Indexing pin hardened:
Threaded body and indexing pin free-cutting steel

Stainless steel version:
Indexing pin hardened:
Threaded body 1.4305 (AISI 303 equivalent)
Indexing pin 1.4034 (AISI 420 equivalent).

Mushroom knob black gray thermoplastic.
Thread lock blue polyamide.
Version:Steel version:
indexing pin hardened, ground and black oxidized.

Stainless steel version:
indexing pin hardened, ground and bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. style CP is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.
The thread lock enables the plunger to be screwed in to the exact depth required, no spacer ring is required.
The thread lock is a gripping polyamide coating that is applied punctiform (spot).
On request:Special versions.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1096_CP Metric Indexing plungers with thread lock, Style CP 196 kB

Drawings

Indexing plungers with thread lock, Style CP

Item selection/filter

Order No.Main
material
styleDD1D2LL1L2L3Travel
S
SW1Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1096.093004stainless steelCP4M8x11838,5156134101612 26.14 $ (USD)
K1096.093105stainless steelCP5M10x12143,5177155131,3512 24.83 $ (USD)
K1096.093206stainless steelCP6M12x1,52551,7208176141,8614 29.27 $ (USD)
K1096.093308stainless steelCP8M16x1,533682610238192,31535 39.90 $ (USD)
K1096.093410stainless steelCP10M20x1,5337428122510222,81534 73.95 $ (USD)
K1096.093412stainless steelCP12M20x1,5337828142512222,81539 81.31 $ (USD)
K1096.093516stainless steelCP16M24x2409632182816273,22046 92.45 $ (USD)
K1096.093903stainless steelCP3M6x0,751431,5125103,580,84,510 27.37 $ (USD)
K1096.93004steelCP4M8x11838,5156134101612 16.57 $ (USD)
K1096.93105steelCP5M10x12143,5177155131,3512 15.77 $ (USD)
K1096.93206steelCP6M12x1,52551,7208176141,8614 17.74 $ (USD)
K1096.93308steelCP8M16x1,533682610238192,31535 21.88 $ (USD)
K1096.93410steelCP10M20x1,5337428122510222,81534 34.73 $ (USD)
K1096.93412steelCP12M20x1,5337828142512222,81539 38.18 $ (USD)
K1096.93516steelCP16M24x2409632182816273,22046 43.43 $ (USD)
K1096.93903steelCP3M6x0,751431,5125103,580,84,510 17.39 $ (USD)
