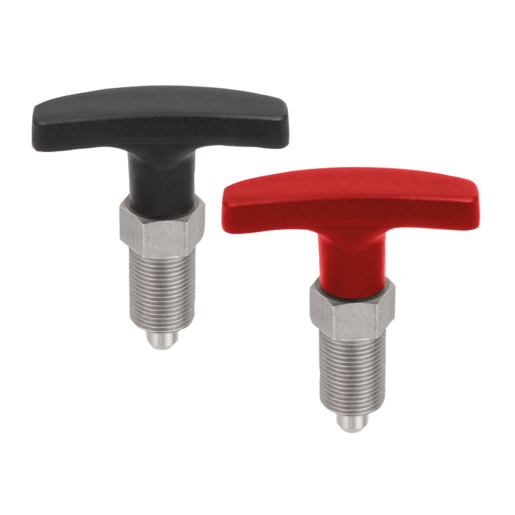

Indexing plungers with T-grip, without locking slot, without locknut, Style A
K1124_A Metric

Indexing plungers with T-grip, without locking slot, without...

go back

Item description/product images

DescriptionMaterial:Steel version:
Indexing pin hardened:
pin 1.0718
threaded body 1.0718.

Stainless steel version:
Indexing pin hardened:
pin 1.4305 (AISI 303 equivalent)
threaded body 1.4305 (AISI 303 equivalent).

T-grip thermoplastic, black gray or traffic red RAL 3020.
Version:Steel version:
indexing pin hardened, ground and black oxidized.
Threaded body black oxidized

Stainless steel version:
indexing pin hardened, ground and bright.
Threaded body bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. The ergonomic T-grip enables easy handling and low effort.On request:Special versions.Accessory:Spacer rings K0665Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1124_A Metric Indexing plungers with T-grip, without locking slot, without locknut, Style A 160 kB

Drawings

Indexing plungers with T-grip, without locking slot, without locknut, Style A

Item selection/filter

Order No.Main
material
Component
color
styleABDD1LL1L2L3Travel
S
SW1Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1124.5206steelblack gray RAL 7021A5015,56M12x1,558208176141,8614 13.10 $ (USD)
K1124.5308steelblack gray RAL 7021A60188M16x1,5772610238192,31535 16.85 $ (USD)
K1124.5410steelblack gray RAL 7021A721910M20x1,58428122510222,81534 19.50 $ (USD)
K1124.520684steelredA5015,56M12x1,558208176141,8614 13.10 $ (USD)
K1124.530884steelredA60188M16x1,5772610238192,31535 16.85 $ (USD)
K1124.541084steelredA721910M20x1,58428122510222,81534 19.50 $ (USD)
K1124.05206stainless steelblack gray RAL 7021A5015,56M12x1,558208176141,8614 22.65 $ (USD)
K1124.05308stainless steelblack gray RAL 7021A60188M16x1,5772610238192,31535 30.05 $ (USD)
K1124.05410stainless steelblack gray RAL 7021A721910M20x1,58428122510222,81534 41.07 $ (USD)
K1124.0520684stainless steelredA5015,56M12x1,558208176141,8614 22.65 $ (USD)
K1124.0530884stainless steelredA60188M16x1,5772610238192,31535 30.05 $ (USD)
K1124.0541084stainless steelredA721910M20x1,58428122510222,81534 41.07 $ (USD)
