Actuating elements for Indexing plunger with remote actuation

go back

Products
- Indexing Plungers
  - Indexing Plungers
    - Indexing plunger, stainless steel with remote actuation
      - Actuating elements for Indexing plunger with remote actuation

Item description/product images

DescriptionProduct description:Indexing plungers are used where any change in locking position due to lateral forces should be prevented.
Some examples of this are for length, height and position indexing in machine, furniture and special vehicle construction.

Indexing plungers with remote actuation are used where inaccessible assembly spaces are making it difficult to operate, or where remote actuation is required for ergonomic or safety reasons.

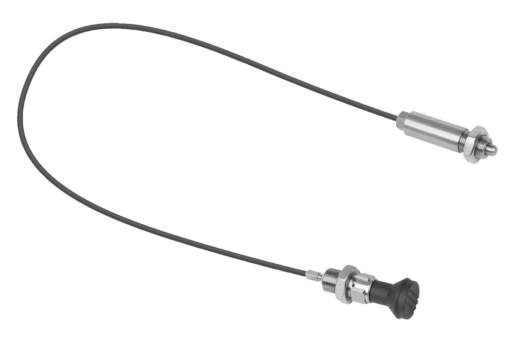

The indexing plunger is connected to the operator side by a Bowden cable. The combination of indexing plunger and actuating element forms a complete system which can be used for many types of application. Style D should be used for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.

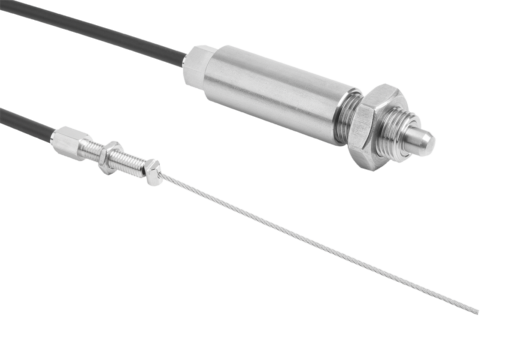

As an alternative to the actuating element, the supplied screw nipple (Ø5 x 7 mm) can be used to integrate an individual actuating element into the system.

The Bowden cable is available in various lengths.
To ensure an exact fit in the application concerned, the Bowden cable can be shortened as required during installation.

Corrosion protection is achieved by selecting a suitable material and surface treatment. The wire cable or cable sheath can be easily replaced if required.Material:Actuating element stainless steel.

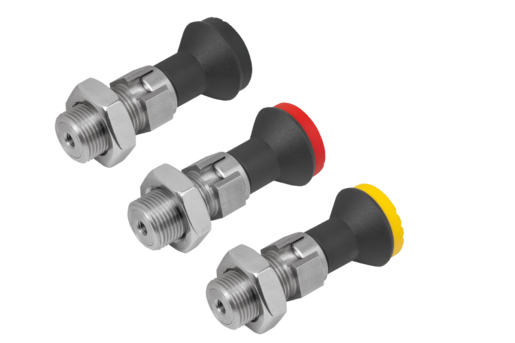

Mushroom grip thermoplastic.Version:Mushroom grip thermoplastic, dark gray.
Plastic cover thermoplastic, in black, gray, red or yellow.Order information:Indexing plungers with remote actuation and actuating element must be ordered separately.Note:When installing the Bowden cables, the following points should be noted:
The length of the free end of the cable can change due to the layout angle, bending radius and load factors. So, after laying the Bowden cable, the length of the counter-bearing (casing) must be adjusted using the adjusting screw supplied. The adjusting screw is also used to set the pretension in the Bowden cable system.
When laying the cable, particular care must be taken to ensure that the bending radius is not below the minimum value, which in this case is R = 65 mm. A radius which is too narrow can lead to increased wear and higher friction.
Also avoid letting the bending radius briefly go below the minimum value when installing, as this can cause damage to the casing. Also, the casing is designed only to support pressure forces. If pulled too sharply, the inner coil will be stretched and permanently damaged.On request:Special versions.Accessory:Hex nuts K0700.
Mounting brackets K0638.
Spacer rings K0665.
Positioning bushings K1290.
Actuating elements K1502.12420.
Wire cables K2023.
Tension body s K2024.
End body s K2025.
Setscrews K2026.
Screw nipples K2027.
Supplied withActuating element with plastic cover.Drawing reference:

1) Indexing plunger
2) Bowden cable casing
3) Bowden cable
4) Adjusting screw
5) Actuating element
6) Screw nipple
7) Cover

style D: lockout type, with locknut

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1502_DE Actuating elements for Indexing plunger with remote actuation

335 kB

Drawings

Item selection/filter

Order No.	color Cap	D Internal thread	D1	D2	L	L1	L2	L3	Travel S	SW1	SW2	Price
K1502.1442006	black gray RAL 7021	M6	M20x1,5	33	76	28	12	25	6	22	30	68.71 $ (USD)
K1502.14420106	orange RAL 2004	M6	M20x1,5	33	76	28	12	25	6	22	30	68.71 $ (USD)
K1502.14420206	signal green RAL6032	M6	M20x1,5	33	76	28	12	25	6	22	30	68.71 $ (USD)
K1502.14420306	blue RAL5017	M6	M20x1,5	33	76	28	12	25	6	22	30	68.71 $ (USD)
K1502.14420506	light gray RAL 7035	M6	M20x1,5	33	76	28	12	25	6	22	30	68.71 $ (USD)
K1502.14420606	traffic red RAL 3020	M6	M20x1,5	33	76	28	12	25	6	22	30	68.71 $ (USD)
K1502.14420706	colza yellow RAL 1021	M6	M20x1,5	33	76	28	12	25	6	22	30	68.71 $ (USD)
K1502.1442008	black gray RAL 7021	M6	M20x1,5	33	76	28	12	25	8	22	30	68.71 $ (USD)
K1502.14420108	orange RAL 2004	M6	M20x1,5	33	76	28	12	25	8	22	30	68.71 $ (USD)
K1502.14420208	signal green RAL6032	M6	M20x1,5	33	76	28	12	25	8	22	30	68.71 $ (USD)
K1502.14420308	blue RAL5017	M6	M20x1,5	33	76	28	12	25	8	22	30	68.71 $ (USD)
K1502.14420508	light gray RAL 7035	M6	M20x1,5	33	76	28	12	25	8	22	30	68.71 $ (USD)
K1502.14420608	traffic red RAL 3020	M6	M20x1,5	33	76	28	12	25	8	22	30	68.71 $ (USD)
K1502.14420708	colza yellow RAL 1021	M6	M20x1,5	33	76	28	12	25	8	22	30	68.71 $ (USD)
K1502.1442010	black gray RAL 7021	M6	M20x1,5	33	76	28	12	25	10	22	30	68.71 $ (USD)
K1502.14420110	orange RAL 2004	M6	M20x1,5	33	76	28	12	25	10	22	30	68.71 $ (USD)
K1502.14420210	signal green RAL6032	M6	M20x1,5	33	76	28	12	25	10	22	30	68.71 $ (USD)
K1502.14420310	blue RAL5017	M6	M20x1,5	33	76	28	12	25	10	22	30	68.71 $ (USD)
K1502.14420510	light gray RAL 7035	M6	M20x1,5	33	76	28	12	25	10	22	30	68.71 $ (USD)
K1502.14420610	traffic red RAL 3020	M6	M20x1,5	33	76	28	12	25	10	22	30	68.71 $ (USD)
K1502.14420710	colza yellow RAL 1021	M6	M20x1,5	33	76	28	12	25	10	22	30	68.71 $ (USD)
K1502.1442012	black gray RAL 7021	M6	M20x1,5	33	76	28	12	25	12	22	30	68.71 $ (USD)
K1502.14420112	orange RAL 2004	M6	M20x1,5	33	76	28	12	25	12	22	30	68.71 $ (USD)
K1502.14420212	signal green RAL6032	M6	M20x1,5	33	76	28	12	25	12	22	30	68.71 $ (USD)
K1502.14420312	blue RAL5017	M6	M20x1,5	33	76	28	12	25	12	22	30	68.71 $ (USD)
K1502.14420512	light gray RAL 7035	M6	M20x1,5	33	76	28	12	25	12	22	30	68.71 $ (USD)
K1502.14420612	traffic red RAL 3020	M6	M20x1,5	33	76	28	12	25	12	22	30	68.71 $ (USD)
K1502.14420712	colza yellow RAL 1021	M6	M20x1,5	33	76	28	12	25	12	22	30	68.71 $ (USD)
