{"product":{"productId":"agid.22783","price":12.74,"name":"Indexing plungers, steel or stainless steel with plastic cam lever"},"currency":"USD"}
Material
Steel version:
Grub screw and indexing pin steel.
Stainless steel version:
Threaded body 1.4305(AISI 303 equivalent).
Indexing pin 1.4305(AISI 303 equivalent).
Handle fiberglass reinforced thermoplastic PPA (high temperature resistant).
Version
Steel version:
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.
Stainless steel version:
Threaded sleeve bright.
Indexing pin ground, bright.
Handle black gray RAL7021 or traffic red RAL3020.
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.
Stainless steel version:
Threaded sleeve bright.
Indexing pin ground, bright.
Handle black gray RAL7021 or traffic red RAL3020.
Show more
Show less

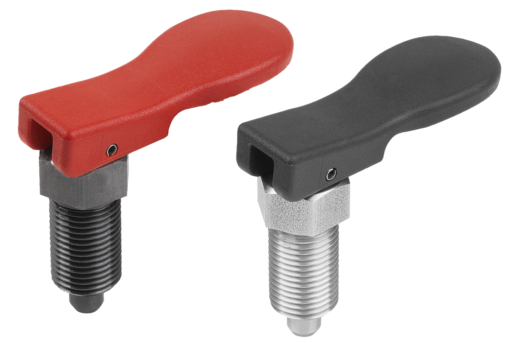

Indexing plungers, steel or stainless steel with plastic cam lever
from
$18.20
as low as | plus sales tax
plus shipping and handling

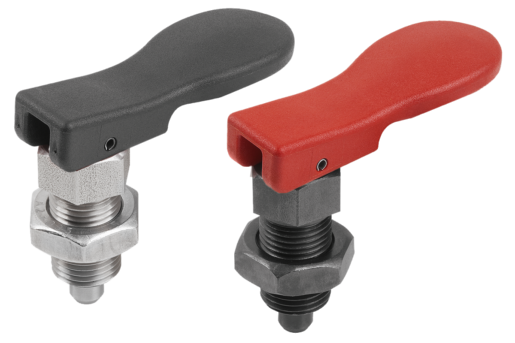

Indexing plungers, steel or stainless steel with plastic cam lever and locknut
from
$18.45
as low as | plus sales tax
plus shipping and handling
Description
Product description
Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. A new locking position can be set only after the plunger has been manually disengaged. With this indexing plunger a cam lever is used to retract the pin. The indexing plunger remains unlocked as long as the handle is positioned over the dead center of the cam.
The ergonomic cam lever enables light handling with low effort.
The ergonomic cam lever enables light handling with low effort.
Material
Steel version:
Grub screw and indexing pin steel.
Stainless steel version:
Threaded body 1.4305(AISI 303 equivalent).
Indexing pin 1.4305(AISI 303 equivalent).
Handle fiberglass reinforced thermoplastic PPA (high temperature resistant).
Version
Steel version:
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.
Stainless steel version:
Threaded sleeve bright.
Indexing pin ground, bright.
Handle black gray RAL7021 or traffic red RAL3020.
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.
Stainless steel version:
Threaded sleeve bright.
Indexing pin ground, bright.
Handle black gray RAL7021 or traffic red RAL3020.
Temperature range
Continuous operating temperature acc. to IEC 216 max. 160°C.
Temporary operating temperature max. 250°C.
Temporary operating temperature max. 250°C.
Advantages
Simple and quick operation.
Suitable for high temperature applications.
With integrated detent function.
Suitable for high temperature applications.
With integrated detent function.
On request
Special versions.
Drawing reference
Style A: without locknut
Style B: with locknut
Style B: with locknut
Accessory
Spacer rings K0665.
Positioning bushings for indexing plunger K1290.
Mounting Brackets, metric K0638.
Positioning bushings for indexing plunger K1290.
Mounting Brackets, metric K0638.
