K0245_ MetricIndexing Plungers lock and clamp, metric |
go back |
|

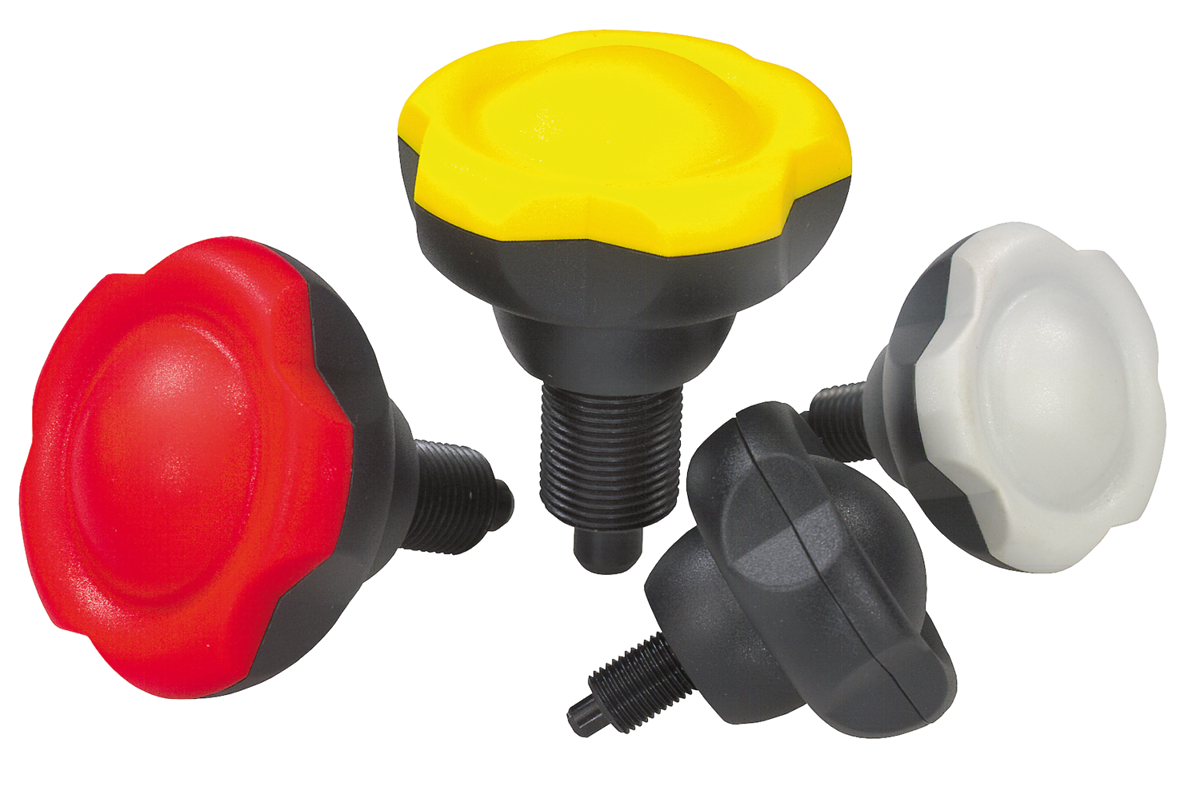

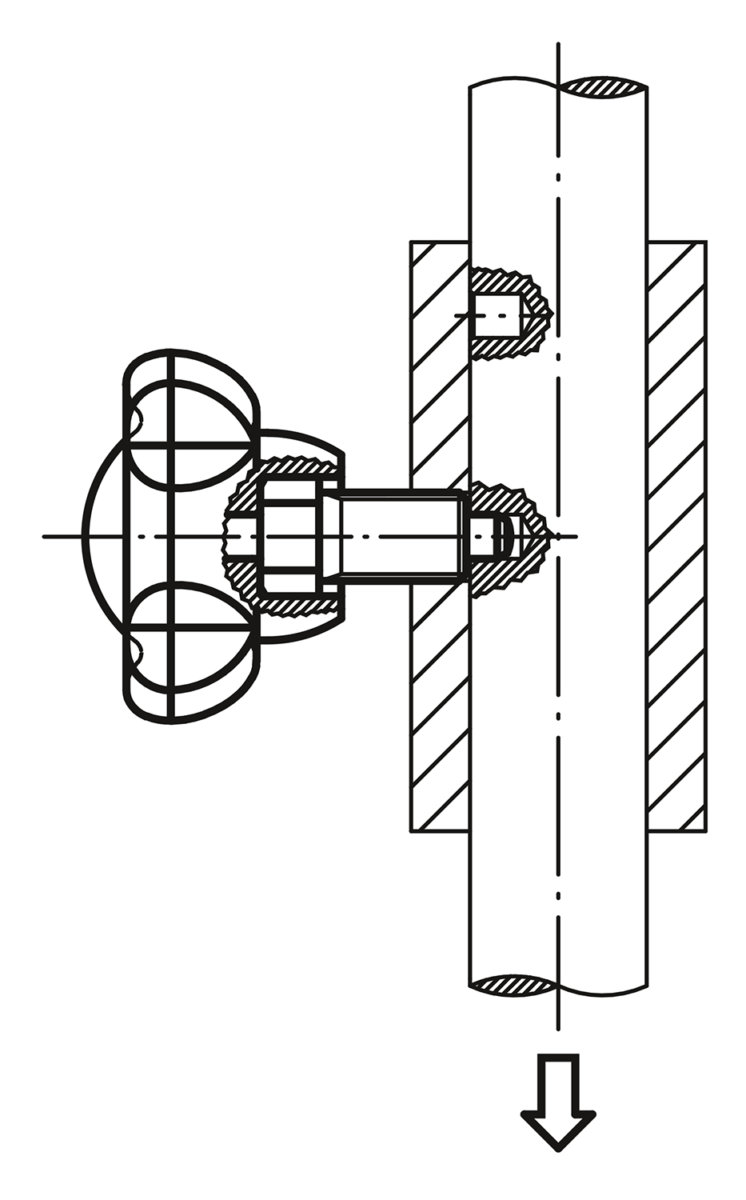

Item description/product images |
|
|
DescriptionMaterial:Knob, thermoplastic Indexing pin and screw steel quality class 5.8. Version:Lower grip black-gray. Indexing pin and screw black oxide finish. Indexing pin hardened and ground.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Item No. | Size | | D | D1 | D2 | D3 | D4 | H | H1 | H2 | L | L1 | SW | CAD | Acc. | Price | Order |
---|
K0245.1105 | 1 | black gray RAL 7021 | 5 | M10x1 | 50 | 22,2 | 28,2 | 5 | 17,8 | 11,5 | 52,8 | 13 | 13 |  | | on request | | K0245.11055 | 1 | light gray RAL 7035 | 5 | M10x1 | 50 | 22,2 | 28,2 | 5 | 17,8 | 11,5 | 52,8 | 13 | 13 |  | | on request | | K0245.11056 | 1 | traffic red RAL 3020 | 5 | M10x1 | 50 | 22,2 | 28,2 | 5 | 17,8 | 11,5 | 52,8 | 13 | 13 |  | | on request | | K0245.11057 | 1 | rape yellow RAL 1021 | 5 | M10x1 | 50 | 22,2 | 28,2 | 5 | 17,8 | 11,5 | 52,8 | 13 | 13 |  | | on request | | K0245.1206 | 2 | black gray RAL 7021 | 6 | M12x1,5 | 50 | 22,2 | 28,2 | 6 | 17,8 | 11,5 | 57,8 | 17 | 14 |  | | on request | | K0245.12065 | 2 | light gray RAL 7035 | 6 | M12x1,5 | 50 | 22,2 | 28,2 | 6 | 17,8 | 11,5 | 57,8 | 17 | 14 |  | | on request | | K0245.12066 | 2 | traffic red RAL 3020 | 6 | M12x1,5 | 50 | 22,2 | 28,2 | 6 | 17,8 | 11,5 | 57,8 | 17 | 14 |  | | on request | | K0245.12067 | 2 | rape yellow RAL 1021 | 6 | M12x1,5 | 50 | 22,2 | 28,2 | 6 | 17,8 | 11,5 | 57,8 | 17 | 14 |  | | on request | | K0245.1308 | 3 | black gray RAL 7021 | 8 | M16x1,5 | 63 | 28 | 35,5 | 8 | 22,5 | 14,5 | 74 | 22 | 19 |  | | on request | | K0245.13085 | 3 | light gray RAL 7035 | 8 | M16x1,5 | 63 | 28 | 35,5 | 8 | 22,5 | 14,5 | 74 | 22 | 19 |  | | on request | | K0245.13086 | 3 | traffic red RAL 3020 | 8 | M16x1,5 | 63 | 28 | 35,5 | 8 | 22,5 | 14,5 | 74 | 22 | 19 |  | | on request | | K0245.13087 | 3 | rape yellow RAL 1021 | 8 | M16x1,5 | 63 | 28 | 35,5 | 8 | 22,5 | 14,5 | 74 | 22 | 19 |  | | on request | | K0245.1410 | 4 | black gray RAL 7021 | 10 | M20x1,5 | 63 | 28 | 35,5 | 10 | 22,5 | 14,5 | 78 | 24 | 22 |  | | on request | | K0245.14105 | 4 | light gray RAL 7035 | 10 | M20x1,5 | 63 | 28 | 35,5 | 10 | 22,5 | 14,5 | 78 | 24 | 22 |  | | on request | | K0245.14106 | 4 | traffic red RAL 3020 | 10 | M20x1,5 | 63 | 28 | 35,5 | 10 | 22,5 | 14,5 | 78 | 24 | 22 |  | | on request | | K0245.14107 | 4 | rape yellow RAL 1021 | 10 | M20x1,5 | 63 | 28 | 35,5 | 10 | 22,5 | 14,5 | 78 | 24 | 22 |  | | on request | |
