Indexing and clamping grip
K1582

Indexing and clamping grip

go back

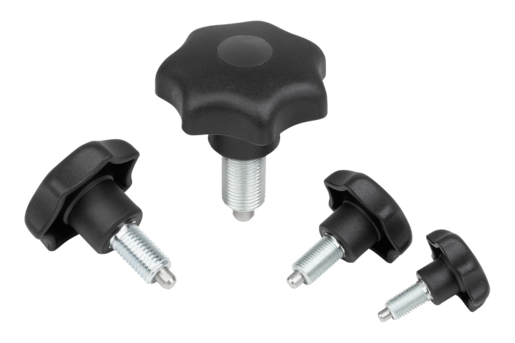

Item description/product images

DescriptionProduct description:The indexing and clamping grips enable the positioning, securing and clamping of diverse positioning elements with just one product. Indexing is carried out using the indexing pin and the item is clamped using the end face of the sleeve.Material:Star grip black grey thermoplastic.
Threaded sleeve 1.0718.
Indexing pin stainless steel 1.4305 (AISI 303 equivalent).
Version:Steel electro zinc-plated.
Stainless steel bright.
Benefits:Indexing and clamping with one product.
Ergonomic operation via star grip.
On request:Special versions.Accessory:Hexagon nuts thin DIN 439Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1582 Indexing and clamping grip 278 kB

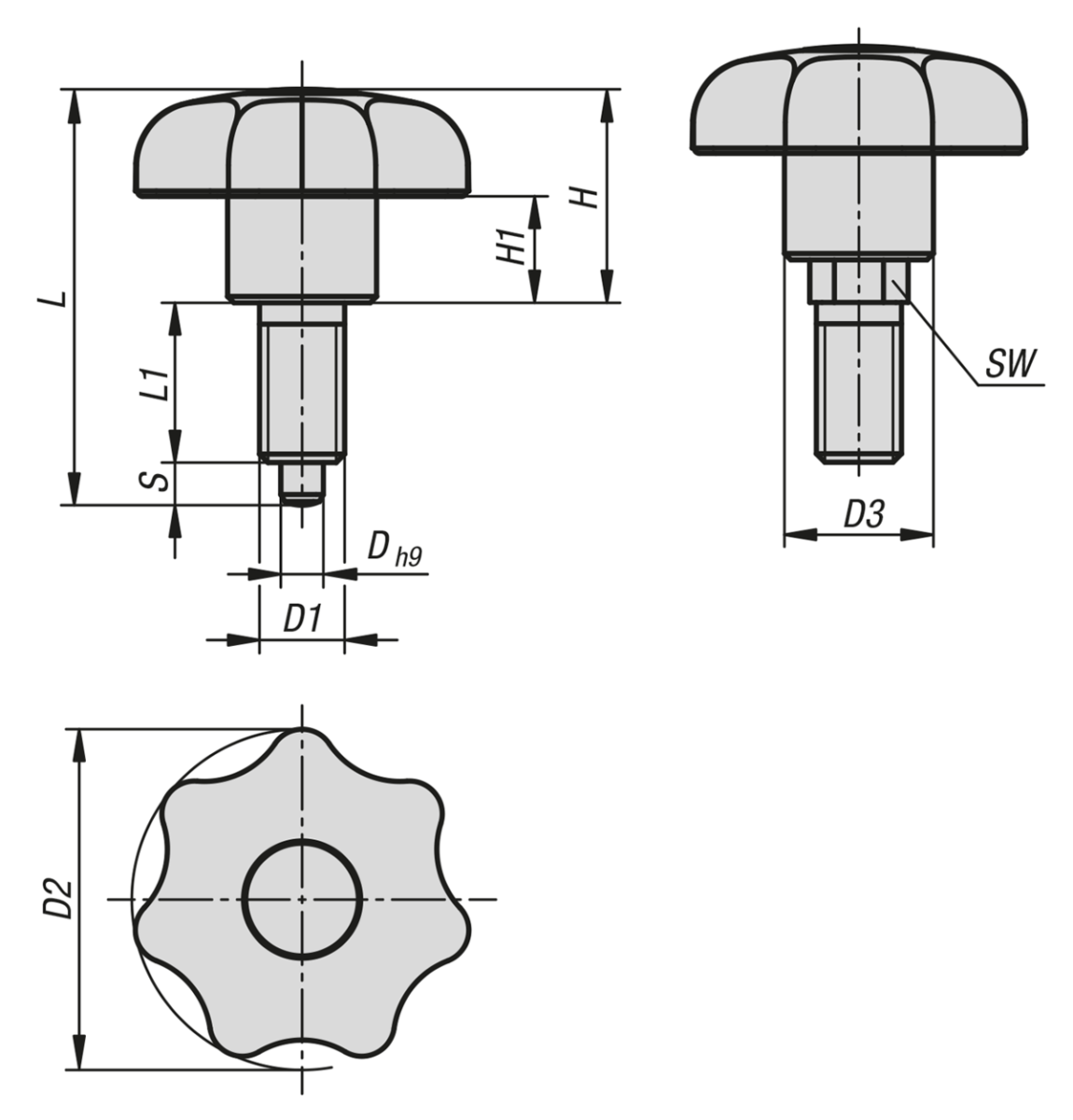

Drawings

Indexing and clamping grip

Item selection/filter

Order No.D

D1D2D3HH1LL1Travel
S
SWCADAcc.PriceOrder
K1582.1080404M832142010391548 9.85 $ (USD)
K1582.2100505M10401824,91346,917510 10.15 $ (USD)
K1582.3120606M12502231,81757,820612 11.60 $ (USD)
K1582.4160808M16632640217426816 13.88 $ (USD)
K1582.1080414M8x132142010391548 9.85 $ (USD)
K1582.2100515M10x1401824,91346,917510 10.15 $ (USD)
K1582.3120616M12x1,5502231,81757,820612 11.60 $ (USD)
K1582.4160818M16x1,5632640217426816 13.88 $ (USD)
