Material
Free-cutting steel.
Spherical knob thermoplastic.
Spherical knob thermoplastic.
Version
Hardened and ground,
Spherical knob black-gray RAL7021.
Spherical knob black-gray RAL7021.
Show more
Show less

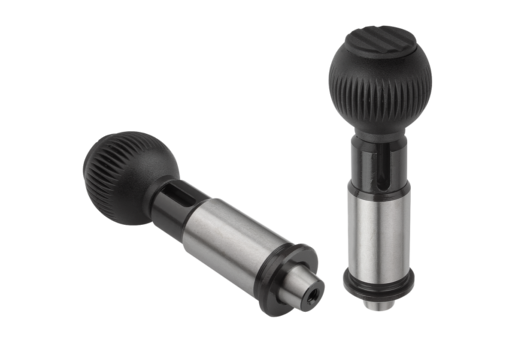

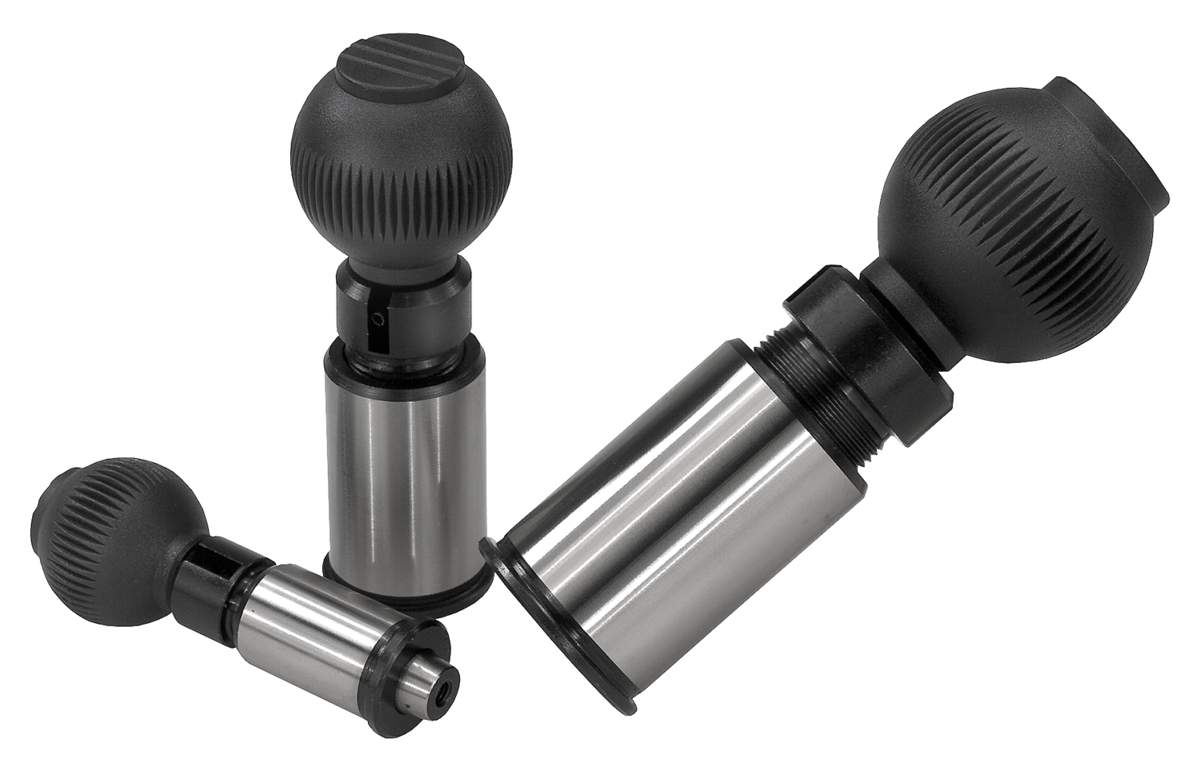

Precision indexing plungers, steel with plastic spherical knob and tapered indexing pin
from
$170.29
as low as | plus sales tax
plus shipping and handling
Precision indexing plungers, steel with plastic spherical knob, tapered indexing pin and locking slot
from
$181.80
as low as | plus sales tax
plus shipping and handling
Description
Product description
Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new indexed position can be only be moved to after the pin has been manually retracted.
Style B is recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.
The indexing plungers with bushings are a perfect combination for quick positioning and securing. The precise design of both the indexing plunger and the bush guarantees high repeat accuracy when joining two elements.
Style B is recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.
The indexing plungers with bushings are a perfect combination for quick positioning and securing. The precise design of both the indexing plunger and the bush guarantees high repeat accuracy when joining two elements.
Material
Free-cutting steel.
Spherical knob thermoplastic.
Spherical knob thermoplastic.
Version
Hardened and ground,
Spherical knob black-gray RAL7021.
Spherical knob black-gray RAL7021.
Note
Technical information see assembly and installation instructions.
Drawing reference
Style A: standard version
Style B: lock-out version
Style B: lock-out version
