Precision indexing plungers with tapered pins, Style A, standard
K0359_A

Precision indexing plungers with tapered pins, Style A, standard

go back

Item description/product images

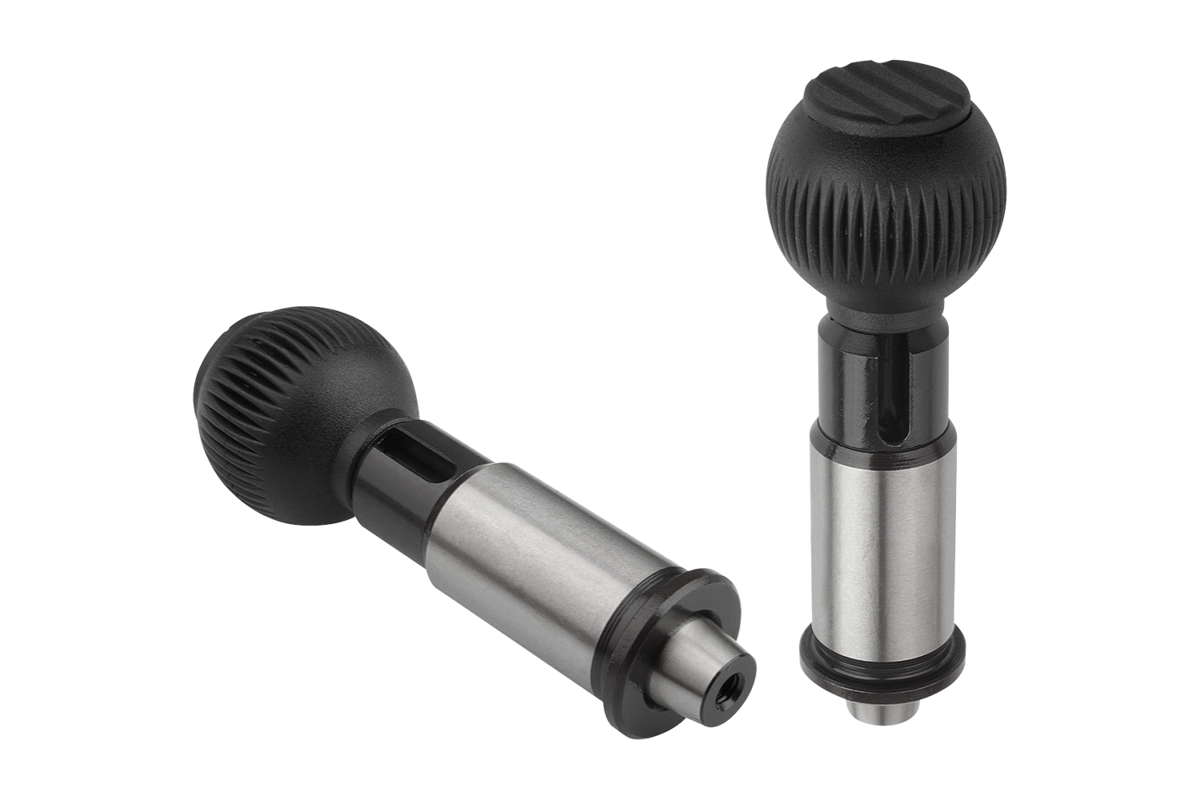

DescriptionMaterial:Steel, grip ball thermoplasticVersion:Hardened and ground, grip ball black grayNote:The Indexing Plungers with bushings are a perfect combination for rapid positioning and locking. The precise design of both the Indexing Plunger and the bushing guarantees high repeat accuracy when assembling two elements.

For technical information see assembly and installation instructions.
Drawing reference:
Style A: standard version
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0359_A Precision indexing plungers with tapered pins, Style A, standard 171 kB
 Technical Information Precision indexing plungers 101 kB

Drawings

Precision indexing plungers with tapered pins, Style A, standard

Item selection/filter

Item No.StyleVersion 2DD1D2D3LL1L3L5L6Stroke
S
Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Internal thread Grip BallCADAcc.PriceOrder
K0359.010Astandard101619257525132,53161929M6 on request
K0359.012Astandard1220233287331333562235M8 on request
K0359.016Astandard16252840102,541,51334263050M10 on request
K0359.020Astandard20303340110,541,51335064663M10 on request
K0359.025Astandard25384250130511336063973M10 on request
