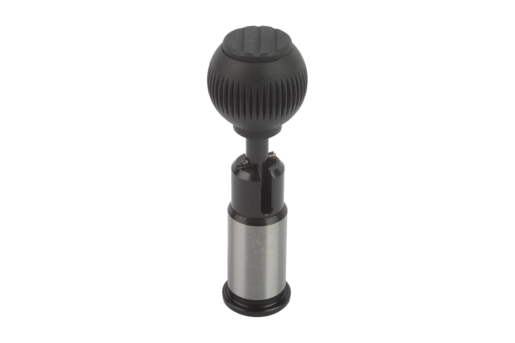

Precision indexing plungers with cylindrical pins, Style B, locking version
K0361_B

Precision indexing plungers with cylindrical pins, Style B,...

go back

Item description/product images

DescriptionMaterial:Steel.
Grip ball thermoplastic.
Version:Hardened and ground.
Grip ball black gray.
Note:The indexing plungers with bushings are a perfect combination for rapid positioning and fixing. The precise design of both the indexing plungers and the bushing guarantees high repeating accuracy when assembling two elements.

Technical Instyleation see assembly and installation instructions.
Drawing reference:
Style B: locking version
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0361_B Precision indexing plungers with cylindrical pins, Style B, locking version 159 kB
 Technical Information Precision indexing plungers 101 kB

Drawings

Precision indexing plungers with cylindrical pins, Style B, locking version

Item selection/filter

Order No.styleDD1D2D3LL1L2L3L5L6Travel
S
Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Internal thread grip ballCADAcc.PriceOrder
K0361.110B10161925792536,5132,531101530M6 155.58 $ (USD)
K0361.112B12202332913344,513335101535M8 172.60 $ (USD)
K0361.116B16252840106,541,55313342102050M10 195.96 $ (USD)
K0361.120B20303340114,541,55313350103663M10 221.30 $ (USD)
K0361.125B253842501345162,513360102073M10 248.10 $ (USD)
