- Quick-fit couplings with radial offset compensation and mounting flange
|
Item description/product images |
|
|

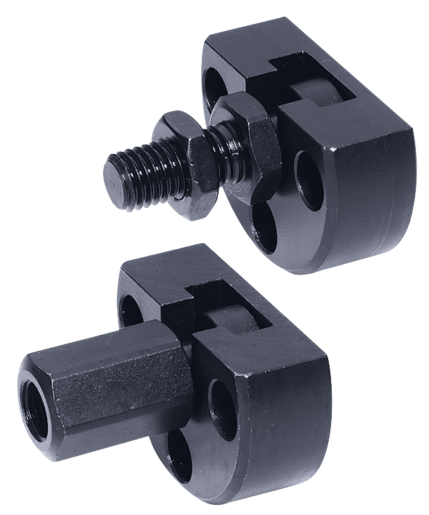

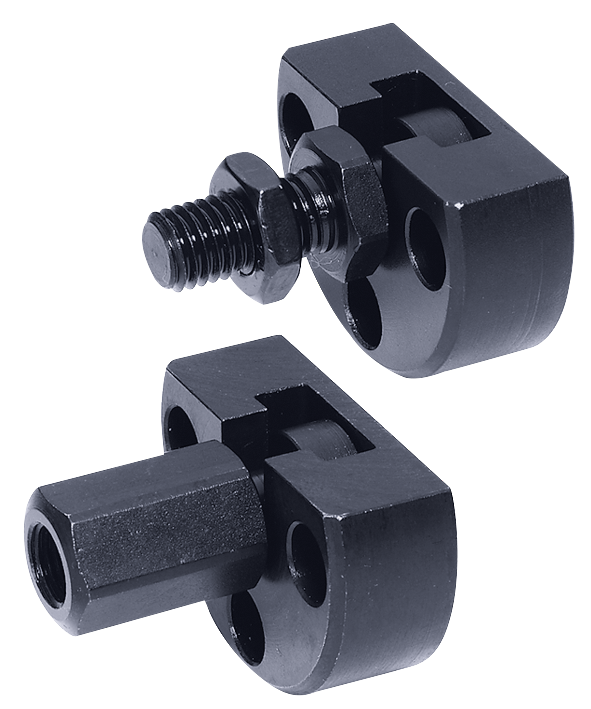

DescriptionMaterial:Coupling part and steel flange.
Nut (DIN 439), grade 8.8.Version:Coupling part and flange tempered and phosphated.

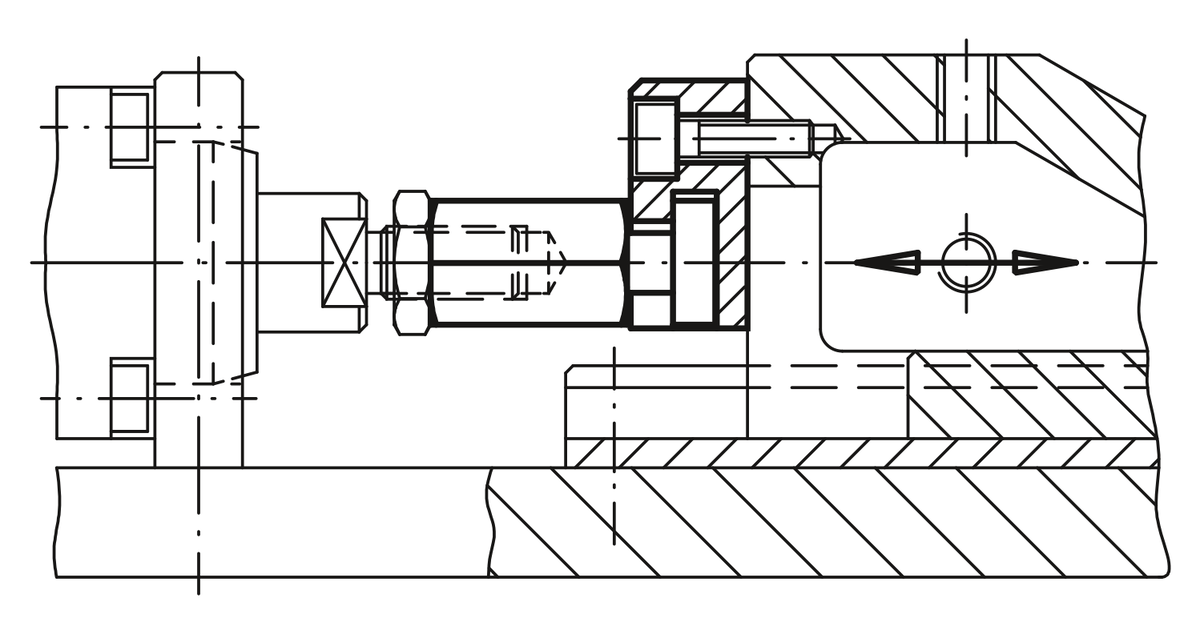

Nut black oxidized.Note:Space saving quick-fit couplings with radial offset compensation suitable for multiple applications, e.g. as a link between a piston rod and a linear-movement unit. Assembly and disassembly of this simple, solid and two-part coupling is with a T-slot, a manual re-adjustment is not necessary. The quick-fit coupling can be linked to all commonly used pneumatic and hydraulic lifting cylinders via the connecting thread.
The quick-fit coupling does not transmit any torque. Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Item No.
| Version
| D | D1 | D2 | D3 | A | A1 | L | L1
min. | L2 | L3 | T | SW | radial offset
compensation
X max. | Max. permissible tensile
and compressive stress
kN | CAD | Acc. | Price | Order |
|---|
| K0710.06 | internal thread | M6 | 42 | 5,5 | 10 | 14 | 7 | 30,5 | 11 | - | 11 | 5,4 | 10 | 0,6 | 2,5 |  | | 64.58 $ (USD) | | | K0710.08 | internal thread | M8 | 48 | 6,6 | 11 | 16 | 8 | 35,5 | 13,5 | - | 13 | 6,4 | 13 | 0,7 | 4,5 | | | 78.18 $ (USD) | | | K0710.10 | internal thread | M10 | 50 | 6,6 | 11 | 17 | 9 | 43,2 | 15 | - | 16 | 6,4 | 17 | 0,7 | 6,5 | | | 82.99 $ (USD) | | | K0710.101 | internal thread | M10x1,25 | 50 | 6,6 | 11 | 17 | 9 | 43,2 | 15 | - | 16 | 6,4 | 17 | 0,7 | 6,5 | | | 82.99 $ (USD) | | | K0710.12 | internal thread | M12 | 55 | 6,6 | 11 | 19 | 10 | 53,2 | 17,5 | - | 20,5 | 6,4 | 19 | 0,8 | 10 | | | 97.81 $ (USD) | | | K0710.121 | internal thread | M12x1,25 | 55 | 6,6 | 11 | 19 | 10 | 53,2 | 17,5 | - | 20,5 | 6,4 | 19 | 0,8 | 10 | | | 97.81 $ (USD) | | | K0710.16 | internal thread | M16 | 65 | 9 | 15 | 22,5 | 12,5 | 64 | 22 | - | 23 | 8,5 | 24 | 1 | 18 | | | 119.22 $ (USD) | | | K0710.161 | internal thread | M16x1,5 | 65 | 9 | 15 | 22,5 | 12,5 | 64 | 22 | - | 23 | 8,5 | 24 | 1 | 18 | | | 119.22 $ (USD) | | | K0710.20 | internal thread | M20 | 80 | 11 | 18 | 28 | 17 | 74 | 25 | - | 26 | 10 | 30 | 1 | 30 | | | 155.46 $ (USD) | | | K0710.201 | internal thread | M20x1,5 | 80 | 11 | 18 | 28 | 17 | 74 | 25 | - | 26 | 10 | 30 | 1 | 30 | | | 155.46 $ (USD) | | | K0710.0614 | external thread | M6 | 42 | 5,5 | 10 | 14 | 7 | 30,5 | 11 | 14 | 11 | 5,4 | 10 | 0,6 | 2,5 | | | 64.58 $ (USD) | | | K0710.0817 | external thread | M8 | 48 | 6,6 | 11 | 16 | 8 | 35,5 | 13,5 | 17 | 13 | 6,4 | 13 | 0,7 | 4,5 | | | 78.18 $ (USD) | | | K0710.1020 | external thread | M10 | 50 | 6,6 | 11 | 17 | 9 | 43,2 | 16 | 20 | 16 | 6,4 | 17 | 0,7 | 6,5 | | | 82.99 $ (USD) | | | K0710.10201 | external thread | M10x1,25 | 50 | 6,6 | 11 | 17 | 9 | 43,2 | 16 | 20 | 16 | 6,4 | 17 | 0,7 | 6,5 | | | 82.99 $ (USD) | | | K0710.1225 | external thread | M12 | 55 | 6,6 | 11 | 19 | 10 | 53,2 | 21 | 25 | 20,5 | 6,4 | 19 | 0,8 | 10 | | | 97.81 $ (USD) | | | K0710.12251 | external thread | M12x1,25 | 55 | 6,6 | 11 | 19 | 10 | 53,2 | 21 | 25 | 20,5 | 6,4 | 19 | 0,8 | 10 | | | 97.81 $ (USD) | | | K0710.1630 | external thread | M16 | 65 | 9 | 15 | 22,5 | 12,5 | 64 | 25 | 30 | 23 | 8,5 | 24 | 1 | 18 | | | 119.22 $ (USD) | | | K0710.16301 | external thread | M16x1,5 | 65 | 9 | 15 | 22,5 | 12,5 | 64 | 25 | 30 | 23 | 8,5 | 24 | 1 | 18 | | | 119.22 $ (USD) | | | K0710.2035 | external thread | M20 | 80 | 11 | 18 | 28 | 17 | 74 | 29 | 35 | 26 | 10 | 30 | 1 | 30 | | | 155.46 $ (USD) | | | K0710.20351 | external thread | M20x1,5 | 80 | 11 | 18 | 28 | 17 | 74 | 29 | 35 | 26 | 10 | 30 | 1 | 30 | | | 155.46 $ (USD) | |
