Quick-fit couplings with angular and radial offset compensation

Quick-fit couplings with angular and radial offset compensation

go back

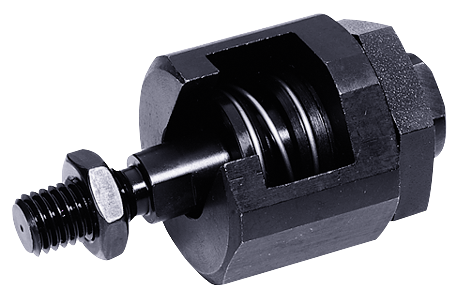

Item description/product images

DescriptionMaterial:Coupling part carbon steel.
Claw and seat steel.
Nut carbon steel.
Locknut (EN 24035) grade 8.8 steel.
Spring stainless steel.
Version:Coupling part nitrided, black.
Claw and seat tempered and phosphated.
Nut phosphated.
Locknut black.

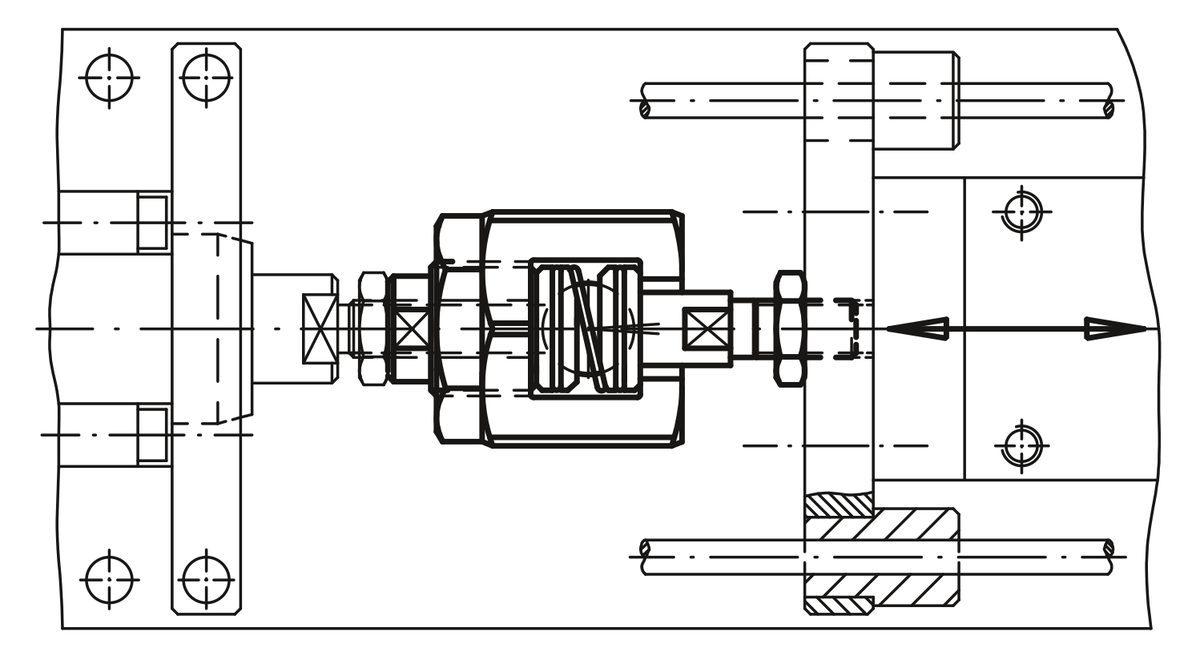

Quick-fit coupling, adjustable without axial play, including angular and radial offset compensation. Suitable for multiple applications, e.g. for non-aligned linear-movements. Solid and compact design, no loose elements. Assembly and disassembly with a T-slot; a manual re-adjustment is not necessary. The quick-fit coupling can be linked to all commonly used pneumatic and hydraulic lifting cylinders via the connecting thread.

The quick-fit coupling does not transmit any torque.

Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0711 Quick-fit couplings with angular and radial offset compensation 218 kB


Quick-fit couplings with angular and radial offset compensation

Item selection/filter

Item No.

L4L5SWSW1SW2SW3radial offset
X max.
Max. permissible tensile
and compressive stress
K0711.06M624,59,652149,5132918,52219850,62,5 94.74 $ (USD)
K0711.08M83015631811,5163323,527241370,64,5 102.54 $ (USD)
K0711.10M104421812216244330,5413618120,76,5 138.24 $ (USD)
K0711.101M10x1,254421812216244330,5413618120,76,5 138.24 $ (USD)
K0711.12M124421852616244334,5413618120,710 139.73 $ (USD)
K0711.121M12x1,254421852616244334,5413618120,710 139.73 $ (USD)
K0711.16M166032121342634624555462718118 195.89 $ (USD)
K0711.161M16x1,56032121342634624555462718118 195.89 $ (USD)
K0711.20M206032129422634625355462718130 197.42 $ (USD)
K0711.201M20x1,56032129422634625355462718130 197.42 $ (USD)
