K0719Rod ends with plain bearing internal thread, DIN ISO 12240-4 |
go back |
- Products
- Joints

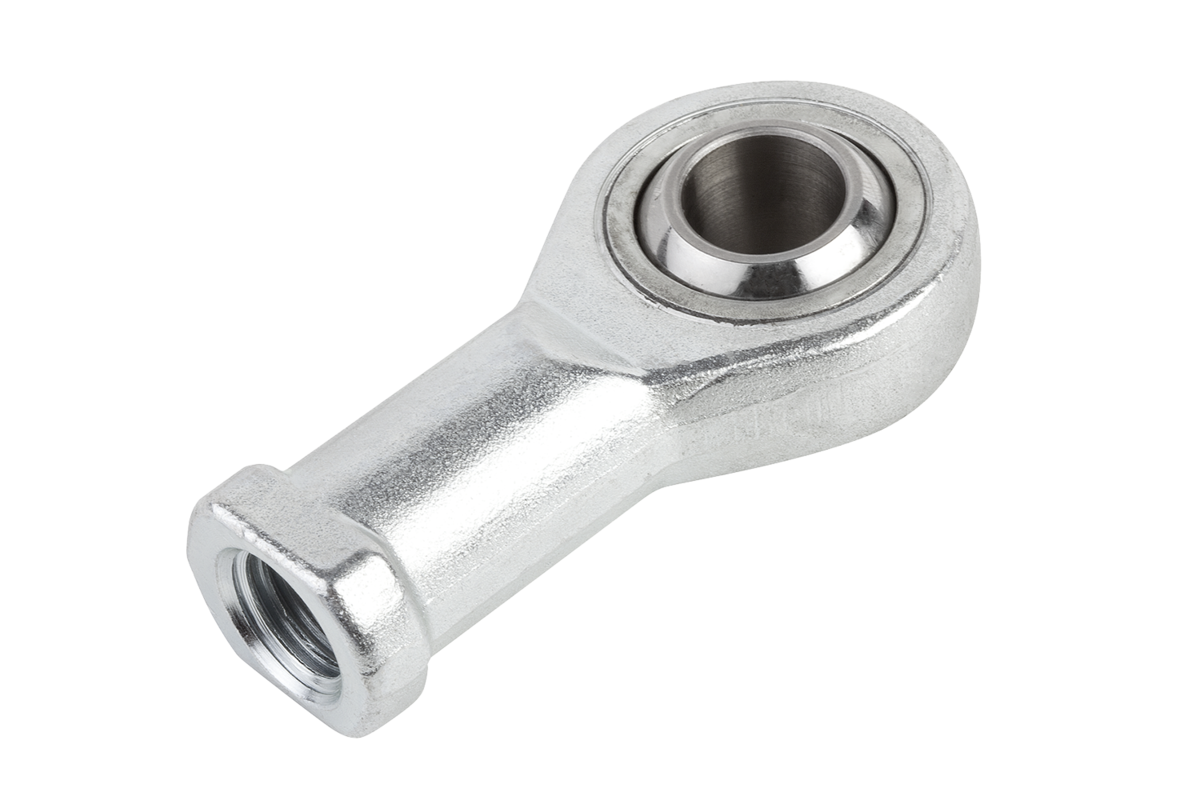

- Rod ends with plain bearing internal thread, DIN ISO 12240-4
|
Item description/product images |
|
|
DescriptionMaterial:Housing size (D) 5-12 turned steel.
From size (D) 16 forged steel.
Ball joint ball bearing steel, hardened, ground and polished.
Bearing shell steel with PTFE weave glued in.Version:Electro zinc-plated.Note:The rod end bearing is maintenance-free. The connection dimensions comply with DIN 648 series KJ.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version

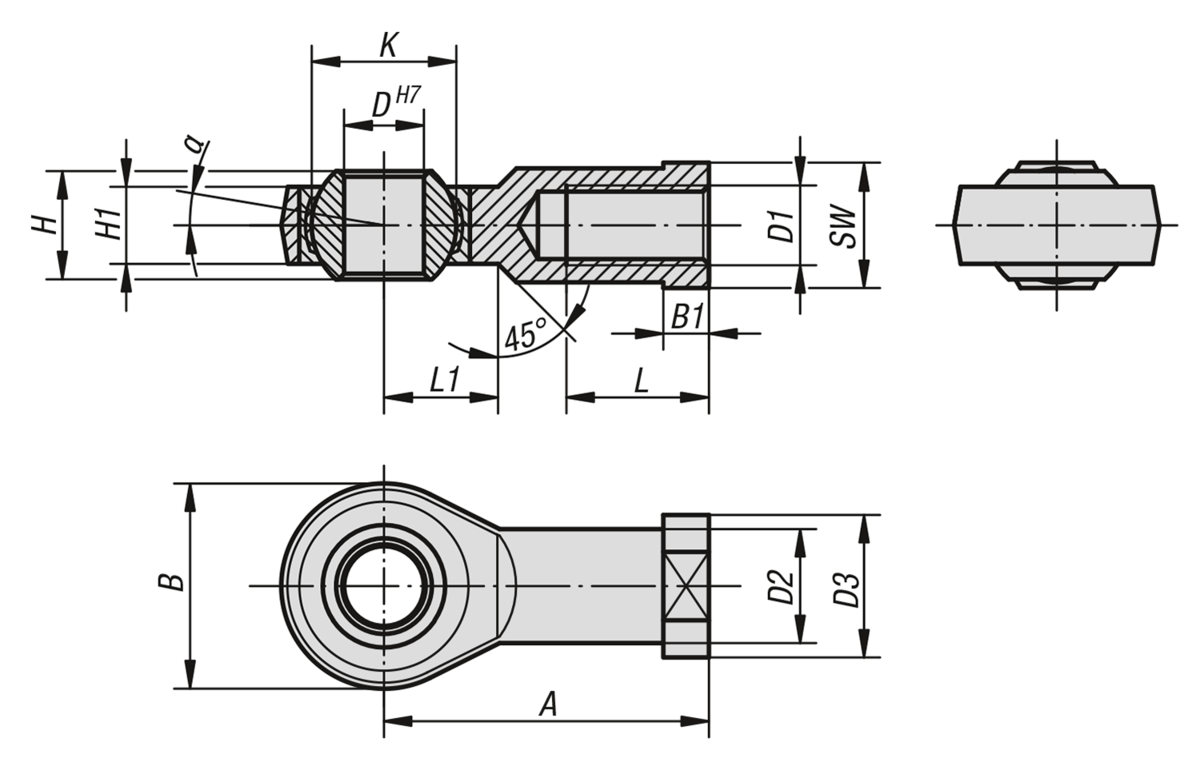

| D | D1 | D2 | D3 | A | B | B1 | H | H1 | K | L | L1 | SW | α | Dynamic
base loads
kN | Static
base loads
kN | CAD | Acc. | Price | Order |
|---|
| K0719.05 | rh thread | 5 | M5 | 9 | 11 | 27 | 18 | 4 | 8 | 6 | 11,11 | 10 | 10 | 9 | 13° | 7,5 | 8 |  | | 21.70 $ (USD) | | | K0719.06 | rh thread | 6 | M6 | 10 | 13 | 30 | 20 | 5 | 9 | 6,75 | 12,7 | 12 | 10 | 11 | 13° | 9,3 | 8,9 | | | 21.70 $ (USD) | | | K0719.08 | rh thread | 8 | M8 | 12,5 | 16 | 36 | 24 | 5 | 12 | 9 | 15,87 | 16 | 12 | 13 | 13° | 16,7 | 14,1 | | | 24.75 $ (USD) | | | K0719.10 | rh thread | 10 | M10 | 15 | 19 | 43 | 28 | 6,5 | 14 | 10,5 | 19,05 | 20 | 15 | 17 | 13° | 23,4 | 19,3 | | | 28.93 $ (USD) | | | K0719.10125 | rh thread | 10 | M10x1,25 | 15 | 19 | 43 | 28 | 6,5 | 14 | 10,5 | 19,05 | 20 | 15 | 17 | 13° | 23,4 | 19,3 | | | 28.93 $ (USD) | | | K0719.12 | rh thread | 12 | M12 | 17,5 | 22 | 50 | 32 | 6,5 | 16 | 12 | 22,22 | 22 | 16 | 19 | 13° | 32 | 23,5 | | | 37.75 $ (USD) | | | K0719.12125 | rh thread | 12 | M12x1,25 | 17,5 | 22 | 50 | 32 | 6,5 | 16 | 12 | 22,22 | 22 | 16 | 19 | 13° | 32 | 23,5 | | | 37.75 $ (USD) | | | K0719.16 | rh thread | 16 | M16 | 22 | 27 | 64 | 42 | 8 | 21 | 15 | 28,57 | 28 | 22 | 22 | 15° | 52,7 | 32 | | | 60.20 $ (USD) | | | K0719.1615 | rh thread | 16 | M16x1,5 | 22 | 27 | 64 | 42 | 8 | 21 | 15 | 28,57 | 28 | 22 | 22 | 15° | 52,7 | 32 | | | 60.20 $ (USD) | | | K0719.20 | rh thread | 20 | M20x1,5 | 27,5 | 34 | 77 | 50 | 10 | 25 | 18 | 34,92 | 33 | 26 | 32 | 15° | 78,1 | 43,8 | | | 83.91 $ (USD) | | | K0719.22 | rh thread | 22 | M22x1,5 | 30 | 37 | 84 | 54 | 12 | 28 | 20 | 38,1 | 37 | 26 | 32 | 15° | 97,2 | 52,6 | | | 96.37 $ (USD) | | | K0719.051 | lh thread | 5 | M5 | 9 | 11 | 27 | 18 | 4 | 8 | 6 | 11,11 | 10 | 10 | 9 | 13° | 7,5 | 8 | | | 21.70 $ (USD) | | | K0719.061 | lh thread | 6 | M6 | 10 | 13 | 30 | 20 | 5 | 9 | 6,75 | 12,7 | 12 | 10 | 11 | 13° | 9,3 | 8,9 | | | 21.70 $ (USD) | | | K0719.081 | lh thread | 8 | M8 | 12,5 | 16 | 36 | 24 | 5 | 12 | 9 | 15,87 | 16 | 12 | 13 | 13° | 16,7 | 14,1 | | | 24.75 $ (USD) | | | K0719.101 | lh thread | 10 | M10 | 15 | 19 | 43 | 28 | 6,5 | 14 | 10,5 | 19,05 | 20 | 15 | 17 | 13° | 23,4 | 19,3 | | | 28.93 $ (USD) | | | K0719.101251 | lh thread | 10 | M10x1,25 | 15 | 19 | 43 | 28 | 6,5 | 14 | 10,5 | 19,05 | 20 | 15 | 17 | 13° | 23,4 | 19,3 | | | 28.93 $ (USD) | | | K0719.121 | lh thread | 12 | M12 | 17,5 | 22 | 50 | 32 | 6,5 | 16 | 12 | 22,22 | 22 | 16 | 19 | 13° | 32 | 23,5 | | | 37.75 $ (USD) | | | K0719.121251 | lh thread | 12 | M12x1,25 | 17,5 | 22 | 50 | 32 | 6,5 | 16 | 12 | 22,22 | 22 | 16 | 19 | 13° | 32 | 23,5 | | | 37.75 $ (USD) | | | K0719.161 | lh thread | 16 | M16 | 22 | 27 | 64 | 42 | 8 | 21 | 15 | 28,57 | 28 | 22 | 22 | 15° | 52,7 | 32 | | | 60.20 $ (USD) | | | K0719.16151 | lh thread | 16 | M16x1,5 | 22 | 27 | 64 | 42 | 8 | 21 | 15 | 28,57 | 28 | 22 | 22 | 15° | 52,7 | 32 | | | 60.20 $ (USD) | | | K0719.201 | lh thread | 20 | M20x1,5 | 27,5 | 34 | 77 | 50 | 10 | 25 | 18 | 34,92 | 33 | 26 | 32 | 15° | 78,1 | 43,8 | | | 83.91 $ (USD) | | | K0719.221 | lh thread | 22 | M22x1,5 | 30 | 37 | 84 | 54 | 12 | 28 | 20 | 38,1 | 37 | 26 | 32 | 15° | 97,2 | 52,6 | | | 96.37 $ (USD) | |
