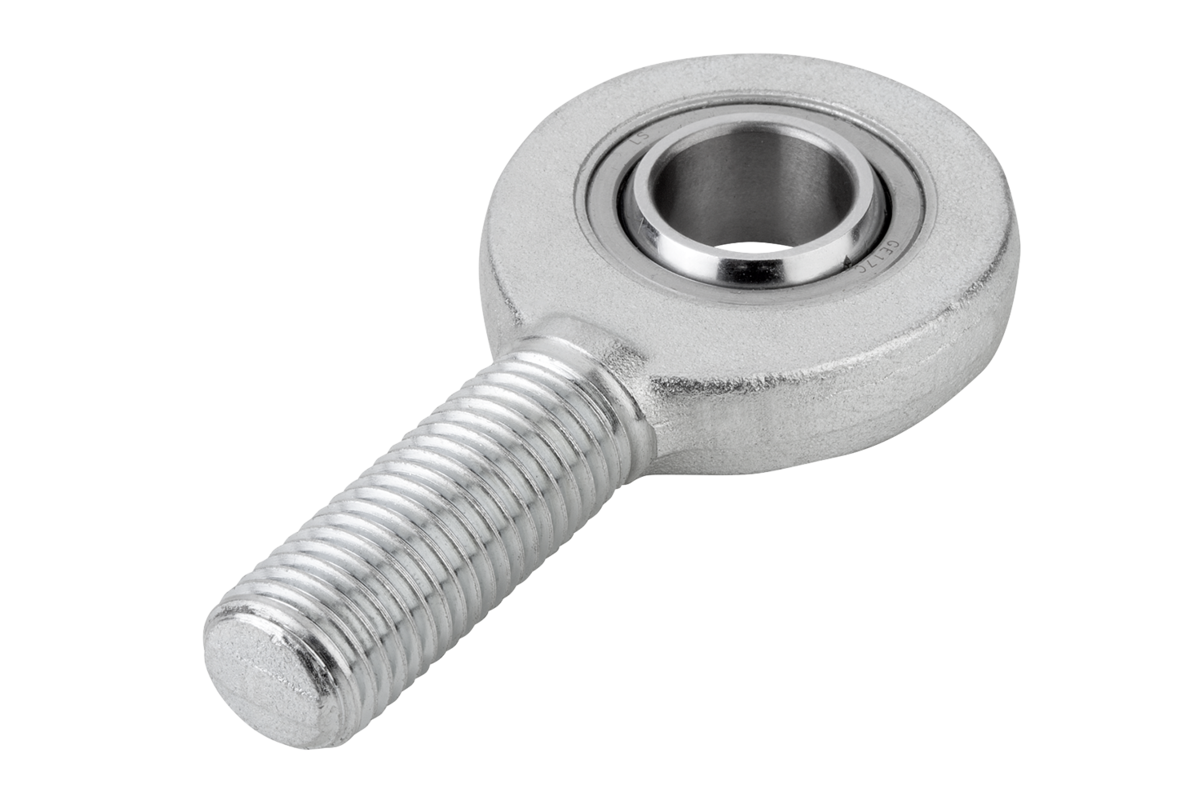

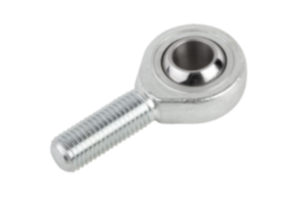

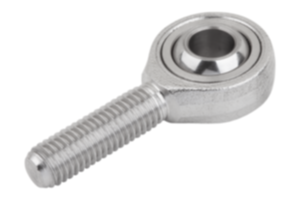

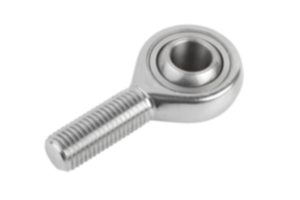

Rod ends with plain bearing external thread, narrow version, DIN ISO 12240-4

K0722

Rod ends with plain bearing external thread, narrow version,...

Products
- Joints
  - Rod ends with plain bearing external thread, narrow version, DIN ISO 12240-4

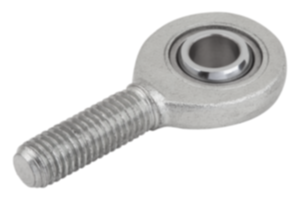

Item description/product images

DescriptionMaterial:Housing size (D) 6-10 turned steel.
From size (D) 12 forged steel.
Ball joint ball bearing steel, hardened, ground, polished and hard chromed.
Bearing shell ball bearing steel with PTFE weave glued in.Version:Electro zinc-plated.Note:The rod end bearing is maintenance-free.
The connection dimensions comply with DIN 648 style Series E.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0722 Rod ends with plain bearing external thread, narrow version, DIN ISO 12240-4

Drawings

Rod ends with plain bearing external thread, narrow version, DIN ISO 12240-4

Item selection/filter

Order No.	Version	D	D1	A	B	H	H1	K	L	L1	α	Dynamic base loads kN	Static base loads kN	CAD	Acc.	Price	Order
K0722.06	rh thread	6 -0,008	M6	36	20	6	4,4	10	18	11	12°	3,6	8,2			28.32 $ (USD)
K0722.08	rh thread	8 -0,008	M8	42	24	8	6	13	22	12	12°	5,8	12,9			30.85 $ (USD)
K0722.10	rh thread	10 -0,008	M10	48	28	9	7	16	26	15	12°	8,6	17,6			35.89 $ (USD)
K0722.12	rh thread	12 -0,008	M12	54	34	10	8	18	28	15	8°	11,4	24,5			42.39 $ (USD)
K0722.16	rh thread	17 -0,008	M16	69	46	14	11	25	36	23	8°	22	45			66.15 $ (USD)
K0722.20	rh thread	20 -0,010	M20x1,5	78	53	16	13	29	43	25	8°	31,5	60			79.64 $ (USD)
K0722.061	lh thread	6 -0,008	M6	36	20	6	4,4	10	18	11	12°	3,6	8,2			28.32 $ (USD)
K0722.081	lh thread	8 -0,008	M8	42	24	8	6	13	22	12	12°	5,8	12,9			30.85 $ (USD)
K0722.101	lh thread	10 -0,008	M10	48	28	9	7	16	26	15	12°	8,6	17,6			35.89 $ (USD)
K0722.121	lh thread	12 -0,008	M12	54	34	10	8	18	28	15	8°	11,4	24,5			42.39 $ (USD)
K0722.161	lh thread	17 -0,008	M16	69	46	14	11	25	36	23	8°	22	45			66.15 $ (USD)
K0722.201	lh thread	20 -0,010	M20x1,5	78	53	16	13	29	43	25	8°	31,5	60			79.64 $ (USD)
