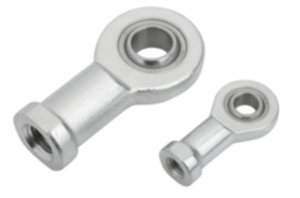

- Rod ends with plain bearing internal thread, narrow version, DIN ISO 12240-4
|
Item description/product images |
|
|
DescriptionMaterial:Housing size (D) 6-10 turned steel.
From size (D) 12 forged steel.
Ball joint ball bearing steel, hardened, ground, polished and hard chromed.
Bearing shell ball bearing steel with PTFE weave glued in.Version:Electro zinc-plated.Note:The rod end bearing is maintenance-free.
The connection dimensions comply with DIN 648 style Series E.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version

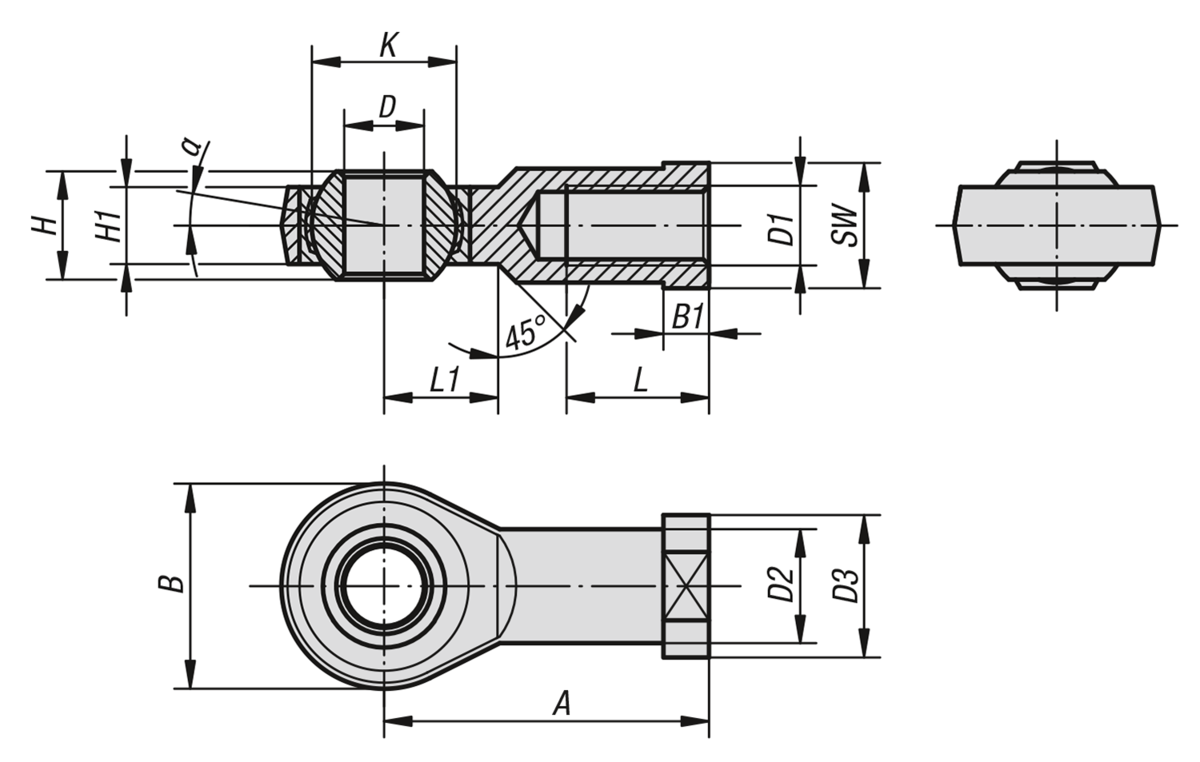

| D | D1 | D2 | D3 | A | B | B1 | H | H1 | K | L | L1 | SW | α | Dynamic
base loads
kN | Static
base loads
kN | CAD | Acc. | Price | Order |
|---|
| K0723.06 | rh thread | 6 -0,008 | M6 | 10 | 13 | 30 | 20 | 5 | 6 | 4,4 | 10 | 12 | 11 | 11 | 12° | 3,6 | 8,2 |  | | 31.15 $ (USD) | | | K0723.101251 | lh thread | 10 -0,008 | M10x1,25 | 15 | 19 | 43 | 28 | 6,5 | 9 | 7 | 16 | 20 | 13 | 17 | 12° | 8,6 | 17,6 | | | 39.48 $ (USD) | | | K0723.201 | lh thread | 20 -0,010 | M20x1,5 | 27,5 | 35 | 77 | 53 | 10 | 16 | 13 | 29 | 38 | 23 | 32 | 8° | 31,5 | 60 | | | 87.61 $ (USD) | | | K0723.081 | lh thread | 8 -0,008 | M8 | 12,5 | 16 | 36 | 24 | 5 | 8 | 6 | 13 | 16 | 12 | 14 | 12° | 5,8 | 12,9 | | | 33.95 $ (USD) | | | K0723.12 | rh thread | 12 -0,008 | M12 | 17,5 | 22 | 50 | 34 | 6,5 | 10 | 8 | 18 | 22 | 15 | 19 | 8° | 11,4 | 24,5 | | | 46.62 $ (USD) | | | K0723.121 | lh thread | 12 -0,008 | M12 | 17,5 | 22 | 50 | 34 | 6,5 | 10 | 8 | 18 | 22 | 15 | 19 | 8° | 11,4 | 24,5 | | | 46.62 $ (USD) | | | K0723.10125 | rh thread | 10 -0,008 | M10x1,25 | 15 | 19 | 43 | 28 | 6,5 | 9 | 7 | 16 | 20 | 13 | 17 | 12° | 8,6 | 17,6 | | | 39.48 $ (USD) | | | K0723.20 | rh thread | 20 -0,010 | M20x1,5 | 27,5 | 35 | 77 | 53 | 10 | 16 | 13 | 29 | 38 | 23 | 32 | 8° | 31,5 | 60 | | | 87.61 $ (USD) | | | K0723.101 | lh thread | 10 -0,008 | M10 | 15 | 19 | 43 | 28 | 6,5 | 9 | 7 | 16 | 20 | 13 | 17 | 12° | 8,6 | 17,6 | | | 39.48 $ (USD) | | | K0723.121251 | lh thread | 12 -0,008 | M12x1,25 | 17,5 | 22 | 50 | 34 | 6,5 | 10 | 8 | 18 | 22 | 15 | 19 | 8° | 11,4 | 24,5 | | | 46.62 $ (USD) | | | K0723.08 | rh thread | 8 -0,008 | M8 | 12,5 | 16 | 36 | 24 | 5 | 8 | 6 | 13 | 16 | 12 | 14 | 12° | 5,8 | 12,9 | | | 33.95 $ (USD) | | | K0723.061 | lh thread | 6 -0,008 | M6 | 10 | 13 | 30 | 20 | 5 | 6 | 4,4 | 10 | 12 | 11 | 11 | 12° | 3,6 | 8,2 | | | 31.15 $ (USD) | | | K0723.10 | rh thread | 10 -0,008 | M10 | 15 | 19 | 43 | 28 | 6,5 | 9 | 7 | 16 | 20 | 13 | 17 | 12° | 8,6 | 17,6 | | | 39.48 $ (USD) | | | K0723.12125 | rh thread | 12 -0,008 | M12x1,25 | 17,5 | 22 | 50 | 34 | 6,5 | 10 | 8 | 18 | 22 | 15 | 19 | 8° | 11,4 | 24,5 | | | 46.62 $ (USD) | | | K0723.161 | lh thread | 17 -0,008 | M16 | 24 | 30 | 67 | 46 | 10 | 14 | 11 | 25 | 33 | 20 | 27 | 8° | 22 | 45 | | | 72.77 $ (USD) | | | K0723.16 | rh thread | 17 -0,008 | M16 | 24 | 30 | 67 | 46 | 10 | 14 | 11 | 25 | 33 | 20 | 27 | 8° | 22 | 45 | | | 72.77 $ (USD) | |
