K1136Split pins DIN EN ISO 1234 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel 1.4310 (AISI 301 equivalent).Version:Steel electro zinc-plated.
Stainless steel bright.Note:Split pins are used in machine construction and automotive engineering as retaining elements. They are often used for securing castle nuts. After the split pin is pushed through a hole, the ends are bent over to ensure a secure lock.
The split pin can be shortened. As a rule, the split pin should be roughly double the length of the hole.
As the material structure can weaken through bending and straightening, the split pins should not be reused after they have been removed from the hole.Special features: DownloadHere is all the information as a PDF datasheet:

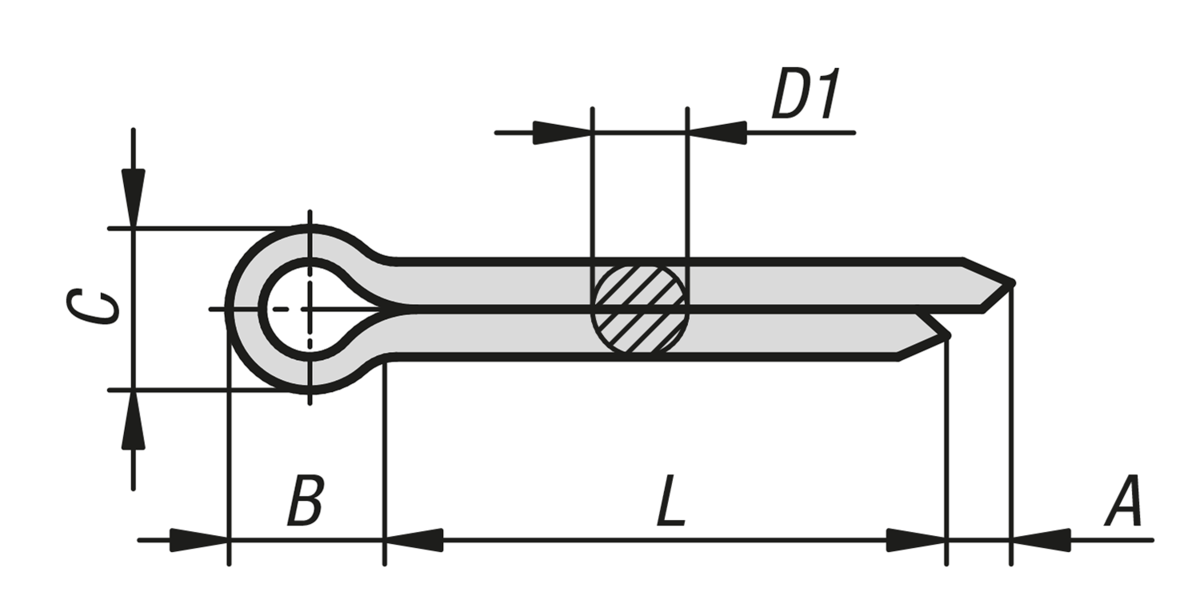

Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | Hole
diameters | D1
max. | L | A
min. | B | C
max. | for
screws
| for
screw Ø | CAD | Acc. | Price | Order |
|---|
| K1136.1010X10 | steel | 1 | 0,9 | 10 | 0,8 | 3 | 1,8 | 3,5-4,5 | 3-4 |  | | 0.50 $ (USD) | | | K1136.1010X12 | steel | 1 | 0,9 | 12 | 0,8 | 3 | 1,8 | 3,5-4,5 | 3-4 | | | 0.50 $ (USD) | | | K1136.1010X16 | steel | 1 | 0,9 | 16 | 0,8 | 3 | 1,8 | 3,5-4,5 | 3-4 | | | 0.50 $ (USD) | | | K1136.1010X20 | steel | 1 | 0,9 | 20 | 0,8 | 3 | 1,8 | 3,5-4,5 | 3-4 | | | 0.50 $ (USD) | | | K1136.1010X25 | steel | 1 | 0,9 | 25 | 0,8 | 3 | 1,8 | 3,5-4,5 | 3-4 | | | 0.50 $ (USD) | | | K1136.1016X12 | steel | 1,6 | 1,4 | 12 | 1,25 | 3,2 | 2,8 | 5,5-7 | 5-6 | | | 0.59 $ (USD) | | | K1136.1016X16 | steel | 1,6 | 1,4 | 16 | 1,25 | 3,2 | 2,8 | 5,5-7 | 5-6 | | | 0.59 $ (USD) | | | K1136.1016X20 | steel | 1,6 | 1,4 | 20 | 1,25 | 3,2 | 2,8 | 5,5-7 | 5-6 | | | 0.59 $ (USD) | | | K1136.1016X25 | steel | 1,6 | 1,4 | 25 | 1,25 | 3,2 | 2,8 | 5,5-7 | 5-6 | | | 0.59 $ (USD) | | | K1136.1016X32 | steel | 1,6 | 1,4 | 32 | 1,25 | 3,2 | 2,8 | 5,5-7 | 5-6 | | | 0.59 $ (USD) | | | K1136.1020X10 | steel | 2 | 1,8 | 10 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.70 $ (USD) | | | K1136.1020X16 | steel | 2 | 1,8 | 16 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.70 $ (USD) | | | K1136.1020X20 | steel | 2 | 1,8 | 20 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.70 $ (USD) | | | K1136.1020X25 | steel | 2 | 1,8 | 25 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.70 $ (USD) | | | K1136.1020X32 | steel | 2 | 1,8 | 32 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.70 $ (USD) | | | K1136.1020X36 | steel | 2 | 1,8 | 36 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.70 $ (USD) | | | K1136.1020X40 | steel | 2 | 1,8 | 40 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.70 $ (USD) | | | K1136.1020X50 | steel | 2 | 1,8 | 50 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.70 $ (USD) | | | K1136.1025X20 | steel | 2,5 | 2,3 | 20 | 1,25 | 5 | 4,6 | 9-11 | 8-9 | | | 0.80 $ (USD) | | | K1136.1025X25 | steel | 2,5 | 2,3 | 25 | 1,25 | 5 | 4,6 | 9-11 | 8-9 | | | 0.80 $ (USD) | | | K1136.1025X32 | steel | 2,5 | 2,3 | 32 | 1,25 | 5 | 4,6 | 9-11 | 8-9 | | | 0.80 $ (USD) | | | K1136.1025X36 | steel | 2,5 | 2,3 | 36 | 1,25 | 5 | 4,6 | 9-11 | 8-9 | | | 0.80 $ (USD) | | | K1136.1025X40 | steel | 2,5 | 2,3 | 40 | 1,25 | 5 | 4,6 | 9-11 | 8-9 | | | 0.80 $ (USD) | | | K1136.1025X50 | steel | 2,5 | 2,3 | 50 | 1,25 | 5 | 4,6 | 9-11 | 8-9 | | | 0.80 $ (USD) | | | K1136.1032X16 | steel | 3,2 | 2,9 | 16 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 0.91 $ (USD) | | | K1136.1032X20 | steel | 3,2 | 2,9 | 20 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 0.91 $ (USD) | | | K1136.1032X25 | steel | 3,2 | 2,9 | 25 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 0.91 $ (USD) | | | K1136.1032X32 | steel | 3,2 | 2,9 | 32 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 0.91 $ (USD) | | | K1136.1032X36 | steel | 3,2 | 2,9 | 36 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 0.91 $ (USD) | | | K1136.1032X40 | steel | 3,2 | 2,9 | 40 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 0.91 $ (USD) | | | K1136.1032X50 | steel | 3,2 | 2,9 | 50 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 0.91 $ (USD) | | | K1136.1032X63 | steel | 3,2 | 2,9 | 63 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 0.91 $ (USD) | | | K1136.1040X20 | steel | 4 | 3,7 | 20 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.04 $ (USD) | | | K1136.1040X25 | steel | 4 | 3,7 | 25 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.04 $ (USD) | | | K1136.1040X32 | steel | 4 | 3,7 | 32 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.04 $ (USD) | | | K1136.1040X36 | steel | 4 | 3,7 | 36 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.04 $ (USD) | | | K1136.1040X40 | steel | 4 | 3,7 | 40 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.04 $ (USD) | | | K1136.1040X50 | steel | 4 | 3,7 | 50 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.04 $ (USD) | | | K1136.1040X63 | steel | 4 | 3,7 | 63 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.04 $ (USD) | | | K1136.1040X80 | steel | 4 | 3,7 | 80 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.04 $ (USD) | | | K1136.1050X25 | steel | 5 | 4,6 | 25 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.30 $ (USD) | | | K1136.1050X32 | steel | 5 | 4,6 | 32 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.30 $ (USD) | | | K1136.1050X36 | steel | 5 | 4,6 | 36 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.30 $ (USD) | | | K1136.1050X40 | steel | 5 | 4,6 | 40 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.30 $ (USD) | | | K1136.1050X50 | steel | 5 | 4,6 | 50 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.30 $ (USD) | | | K1136.1050X63 | steel | 5 | 4,6 | 63 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.30 $ (USD) | | | K1136.1050X80 | steel | 5 | 4,6 | 80 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.30 $ (USD) | | | K1136.1063X32 | steel | 6,3 | 5,9 | 32 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 1.52 $ (USD) | | | K1136.1063X36 | steel | 6,3 | 5,9 | 36 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 1.52 $ (USD) | | | K1136.1063X40 | steel | 6,3 | 5,9 | 40 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 1.52 $ (USD) | | | K1136.1063X50 | steel | 6,3 | 5,9 | 50 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 1.52 $ (USD) | | | K1136.1063X63 | steel | 6,3 | 5,9 | 63 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 1.52 $ (USD) | | | K1136.1063X80 | steel | 6,3 | 5,9 | 80 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 1.52 $ (USD) | | | K1136.1063X100 | steel | 6,3 | 5,9 | 100 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 1.52 $ (USD) | | | K1136.1080X50 | steel | 8 | 7,5 | 50 | 2 | 16 | 15 | 39-56 | 29-44 | | | 1.62 $ (USD) | | | K1136.1080X63 | steel | 8 | 7,5 | 63 | 2 | 16 | 15 | 39-56 | 29-44 | | | 1.62 $ (USD) | | | K1136.1080X80 | steel | 8 | 7,5 | 80 | 2 | 16 | 15 | 39-56 | 29-44 | | | 1.62 $ (USD) | | | K1136.1080X100 | steel | 8 | 7,5 | 100 | 2 | 16 | 15 | 39-56 | 29-44 | | | 1.62 $ (USD) | | | K1136.2010X16 | stainless steel A2 | 1 | 0,9 | 16 | 0,8 | 3 | 1,8 | 3,5-4,5 | 3-4 | | | 0.59 $ (USD) | | | K1136.2010X20 | stainless steel A2 | 1 | 0,9 | 20 | 0,8 | 3 | 1,8 | 3,5-4,5 | 3-4 | | | 0.59 $ (USD) | | | K1136.2016X12 | stainless steel A2 | 1,6 | 1,4 | 12 | 1,25 | 3,2 | 2,8 | 5,5-7 | 5-6 | | | 0.72 $ (USD) | | | K1136.2016X16 | stainless steel A2 | 1,6 | 1,4 | 16 | 1,25 | 3,2 | 2,8 | 5,5-7 | 5-6 | | | 0.72 $ (USD) | | | K1136.2016X20 | stainless steel A2 | 1,6 | 1,4 | 20 | 1,25 | 3,2 | 2,8 | 5,5-7 | 5-6 | | | 0.72 $ (USD) | | | K1136.2016X25 | stainless steel A2 | 1,6 | 1,4 | 25 | 1,25 | 3,2 | 2,8 | 5,5-7 | 5-6 | | | 0.72 $ (USD) | | | K1136.2016X32 | stainless steel A2 | 1,6 | 1,4 | 32 | 1,25 | 3,2 | 2,8 | 5,5-7 | 5-6 | | | 0.72 $ (USD) | | | K1136.2020X10 | stainless steel A2 | 2 | 1,8 | 10 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.88 $ (USD) | | | K1136.2020X16 | stainless steel A2 | 2 | 1,8 | 16 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.88 $ (USD) | | | K1136.2020X20 | stainless steel A2 | 2 | 1,8 | 20 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.88 $ (USD) | | | K1136.2020X25 | stainless steel A2 | 2 | 1,8 | 25 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.88 $ (USD) | | | K1136.2020X32 | stainless steel A2 | 2 | 1,8 | 32 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.88 $ (USD) | | | K1136.2020X40 | stainless steel A2 | 2 | 1,8 | 40 | 1,25 | 4 | 3,6 | 7-9 | 6-8 | | | 0.88 $ (USD) | | | K1136.2025X20 | stainless steel A2 | 2,5 | 2,3 | 20 | 1,25 | 5 | 4,6 | 9-11 | 8-9 | | | 1.01 $ (USD) | | | K1136.2025X25 | stainless steel A2 | 2,5 | 2,3 | 25 | 1,25 | 5 | 4,6 | 9-11 | 8-9 | | | 1.01 $ (USD) | | | K1136.2025X32 | stainless steel A2 | 2,5 | 2,3 | 32 | 1,25 | 5 | 4,6 | 9-11 | 8-9 | | | 1.01 $ (USD) | | | K1136.2032X16 | stainless steel A2 | 3,2 | 2,9 | 16 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 1.14 $ (USD) | | | K1136.2032X20 | stainless steel A2 | 3,2 | 2,9 | 20 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 1.14 $ (USD) | | | K1136.2032X25 | stainless steel A2 | 3,2 | 2,9 | 25 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 1.14 $ (USD) | | | K1136.2032X32 | stainless steel A2 | 3,2 | 2,9 | 32 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 1.14 $ (USD) | | | K1136.2032X36 | stainless steel A2 | 3,2 | 2,9 | 36 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 1.14 $ (USD) | | | K1136.2032X40 | stainless steel A2 | 3,2 | 2,9 | 40 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 1.14 $ (USD) | | | K1136.2032X50 | stainless steel A2 | 3,2 | 2,9 | 50 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 1.14 $ (USD) | | | K1136.2032X63 | stainless steel A2 | 3,2 | 2,9 | 63 | 1,6 | 6,4 | 5,8 | 11-14 | 9-12 | | | 1.14 $ (USD) | | | K1136.2040X20 | stainless steel A2 | 4 | 3,7 | 20 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.36 $ (USD) | | | K1136.2040X25 | stainless steel A2 | 4 | 3,7 | 25 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.36 $ (USD) | | | K1136.2040X32 | stainless steel A2 | 4 | 3,7 | 32 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.36 $ (USD) | | | K1136.2040X40 | stainless steel A2 | 4 | 3,7 | 40 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.36 $ (USD) | | | K1136.2040X50 | stainless steel A2 | 4 | 3,7 | 50 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.36 $ (USD) | | | K1136.2040X63 | stainless steel A2 | 4 | 3,7 | 63 | 2 | 8 | 7,4 | 14-20 | 12-17 | | | 1.36 $ (USD) | | | K1136.2050X32 | stainless steel A2 | 5 | 4,6 | 32 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.89 $ (USD) | | | K1136.2050X36 | stainless steel A2 | 5 | 4,6 | 36 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.89 $ (USD) | | | K1136.2050X40 | stainless steel A2 | 5 | 4,6 | 40 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.89 $ (USD) | | | K1136.2050X50 | stainless steel A2 | 5 | 4,6 | 50 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.89 $ (USD) | | | K1136.2050X63 | stainless steel A2 | 5 | 4,6 | 63 | 2 | 10 | 9,2 | 20-27 | 17-23 | | | 1.89 $ (USD) | | | K1136.2063X36 | stainless steel A2 | 6,3 | 5,9 | 36 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 2.34 $ (USD) | | | K1136.2063X40 | stainless steel A2 | 6,3 | 5,9 | 40 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 2.34 $ (USD) | | | K1136.2063X50 | stainless steel A2 | 6,3 | 5,9 | 50 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 2.34 $ (USD) | | | K1136.2063X63 | stainless steel A2 | 6,3 | 5,9 | 63 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 2.34 $ (USD) | | | K1136.2063X80 | stainless steel A2 | 6,3 | 5,9 | 80 | 2 | 12,6 | 11,8 | 27-39 | 23-29 | | | 2.34 $ (USD) | | | K1136.2080X50 | stainless steel A2 | 8 | 7,5 | 50 | 2 | 16 | 15 | 39-56 | 29-44 | | | 2.75 $ (USD) | | | K1136.2080X80 | stainless steel A2 | 8 | 7,5 | 80 | 2 | 16 | 15 | 39-56 | 29-44 | | | 2.75 $ (USD) | | | K1136.2080X100 | stainless steel A2 | 8 | 7,5 | 100 | 2 | 16 | 15 | 39-56 | 29-44 | | | 2.75 $ (USD) | |
