Snap-in pins for clevis joints DIN 71752

K1139

Snap-in pins for clevis joints DIN 71752

Products
- Joints
  - Snap-in pins for clevis joints DIN 71752

Item description/product images

DescriptionMaterial:Pin, steel.
Spring, tempered leaf spring steel.Version:Electro zinc-plated.Note:For DIN 71752 clevis.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1139 Snap-in pins for clevis joints DIN 71752

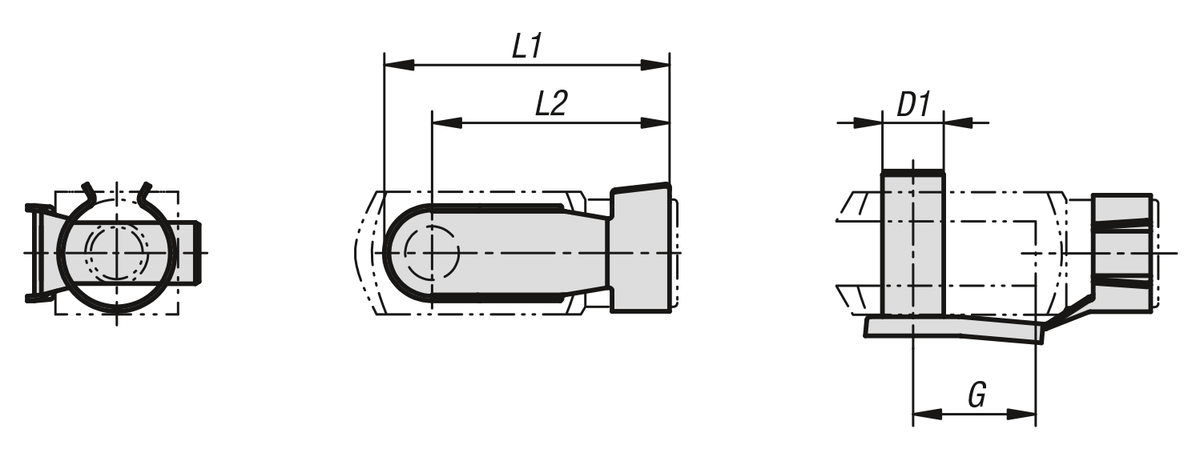

Drawings

Snap-in pins for clevis joints DIN 71752

Item selection/filter

Order No.	D1	G	L1	L2	CAD	Acc.	Price	Order
K1139.0408	4	8	18,5	15			2.59 $ (USD)
K1139.0510	5	10	23	19			1.93 $ (USD)
K1139.0612	6	12	28	23			2.00 $ (USD)
K1139.0816	8	16	37	30			2.39 $ (USD)
K1139.0832	8	32	52	46			2.59 $ (USD)
K1139.1020	10	20	46	38			3.20 $ (USD)
K1139.1040	10	40	66	58			3.47 $ (USD)
K1139.1224	12	24	53	45			4.79 $ (USD)
K1139.1248	12	48	78	69			5.13 $ (USD)
K1139.1428	14	28	62	52			7.47 $ (USD)
K1139.1632	16	32	73	62			7.76 $ (USD)
