Spherical bearings K/E series DIN ISO 12240-1

K1324

Spherical bearings K/E series DIN ISO 12240-1

Products
- Joints
  - Spherical bearings K/E series DIN ISO 12240-1

Item description/product images

DescriptionMaterial:Bearing shell stainless steel 1.4571 (AISI 316 Ti equivalent).
Ball joint stainless steel 1.4034 (AISI 420 equivalent).
Bearing surface PTFE/stainless steel insert. Version:Ground, polished. Note:Suitable for high dynamic loads. The fitting dimensions comply with DIN ISO 12240-1 E/K. Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1324 Spherical bearings K/E series DIN ISO 12240-1

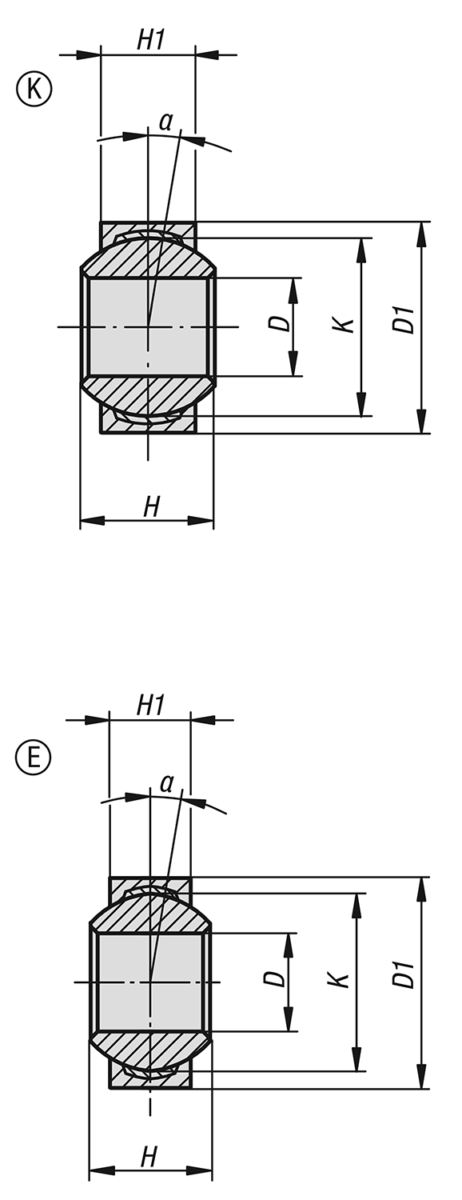

Drawings

Spherical bearings K/E series DIN ISO 12240-1

Item selection/filter

Item No.	Version 1	D	D1	H	H1	K	α	Dynamic load rating N	Static load rating N	Speed limit rpm	CAD	Acc.	Price	Order
K1324.10513	dimensional series k	5 H7	13 h7	8	6	11,11	13°	7500	12500	600			28.32 $ (USD)
K1324.20816	dimensional series e	8 -0,008	16 -0,008	8	5	13	15°	7000	15600	-			29.18 $ (USD)
K1324.21019	dimensional series e	10-0,008	19 -0,009	9	6	16	12°	10000	23400	-			37.12 $ (USD)
K1324.10818	dimensional series k	8 H7	18 h7	12	9	15,87	14°	16700	27800	420			32.00 $ (USD)
K1324.21630	dimensional series e	16 -0,008	30 -0,009	14	10	25	10°	39000	65000	-			67.18 $ (USD)
K1324.21222	dimensional series e	12 -0,008	22 -0,009	10	7	18	11°	14000	32000	-			47.01 $ (USD)
K1324.11021	dimensional series k	10 H7	21 h7	14	10,5	19,05	13°	23400	39000	350			39.49 $ (USD)
K1324.10615	dimensional series k	6 H7	15 h7	9	6,75	12,7	13°	9300	15500	530			28.32 $ (USD)
K1324.11631	dimensional series k	16 H7	31,5 h7	21	15	28,57	15°	52500	88000	230			62.05 $ (USD)
K1324.20614	dimensional series e	6 -0,008	14 -0,008	6	4	10	13°	4000	9000	-			29.79 $ (USD)
K1324.11224	dimensional series k	12 H7	24,5 h7	16	12	22,22	13°	32000	34500	300			43.15 $ (USD)
