K1454Pins with circlip groove, suitable for clevis |
go back |
|

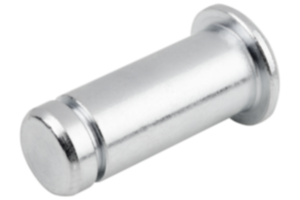

Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel 1.4301 (AISI 304 equivalent).Version:Electro zinc-plated steel.
Bright stainless steel.Note:Pin with groove, suitable for DIN 71752 clevis. Secured with a DIN 6799 E-type circlip (alternatively a KL or SL clip).
When combined with a suitable clevis and tang, styles a fully functional clevis joint.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

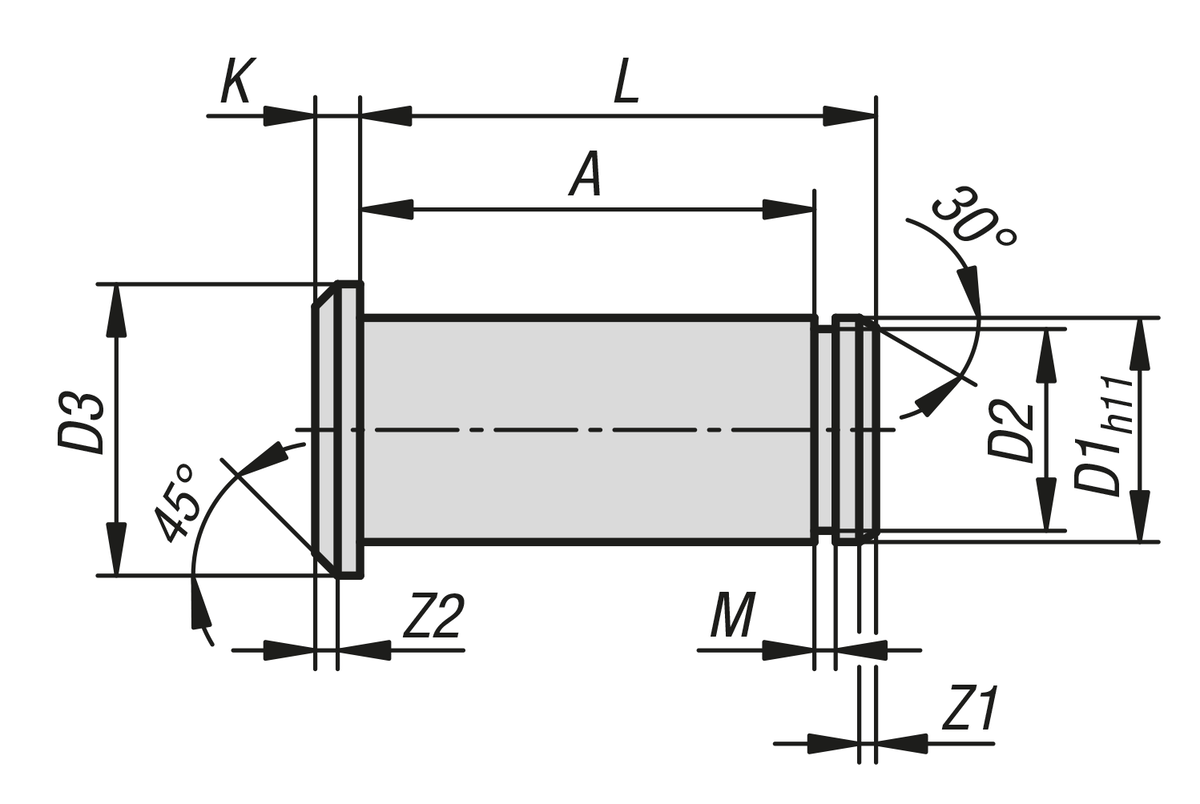

| Order No. | Main
material | D1
| D2 | D3 | A | K | L | M | Z1 | Z2 | CAD | Acc. | Price | Order |
|---|
| K1454.004085 | steel | 4 | 3,2 | 6 | 8,5 | 1 | 10,5 | 0,64 | 0,5 | 0,5 |  | | 1.03 $ (USD) | | | K1454.005105 | steel | 5 | 4 | 8 | 10,5 | 1,5 | 13 | 0,74 | 0,5 | 0,5 | | | 1.19 $ (USD) | | | K1454.006125 | steel | 6 | 5 | 9 | 12,5 | 1,5 | 15,5 | 0,74 | 1 | 0,5 | | | 1.12 $ (USD) | | | K1454.008165 | steel | 8 | 6 | 12 | 16,5 | 2 | 20 | 0,94 | 0,5 | 1 | | | 1.76 $ (USD) | | | K1454.010205 | steel | 10 | 8 | 14 | 20,5 | 2 | 25 | 1,05 | 1 | 1 | | | 2.03 $ (USD) | | | K1454.012245 | steel | 12 | 9 | 17 | 24,5 | 3 | 30 | 1,15 | 1 | 1,5 | | | 2.23 $ (USD) | | | K1454.014275 | steel | 14 | 10 | 19 | 27,5 | 3 | 33 | 1,25 | 1,25 | 1,5 | | | 4.19 $ (USD) | | | K1454.016325 | steel | 16 | 12 | 21 | 32,5 | 3 | 38,5 | 1,35 | 1,5 | 1,5 | | | 2.43 $ (USD) | | | K1454.020405 | steel | 20 | 17,5 | 26 | 40,5 | 4 | 46 | 1,9 | 1,5 | 2 | | | 8.87 $ (USD) | | | K1454.025505 | steel | 25 | 18 | 32 | 50,5 | 5 | 57 | 1,9 | 1,5 | 2 | | | 15.17 $ (USD) | | | K1454.104085 | stainless steel | 4 | 3,2 | 6 | 8,5 | 1 | 10,5 | 0,64 | 0,5 | 0,5 | | | 2.16 $ (USD) | | | K1454.105105 | stainless steel | 5 | 4 | 8 | 10,5 | 1,5 | 13 | 0,74 | 0,5 | 0,5 | | | 1.78 $ (USD) | | | K1454.106125 | stainless steel | 6 | 5 | 9 | 12,5 | 1,5 | 15,5 | 0,74 | 1 | 0,5 | | | 2.47 $ (USD) | | | K1454.108165 | stainless steel | 8 | 6 | 12 | 16,5 | 2 | 20 | 0,94 | 0,5 | 1 | | | 2.83 $ (USD) | | | K1454.110205 | stainless steel | 10 | 8 | 14 | 20,5 | 2 | 25 | 1,05 | 1 | 1 | | | 3.33 $ (USD) | | | K1454.112245 | stainless steel | 12 | 9 | 17 | 24,5 | 3 | 30 | 1,15 | 1 | 1,5 | | | 11.70 $ (USD) | | | K1454.114275 | stainless steel | 14 | 10 | 19 | 27,5 | 3 | 33 | 1,25 | 1,25 | 1,5 | | | 13.68 $ (USD) | | | K1454.116325 | stainless steel | 16 | 12 | 21 | 32,5 | 3 | 38,5 | 1,35 | 1,5 | 1,5 | | | 16.15 $ (USD) | | | K1454.120405 | stainless steel | 20 | 17,5 | 26 | 40,5 | 4 | 46 | 1,9 | 1,5 | 2 | | | 35.15 $ (USD) | |
