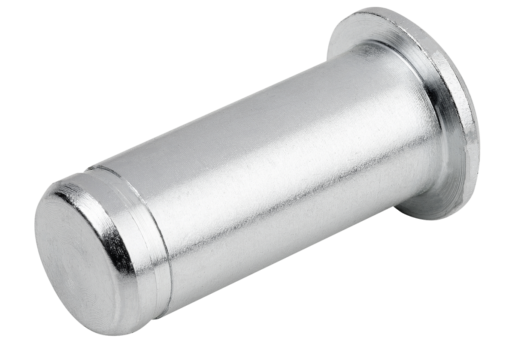

K1455Pins with circlip groove suitable for clevis |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel 1.4301 (AISI 304 equivalent).Version:Electro zinc-plated steel.
Bright stainless steel.Note:Pins with groove suitable for DIN 71752 clevis. Secured with a DIN 471 circlip.
When combined with a suitable clevis and tang, styles a fully functional clevis joint.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

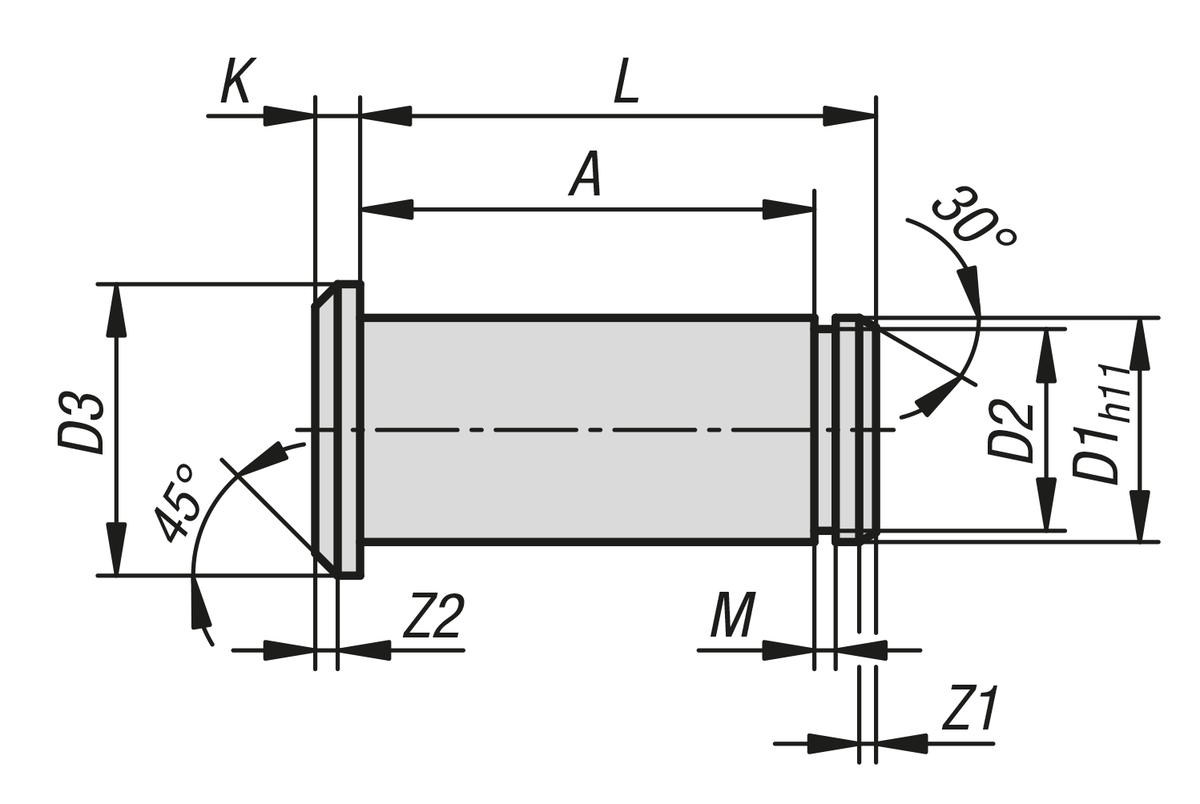

| Order No. | Main
material | D1
| D2 | D3 | A | K | L | M | Z1 | Z2 | CAD | Acc. | Price | Order |
|---|
| K1455.004085 | steel | 4 | 3,8 | 6 | 8,5 | 1 | 10 | 0,5 | 0,5 | 0,5 |  | | 11.14 $ (USD) | | | K1455.005105 | steel | 5 | 4,8 | 8 | 10,5 | 1,5 | 12,5 | 0,7 | 0,5 | 0,5 | | | 11.86 $ (USD) | | | K1455.006125 | steel | 6 | 5,7 | 9 | 12,5 | 1,5 | 15,5 | 0,8 | 0,75 | 0,5 | | | 10.24 $ (USD) | | | K1455.008165 | steel | 8 | 7,6 | 12 | 16,5 | 2 | 20,5 | 0,9 | 1 | 1 | | | 14.31 $ (USD) | | | K1455.010205 | steel | 10 | 9,6 | 14 | 20,5 | 2 | 24 | 1,1 | 1 | 1 | | | 15.55 $ (USD) | | | K1455.012245 | steel | 12 | 11,5 | 17 | 24,5 | 3 | 28 | 1,1 | 1,25 | 1,5 | | | 17.21 $ (USD) | | | K1455.014275 | steel | 14 | 13,4 | 19 | 27,5 | 3 | 32 | 1,1 | 1,25 | 1,5 | | | 20.20 $ (USD) | | | K1455.016325 | steel | 16 | 15,2 | 21 | 32,5 | 3 | 37 | 1,1 | 1,5 | 1,5 | | | 14.20 $ (USD) | | | K1455.020405 | steel | 20 | 19 | 26 | 40,5 | 4 | 46 | 1,3 | 1,5 | 2 | | | 20.68 $ (USD) | | | K1455.104085 | stainless steel | 4 | 3,8 | 6 | 8,5 | 1 | 10 | 0,5 | 0,5 | 0,5 | | | 14.85 $ (USD) | | | K1455.105105 | stainless steel | 5 | 4,8 | 8 | 10,5 | 1,5 | 12,5 | 0,7 | 0,5 | 0,5 | | | 5.42 $ (USD) | | | K1455.106125 | stainless steel | 6 | 5,7 | 9 | 12,5 | 1,5 | 15,5 | 0,8 | 0,75 | 0,5 | | | 20.34 $ (USD) | | | K1455.108165 | stainless steel | 8 | 7,6 | 12 | 16,5 | 2 | 20,5 | 0,9 | 1 | 1 | | | 11.41 $ (USD) | | | K1455.110205 | stainless steel | 10 | 9,6 | 14 | 20,5 | 2 | 24 | 1,1 | 1 | 1 | | | 9.05 $ (USD) | | | K1455.112245 | stainless steel | 12 | 11,5 | 17 | 24,5 | 3 | 28 | 1,1 | 1,25 | 1,5 | | | 25.81 $ (USD) | | | K1455.116325 | stainless steel | 16 | 15,2 | 21 | 32,5 | 3 | 37 | 1,1 | 1,5 | 1,5 | | | 18.68 $ (USD) | | | K1455.120405 | stainless steel | 20 | 19 | 26 | 40,5 | 4 | 46 | 1,3 | 1,5 | 2 | | | 27.07 $ (USD) | |
