Rod ends with ball bearing external thread, DIN ISO 12240-4
K0716

Rod ends with ball bearing external thread, DIN ISO 12240-4

go back

Item description/product images

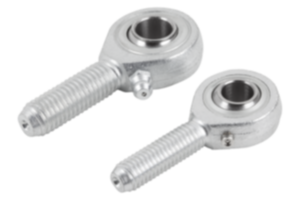

DescriptionMaterial:Casing drop-forged steel, tempered.Version:Electro zinc-plated.
Bearing play 15 - 40 µm.
Note:The hardened ball bearing is long-term greased and sealed with cover washers. The connection dimensions comply with DIN 648 series KA.
Rod ends are primarily used where movement processes are transmitted and there is no exact alignment.
Up to D = 10 the rod ends have a DIN 3405/A flush type grease nipple.
From D = 12 they have a DIN 71412/A conical head type grease nipple.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0716 Rod ends with ball bearing external thread, DIN ISO 12240-4 197 kB

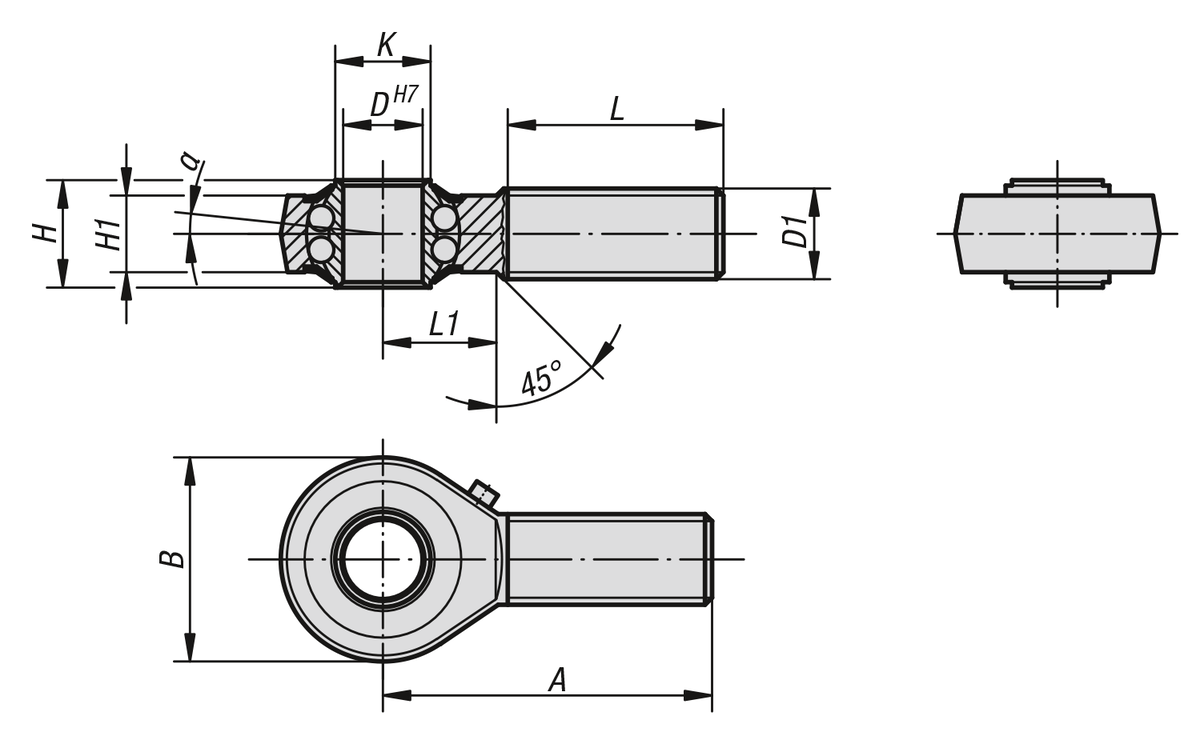

Drawings

Rod ends with ball bearing external thread, DIN ISO 12240-4
