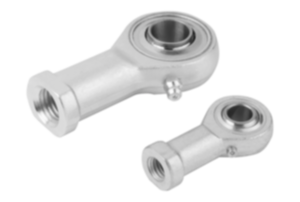

Rod ends with ball bearing internal thread, DIN ISO 12240-4

Rod ends with ball bearing internal thread, DIN ISO 12240-4

go back

Item description/product images

DescriptionMaterial:Casing drop-forged steel, tempered.Version:Electro zinc-plated.
Bearing play 15 - 40 µm.
Note:The hardened ball bearing is long-term greased and sealed with cover washers. The connection dimensions comply with DIN 648 style Series KA.
Up to D = 10 the rod ends have a DIN 3405/A flush type grease nipple.
From D = 12 they have a DIN 71412/A conical head type grease nipple.
Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0717 Rod ends with ball bearing internal thread, DIN ISO 12240-4 230 kB

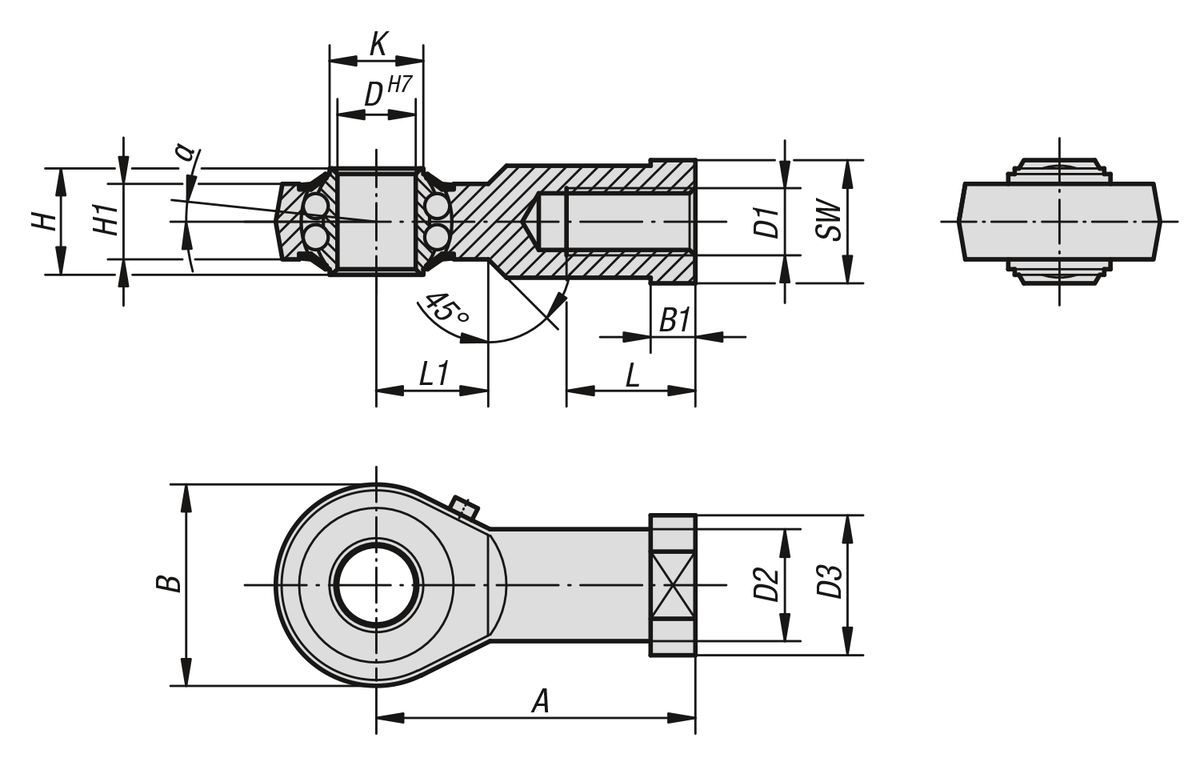

Rod ends with ball bearing internal thread, DIN ISO 12240-4

Item selection/filter

Order No.Version

load rating
load rating
Rev. limit
n max. rpm
K0717.06rh thread6M610133020596,75912101127506501350 65.57 $ (USD)
K0717.08rh thread8M812,5163624512910,51612148,5°400010001300 73.34 $ (USD)
K0717.10rh thread10M10151943286,51410,512201517445014501225 84.19 $ (USD)
K0717.12rh thread12M1217,52250326,5161214,52216197,5°495018001125 98.46 $ (USD)
K0717.16rh thread16M1622276442821151928222262502350975 127.14 $ (USD)
K0717.20rh thread20M20x1,527,534775010251824,533263079003450825 161.50 $ (USD)
K0717.22rh thread22M22x1,5303884541228202637263293003980725 181.26 $ (USD)
K0717.061lh thread6M610133020596,75912101127506501350 65.57 $ (USD)
K0717.081lh thread8M812,5163624512910,51612148,5°400010001300 73.34 $ (USD)
K0717.101lh thread10M10151943286,51410,512201517445014501225 84.19 $ (USD)
K0717.121lh thread12M1217,52250326,5161214,52216197,5°495018001125 98.46 $ (USD)
K0717.161lh thread16M1622276442821151928222262502350975 127.14 $ (USD)
K0717.201lh thread20M20x1,527,534775010251824,533263079003450825 161.50 $ (USD)
K0717.221lh thread22M22x1,5303884541228202637263293003980725 181.26 $ (USD)
