K0718Rod ends with plain bearing external thread, DIN ISO 12240-4 |
go back |
- Products
- Joints
- Rod ends with plain bearing external thread, DIN ISO 12240-4
|

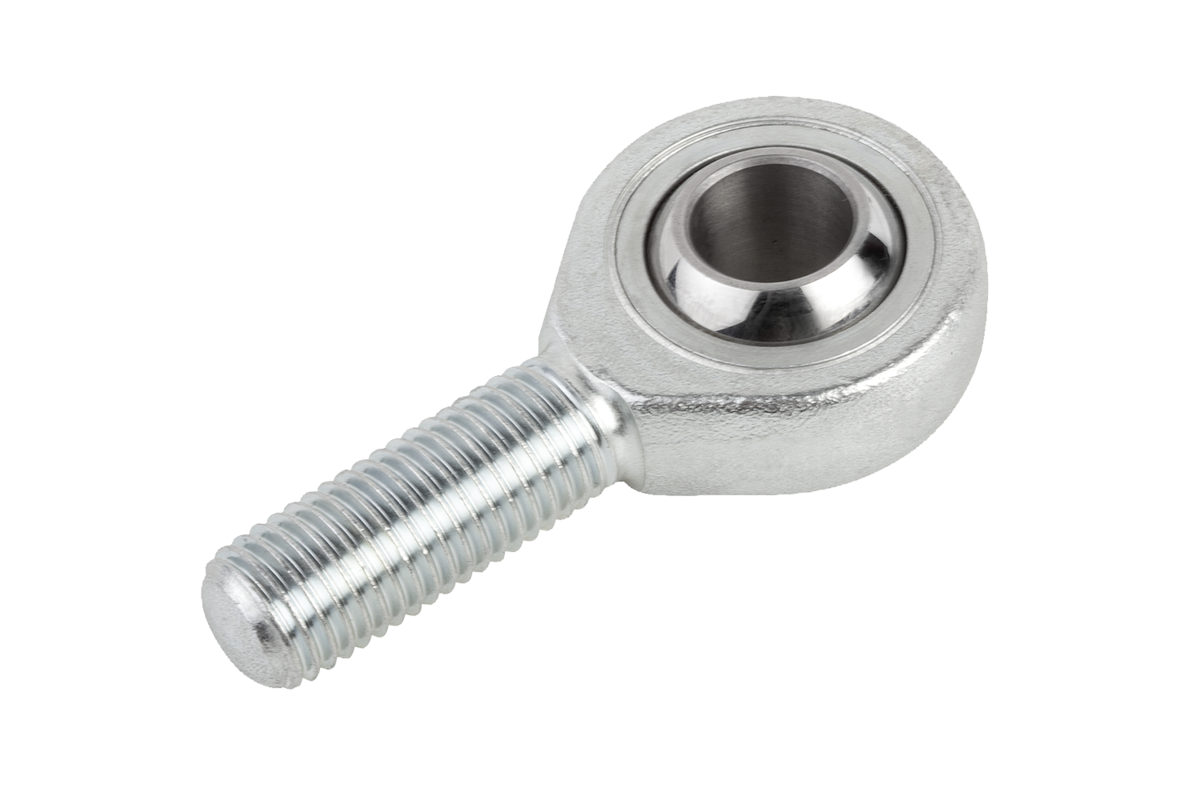

Item description/product images |
|
|
DescriptionMaterial:Housing size (D) 5-12 turned steel.
From size (D) 16 forged steel.
Ball joint ball bearing steel, hardened, ground and polished.
Bearing shell steel with PTFE weave glued in.Version:Electro zinc-plated.Note:The rod end bearing is maintenance-free. The connection dimensions comply with DIN 648 series KA.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

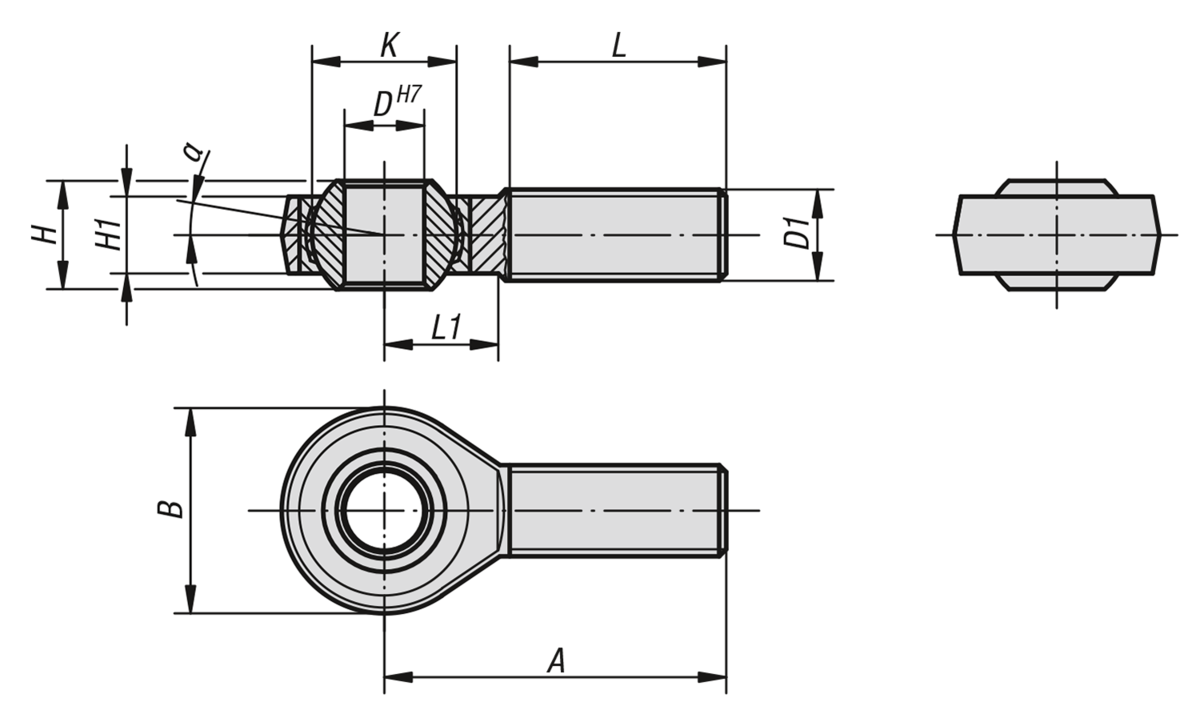

| Order No. | Version
| D | D1 | A | B | H | H1 | K | L | L1 | α | Dynamic
base loads
kN | Static
base loads
kN | CAD | Acc. | Price | Order |
|---|
| K0718.05 | rh thread | 5 | M5 | 33 | 18 | 8 | 6 | 11,11 | 20 | 9 | 13° | 7,5 | 4,3 |  | | 18.08 $ (USD) | | | K0718.06 | rh thread | 6 | M6 | 36 | 20 | 9 | 6,75 | 12,7 | 22 | 12 | 13° | 9,3 | 6 | | | 18.08 $ (USD) | | | K0718.08 | rh thread | 8 | M8 | 42 | 24 | 12 | 9 | 15,87 | 25 | 15 | 13° | 16,7 | 11 | | | 20.63 $ (USD) | | | K0718.10 | rh thread | 10 | M10 | 48 | 28 | 14 | 10,5 | 19,05 | 29 | 15 | 13° | 23,4 | 17,4 | | | 24.82 $ (USD) | | | K0718.12 | rh thread | 12 | M12 | 54 | 32 | 16 | 12 | 22,22 | 33 | 19 | 13° | 32 | 23,5 | | | 31.45 $ (USD) | | | K0718.16 | rh thread | 16 | M16 | 66 | 42 | 21 | 15 | 28,57 | 40 | 22 | 15° | 52,7 | 32 | | | 50.17 $ (USD) | | | K0718.20 | rh thread | 20 | M20x1,5 | 78 | 50 | 25 | 18 | 34,92 | 47 | 28 | 15° | 78,1 | 43,8 | | | 69.93 $ (USD) | | | K0718.22 | rh thread | 22 | M22x1,5 | 84 | 54 | 28 | 20 | 38,1 | 51 | 26 | 15° | 97,2 | 52,6 | | | 80.33 $ (USD) | | | K0718.051 | lh thread | 5 | M5 | 33 | 18 | 8 | 6 | 11,11 | 20 | 9 | 13° | 7,5 | 4,3 | | | 18.08 $ (USD) | | | K0718.061 | lh thread | 6 | M6 | 36 | 20 | 9 | 6,75 | 12,7 | 22 | 12 | 13° | 9,3 | 6 | | | 18.08 $ (USD) | | | K0718.081 | lh thread | 8 | M8 | 42 | 24 | 12 | 9 | 15,87 | 25 | 15 | 13° | 16,7 | 11 | | | 20.63 $ (USD) | | | K0718.101 | lh thread | 10 | M10 | 48 | 28 | 14 | 10,5 | 19,05 | 29 | 15 | 13° | 23,4 | 17,4 | | | 24.82 $ (USD) | | | K0718.121 | lh thread | 12 | M12 | 54 | 32 | 16 | 12 | 22,22 | 33 | 19 | 13° | 32 | 23,5 | | | 31.45 $ (USD) | | | K0718.161 | lh thread | 16 | M16 | 66 | 42 | 21 | 15 | 28,57 | 40 | 22 | 15° | 52,7 | 32 | | | 50.17 $ (USD) | | | K0718.201 | lh thread | 20 | M20x1,5 | 78 | 50 | 25 | 18 | 34,92 | 47 | 28 | 15° | 78,1 | 43,8 | | | 69.93 $ (USD) | | | K0718.221 | lh thread | 22 | M22x1,5 | 84 | 54 | 28 | 20 | 38,1 | 51 | 26 | 15° | 97,2 | 52,6 | | | 80.33 $ (USD) | |
