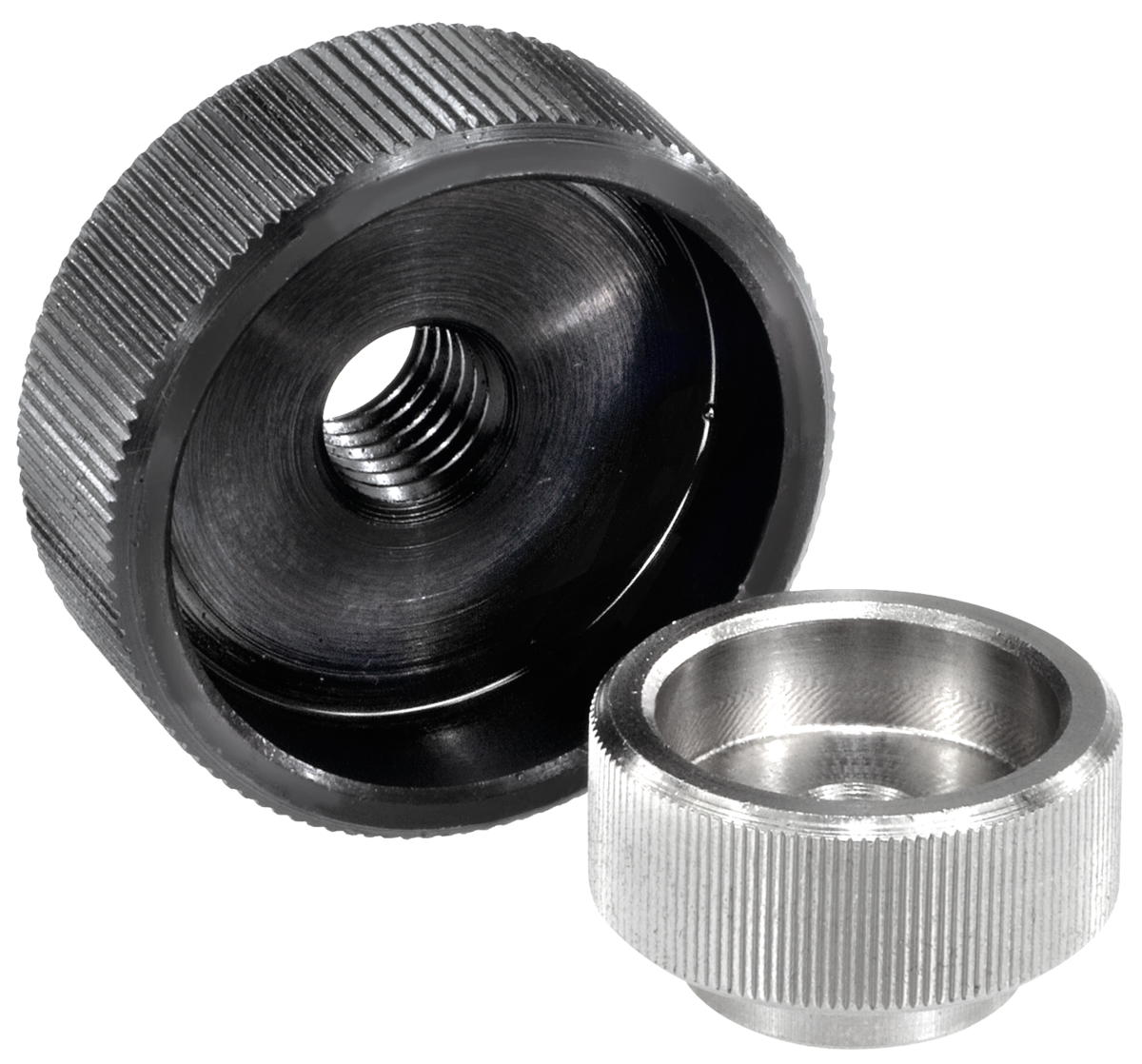

Knurled Knobs in steel or stainless steel, DIN 6303, metric
K0137_IG Metric

Knurled Knobs in steel or stainless steel, DIN 6303, metric

go back

Item description/product images

DescriptionMaterial:Free-cutting steel 1.0718.
Stainless steel 1.4305.
Version:Free-cutting steel black oxide finish.
Stainless steel natural finish.

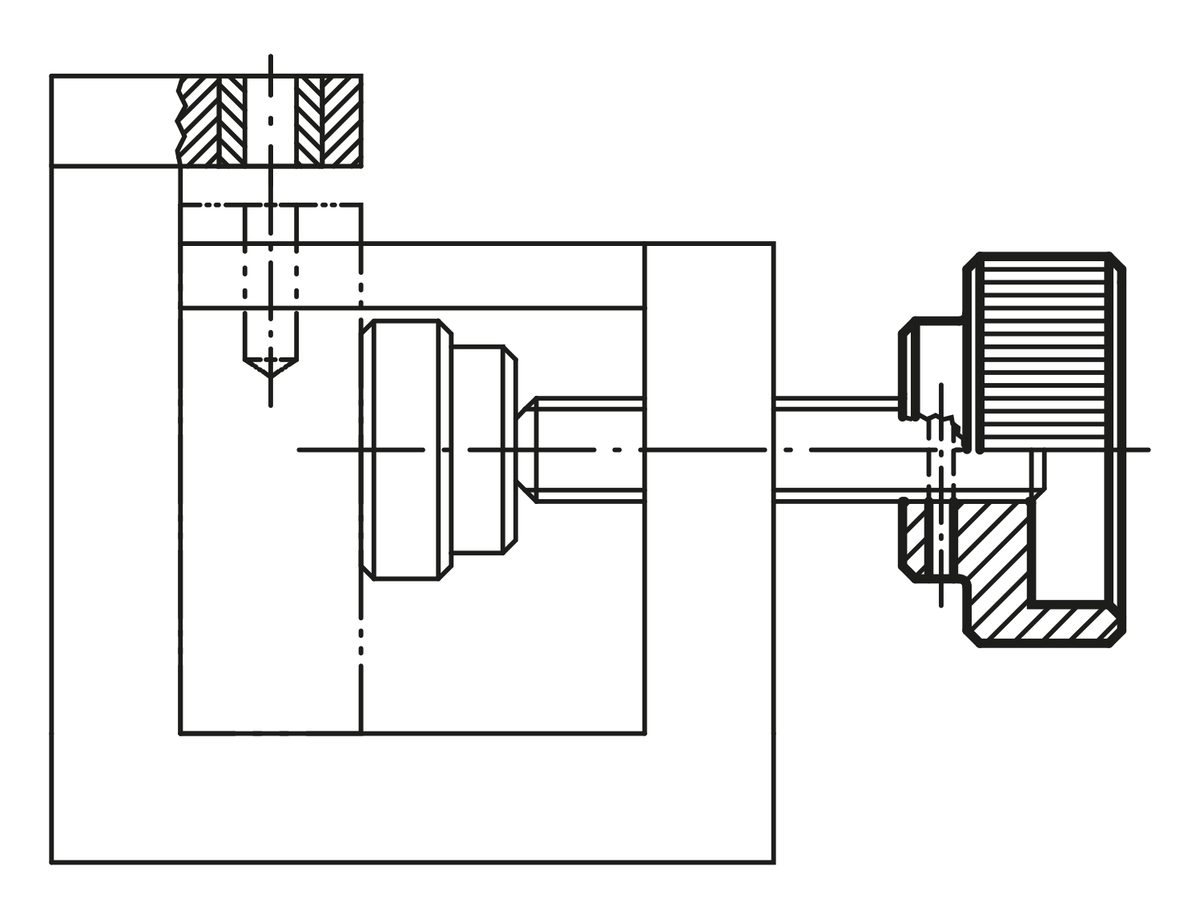

Drawing reference:
Style A: without pin hole

Drawings

Knurled Knobs in steel or stainless steel, DIN 6303, metric

Item selection/filter

Item No.

Base
material
D1D2D3D4HKTCADAcc.PriceOrder
K0137.105Free-cutting steelM52014151285 on request
K0137.106Free-cutting steelM624161814106 on request
K0137.108Free-cutting steelM830202417127 on request
K0137.110Free-cutting steelM1036283020148 on request
K0137.112Free-cutting steelM12403234241610 on request
K0137.1052Stainless steelM52014151285 on request
K0137.1062Stainless steelM624161814106 on request
K0137.1082Stainless steelM830202417127 on request
K0137.1102Stainless steelM1036283020148 on request
K0137.1122Stainless steelM12403234241610 on request
