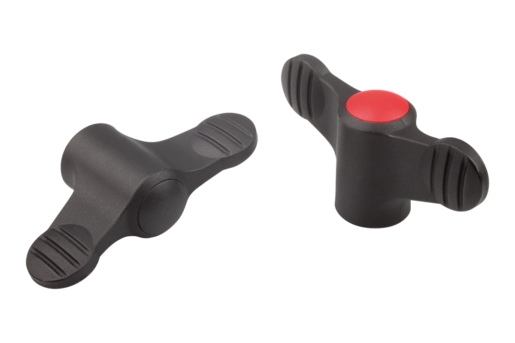

K0274_IG MetricWing Grips, internal thread, metric |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Black thermoplastic.
bushing grade 5.8 steel or 1.4305 (AISI 303 equivalent) stainless steel.Version:Steel trivalent blue passivated, stainless steel bright.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Component
material | color
Cap
| A | D | D2 | B | H | H1 | T | CAD | Acc. | Price | Order |
|---|

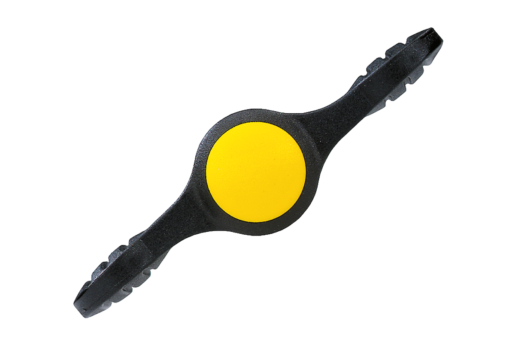

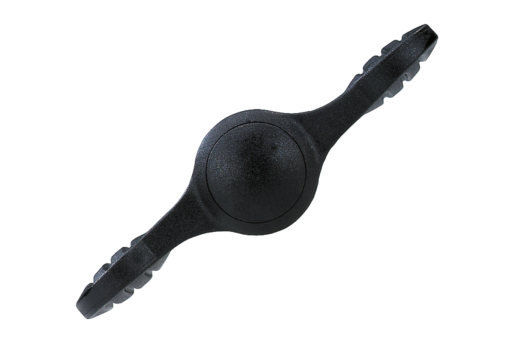

| K0274.904 | steel | black gray RAL 7021 | 38 | M4 | 12 | 4,5 | 18 | 8,5 | 10 |  | | 2.04 $ (USD) | | | K0274.9045 | steel | light gray RAL 7035 | 38 | M4 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.9046 | steel | traffic red RAL 3020 | 38 | M4 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.9047 | steel | colza yellow RAL 1021 | 38 | M4 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.905 | steel | black gray RAL 7021 | 38 | M5 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.9055 | steel | light gray RAL 7035 | 38 | M5 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.9056 | steel | traffic red RAL 3020 | 38 | M5 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.9057 | steel | colza yellow RAL 1021 | 38 | M5 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.906 | steel | black gray RAL 7021 | 38 | M6 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.9065 | steel | light gray RAL 7035 | 38 | M6 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.9066 | steel | traffic red RAL 3020 | 38 | M6 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.9067 | steel | colza yellow RAL 1021 | 38 | M6 | 12 | 4,5 | 18 | 8,5 | 10 | | | 2.04 $ (USD) | | | K0274.105 | steel | black gray RAL 7021 | 50 | M5 | 14 | 5 | 24 | 11,5 | 10 | | | 2.16 $ (USD) | | | K0274.1055 | steel | light gray RAL 7035 | 50 | M5 | 14 | 5 | 24 | 11,5 | 10 | | | 2.16 $ (USD) | | | K0274.1056 | steel | traffic red RAL 3020 | 50 | M5 | 14 | 5 | 24 | 11,5 | 10 | | | 2.16 $ (USD) | | | K0274.1057 | steel | colza yellow RAL 1021 | 50 | M5 | 14 | 5 | 24 | 11,5 | 10 | | | 2.16 $ (USD) | | | K0274.106 | steel | black gray RAL 7021 | 50 | M6 | 14 | 5 | 24 | 11,5 | 10 | | | 2.16 $ (USD) | | | K0274.1065 | steel | light gray RAL 7035 | 50 | M6 | 14 | 5 | 24 | 11,5 | 10 | | | 2.16 $ (USD) | | | K0274.1066 | steel | traffic red RAL 3020 | 50 | M6 | 14 | 5 | 24 | 11,5 | 10 | | | 2.16 $ (USD) | | | K0274.1067 | steel | colza yellow RAL 1021 | 50 | M6 | 14 | 5 | 24 | 11,5 | 10 | | | 2.16 $ (USD) | | | K0274.208 | steel | black gray RAL 7021 | 75 | M8 | 21 | 7 | 35,6 | 16,5 | 14 | | | 3.74 $ (USD) | | | K0274.2085 | steel | light gray RAL 7035 | 75 | M8 | 21 | 7 | 35,6 | 16,5 | 14 | | | 3.74 $ (USD) | | | K0274.2086 | steel | traffic red RAL 3020 | 75 | M8 | 21 | 7 | 35,6 | 16,5 | 14 | | | 3.74 $ (USD) | | | K0274.2087 | steel | colza yellow RAL 1021 | 75 | M8 | 21 | 7 | 35,6 | 16,5 | 14 | | | 3.74 $ (USD) | | | K0274.210 | steel | black gray RAL 7021 | 75 | M10 | 21 | 7 | 35,6 | 16,5 | 14 | | | 3.74 $ (USD) | | | K0274.2105 | steel | light gray RAL 7035 | 75 | M10 | 21 | 7 | 35,6 | 16,5 | 14 | | | 3.74 $ (USD) | | | K0274.2106 | steel | traffic red RAL 3020 | 75 | M10 | 21 | 7 | 35,6 | 16,5 | 14 | | | 3.74 $ (USD) | | | K0274.2107 | steel | colza yellow RAL 1021 | 75 | M10 | 21 | 7 | 35,6 | 16,5 | 14 | | | 3.74 $ (USD) | | | K0274.0904 | stainless steel | black gray RAL 7021 | 38 | M4 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.09045 | stainless steel | light gray RAL 7035 | 38 | M4 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.09046 | stainless steel | traffic red RAL 3020 | 38 | M4 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.09047 | stainless steel | colza yellow RAL 1021 | 38 | M4 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.0905 | stainless steel | black gray RAL 7021 | 38 | M5 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.09055 | stainless steel | light gray RAL 7035 | 38 | M5 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.09056 | stainless steel | traffic red RAL 3020 | 38 | M5 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.09057 | stainless steel | colza yellow RAL 1021 | 38 | M5 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.0906 | stainless steel | black gray RAL 7021 | 38 | M6 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.09065 | stainless steel | light gray RAL 7035 | 38 | M6 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.09066 | stainless steel | traffic red RAL 3020 | 38 | M6 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.09067 | stainless steel | colza yellow RAL 1021 | 38 | M6 | 12 | 4,5 | 18 | 8,5 | 10 | | | 3.08 $ (USD) | | | K0274.0105 | stainless steel | black gray RAL 7021 | 50 | M5 | 14 | 5 | 24 | 11,5 | 10 | | | 3.38 $ (USD) | | | K0274.01055 | stainless steel | light gray RAL 7035 | 50 | M5 | 14 | 5 | 24 | 11,5 | 10 | | | 3.38 $ (USD) | | | K0274.01056 | stainless steel | traffic red RAL 3020 | 50 | M5 | 14 | 5 | 24 | 11,5 | 10 | | | 3.38 $ (USD) | | | K0274.01057 | stainless steel | colza yellow RAL 1021 | 50 | M5 | 14 | 5 | 24 | 11,5 | 10 | | | 3.38 $ (USD) | | | K0274.0106 | stainless steel | black gray RAL 7021 | 50 | M6 | 14 | 5 | 24 | 11,5 | 10 | | | 3.38 $ (USD) | | | K0274.01065 | stainless steel | light gray RAL 7035 | 50 | M6 | 14 | 5 | 24 | 11,5 | 10 | | | 3.38 $ (USD) | | | K0274.01066 | stainless steel | traffic red RAL 3020 | 50 | M6 | 14 | 5 | 24 | 11,5 | 10 | | | 3.38 $ (USD) | | | K0274.01067 | stainless steel | colza yellow RAL 1021 | 50 | M6 | 14 | 5 | 24 | 11,5 | 10 | | | 3.38 $ (USD) | | | K0274.0208 | stainless steel | black gray RAL 7021 | 75 | M8 | 21 | 7 | 35,6 | 16,5 | 14 | | | 4.20 $ (USD) | | | K0274.02085 | stainless steel | light gray RAL 7035 | 75 | M8 | 21 | 7 | 35,6 | 16,5 | 14 | | | 4.20 $ (USD) | | | K0274.02086 | stainless steel | traffic red RAL 3020 | 75 | M8 | 21 | 7 | 35,6 | 16,5 | 14 | | | 4.20 $ (USD) | | | K0274.02087 | stainless steel | colza yellow RAL 1021 | 75 | M8 | 21 | 7 | 35,6 | 16,5 | 14 | | | 4.20 $ (USD) | | | K0274.0210 | stainless steel | black gray RAL 7021 | 75 | M10 | 21 | 7 | 35,6 | 16,5 | 14 | | | 4.20 $ (USD) | | | K0274.02105 | stainless steel | light gray RAL 7035 | 75 | M10 | 21 | 7 | 35,6 | 16,5 | 14 | | | 4.20 $ (USD) | | | K0274.02106 | stainless steel | traffic red RAL 3020 | 75 | M10 | 21 | 7 | 35,6 | 16,5 | 14 | | | 4.20 $ (USD) | | | K0274.02107 | stainless steel | colza yellow RAL 1021 | 75 | M10 | 21 | 7 | 35,6 | 16,5 | 14 | | | 4.20 $ (USD) | |
