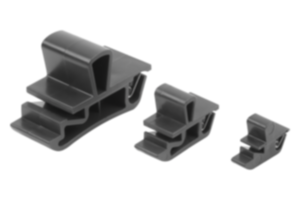

K1652Snap locks, snap-in, plastic, with grip |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Lock PC/ABS.
Spring: stainless steel 1.4310 (AISI 301 equivalent).Version:Lock black.
Spring bright.Note:Snap locks are designed for installation in doors, hatches and covers.
Available in different sizes for different door leaf thicknesses.
Flammability: listed UL94-HB.Type of operation:When the grip is pressed down, the latch retracts and the door can be opened. When the door is pushed to, a spring automatically latches it shut.Application:- Automobile industry
- Medical technology
- Machine construction
- Equipment construction
- Industrial control cabinetsAssembly:1. Produce a burr-free mounting cutout as shown in the drawing.
2. Insert the lock into the cutout from the front and push forwards.
3. Press the lock down to clip in.Drawing reference:1) Frame
2) Door leaf
3) Mounting cutout
4) Actuation direction
5) Lock
6) Spring DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | style | B
| B1 | H | H1 = Total
holding area | H2 | H3 | H4 | L | L1 | L2 | L3 | L4 | R | Max.
operating load
in N | Temperature range
°C
| S = Door thickness
in mm | CAD | Acc. | Price | Order |
|---|
| K1652.211060 | A | 6 | 4,4 | 11,6 | 2,2 | 1,3 | 6,1 | 4,57 | 15,9 | 12,75 | 5 | 8,33 | 4,8 | max. 0,1 | 25 | -40 to 60 | 0,6 |  | | 6.08 $ (USD) | | | K1652.215090 | B | 9,5 | 7,8 | 15,5 | 2,65 | 2,1 | 9,1 | 8,2 | 22,5 | 19,05 | 6,3 | 12,7 | 6,4 | max. 0,1 | 90 | -40 to 60 | 0,8 | | | 4.97 $ (USD) | | | K1652.222160 | C | 16,5 | 14 | 23,1 | 4,5 | 2,6 | 13,6 | 14,3 | 36 | 30 | 10,3 | 22,2 | 9,5 | max. 0,1 | 130 | -40 to 60 | 1 | | | 5.64 $ (USD) | |
