Screw plugs with hexagon socket

K1102

Screw plugs with hexagon socket

Products
- Level indicators, screw plugs
  - Screw plugs with hexagon socket

Item description/product images

DescriptionMaterial:Steel 1.0737.
O-ring NBR, Shore 90.Version:Electro zinc-plated.Note:Operating temperature: -20°C / +100°C.
Operating pressure: max. 70 bar for static application.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1102 Screw plugs with hexagon socket

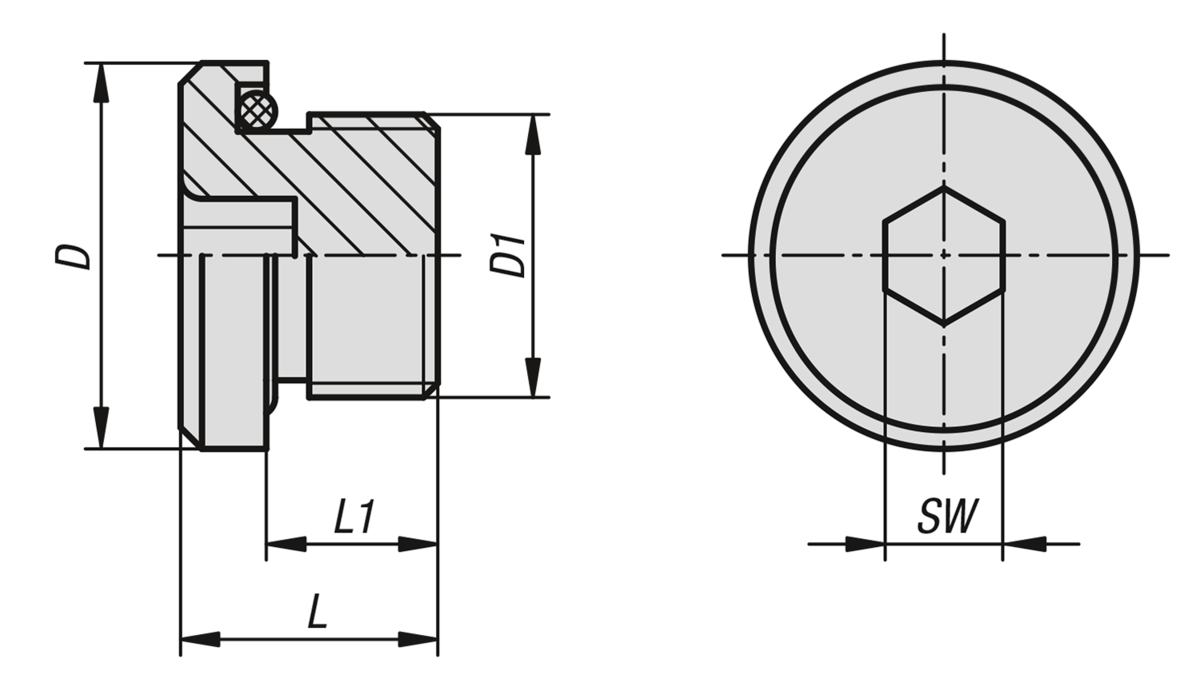

Drawings

Screw plugs with hexagon socket

Item selection/filter

Item No.	D	D1	L	L1	SW	CAD	Acc.	Price	Order
K1102.15018	15	G1/8	13	9	4			1.66 $ (USD)
K1102.19014	19	G1/4	16	11	6			1.86 $ (USD)
K1102.22038	22	G3/8	17	11	6			2.30 $ (USD)
K1102.27012	27	G1/2	20	14	8			3.62 $ (USD)
K1102.32034	32	G3/4	20	14	12			3.97 $ (USD)
K1102.40001	40	G1	22	16	12			7.87 $ (USD)
K1102.50114	50	G1 1/4	25	18	12			17.84 $ (USD)
K1102.55112	55	G1 1/2	24	17	24			24.16 $ (USD)
K1102.141010	15	M10X1	12	8	5			1.94 $ (USD)
K1102.171215	17	M12X1,5	16	10	6			2.93 $ (USD)
K1102.191415	19	M14X1,5	16	10	6			2.16 $ (USD)
K1102.221615	22	M16X1,5	16	10	6			2.54 $ (USD)
K1102.251815	25	M18X1,5	17	11	8			2.72 $ (USD)
K1102.272015	27	M20X1,5	18	12	8			3.66 $ (USD)
K1102.282215	28	M22X1,5	18	12	10			3.84 $ (USD)
K1102.322615	32	M26X1,5	20	13,5	12			5.06 $ (USD)
K1102.322702	32	M27X2	20	13,5	12			6.75 $ (USD)
K1102.403302	40	M33X2	21	15	17			13.78 $ (USD)
K1102.504202	50	M42X2	24	17	22			19.07 $ (USD)
K1102.554802	55	M48X2	24	17	24			34.10 $ (USD)
