Screw plugs with collar and hexagon socket DIN 908

K1130

Screw plugs with collar and hexagon socket DIN 908

Products
- Level indicators, screw plugs
  - Screw plugs with collar and hexagon socket DIN 908

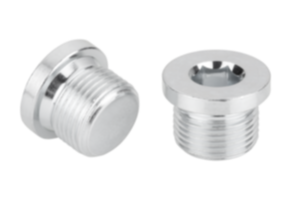

Item description/product images

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:Screw plugs with collar and hexagon socket for plugging holes with parallel threads.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1130 Screw plugs with collar and hexagon socket DIN 908

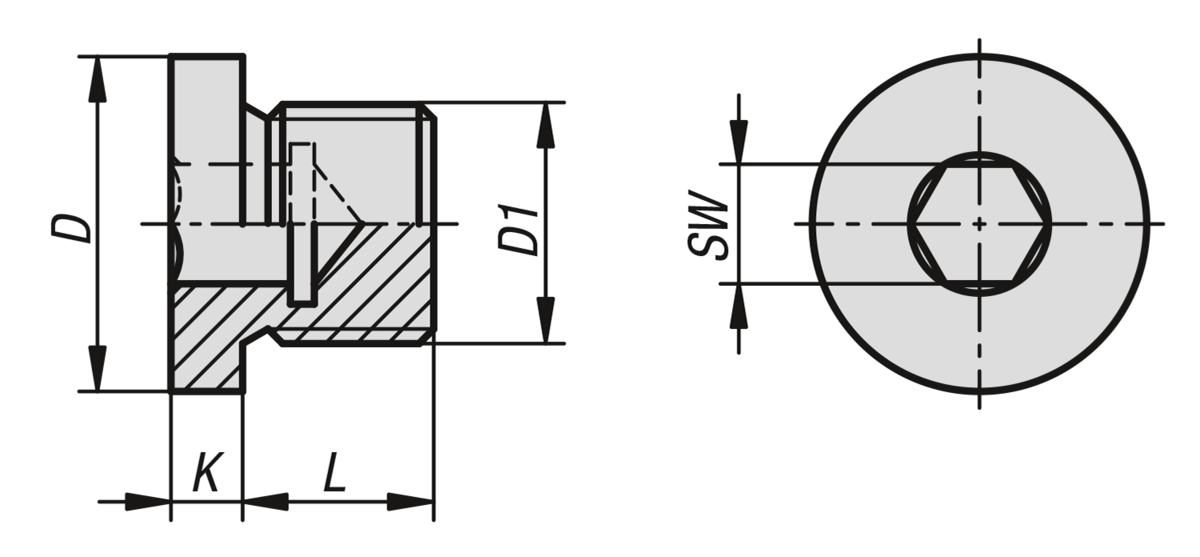

Drawings

Screw plugs with collar and hexagon socket DIN 908

Item selection/filter

Order No.	D	D1	K	L	SW	CAD	Acc.	Price	Order
K1130.100810	12	M8x1	3	8	4			0.00 $ (USD)
K1130.101010	14	M10X1	3	8	5			0.00 $ (USD)
K1130.101215	17	M12X1,5	3	12	6			0.00 $ (USD)
K1130.101415	19	M14X1,5	3	12	6			0.00 $ (USD)
K1130.101615	21	M16X1,5	3	12	8			0.00 $ (USD)
K1130.101815	23	M18X1,5	4	12	8			0.00 $ (USD)
K1130.102015	25	M20X1,5	4	14	10			0.00 $ (USD)
K1130.102215	27	M22X1,5	4	14	10			0.00 $ (USD)
K1130.102415	29	M24X1,5	4	14	12			0.00 $ (USD)
K1130.102615	31	M26X1,5	4	16	12			0.00 $ (USD)
K1130.102720	32	M27X2	4	16	12			0.00 $ (USD)
K1130.103015	36	M30X1,5	4	16	17			0.00 $ (USD)
K1130.103320	39	M33X2	5	16	17			0.00 $ (USD)
K1130.103615	42	M36X1,5	5	16	19			0.00 $ (USD)
K1130.104215	49	M42X1,5	5	16	22			0.00 $ (USD)
K1130.104220	49	M42X2	5	16	22			0.00 $ (USD)
K1130.104815	55	M48X1,5	5	16	24			0.00 $ (USD)
K1130.104820	55	M48X2	5	16	24			0.00 $ (USD)
K1130.10018	14	G1/8	3	8	5			0.00 $ (USD)
K1130.10014	18	G1/4	3	12	6			0.00 $ (USD)
K1130.10038	22	G3/8	3	12	8			0.00 $ (USD)
K1130.10012	26	G1/2	4	14	10			0.00 $ (USD)
K1130.10034	32	G3/4	4	16	12			0.00 $ (USD)
K1130.10100	39	G1	5	16	17			0.00 $ (USD)
K1130.10114	49	G1 1/4	5	16	22			0.00 $ (USD)
K1130.10112	55	G1 1/2	5	16	24			0.00 $ (USD)
