Hexagon head screw plugs with collar DIN 910

K1131

Hexagon head screw plugs with collar DIN 910

Products
- Level indicators, screw plugs
  - Hexagon head screw plugs with collar DIN 910

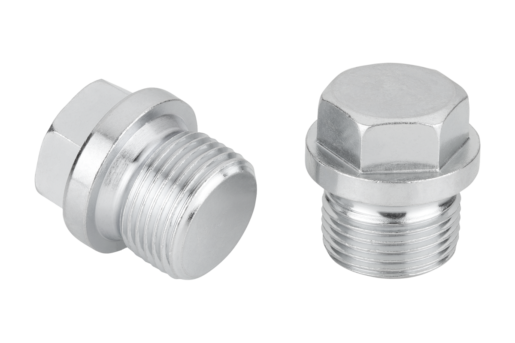

Item description/product images

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:Screw plugs with collar and hexagonal head for plugging holes with parallel threads.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1131 Hexagon head screw plugs with collar DIN 910

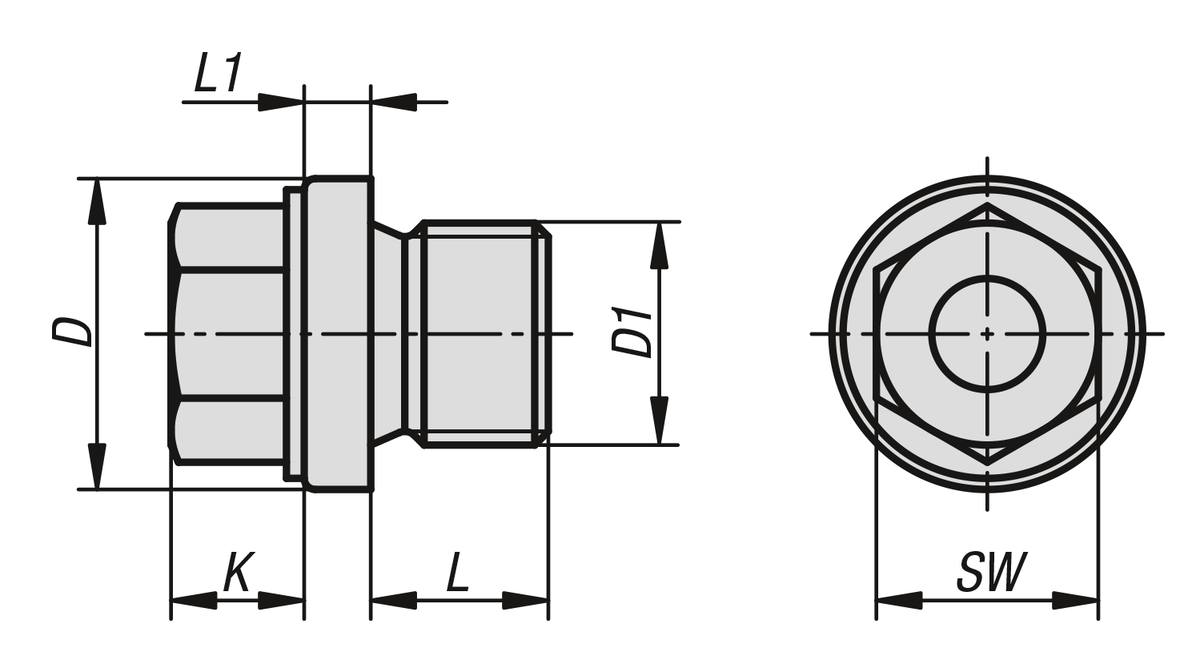

Drawings

Hexagon head screw plugs with collar DIN 910

Item selection/filter

Order No.	D	D1	K	L	L1	SW	CAD	Acc.	Price	Order
K1131.101010	14	M10X1	6	8	3	10			1.42 $ (USD)
K1131.101215	17	M12X1,5	6	12	3	13			1.87 $ (USD)
K1131.101415	19	M14X1,5	6	12	3	13			1.93 $ (USD)
K1131.101615	21	M16X1,5	6	12	3	17			2.41 $ (USD)
K1131.101815	23	M18X1,5	8	12	4	17			3.08 $ (USD)
K1131.102015	25	M20X1,5	8	14	4	19			3.33 $ (USD)
K1131.102215	27	M22X1,5	8	14	4	19			3.80 $ (USD)
K1131.102415	29	M24X1,5	9	14	4	22			5.38 $ (USD)
K1131.102615	31	M26X1,5	10	16	4	24			6.26 $ (USD)
K1131.102720	32	M27X2	10	16	4	24			6.48 $ (USD)
K1131.103015	36	M30X1,5	10	16	4	24			7.49 $ (USD)
K1131.103320	39	M33X2	11	16	5	27			9.29 $ (USD)
K1131.103615	42	M36X1,5	11	16	5	27			14.24 $ (USD)
K1131.104215	49	M42X1,5	12	16	5	30			17.50 $ (USD)
K1131.104220	49	M42X2	12	16	5	30			17.50 $ (USD)
K1131.104815	55	M48X1,5	12	16	5	30			24.88 $ (USD)
K1131.104820	55	M48X2	12	16	5	30			24.89 $ (USD)
K1131.10018	14	G1/8	6	8	3	10			1.39 $ (USD)
K1131.10014	18	G1/4	6	12	3	13			1.93 $ (USD)
K1131.10038	22	G3/8	6	12	3	17			2.29 $ (USD)
K1131.10012	26	G1/2	8	14	4	19			3.46 $ (USD)
K1131.10034	32	G3/4	10	16	4	24			6.01 $ (USD)
K1131.10100	39	G1	11	16	5	27			7.87 $ (USD)
K1131.10114	49	G1 1/4	12	16	5	30			17.37 $ (USD)
K1131.10112	55	G1 1/2	12	16	5	30			22.55 $ (USD)
