Grease nipples button head DIN 3404
K1135

Grease nipples button head DIN 3404

go back

Item description/product images

DescriptionMaterial:Steel or 1.4305 (AISI 303 equivalent) stainless steelVersion:Steel electro zinc-plated.
Stainless steel bright.
Note:As the construction of button head grease nipples allow for a high lubrication flow rate, they are especially useful for lubrication points which require a large grease volume. Because of the robust design, button head grease nipples are preferred for machines that are subjected to high external stress.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1135 Grease nipples button head DIN 3404 167 kB

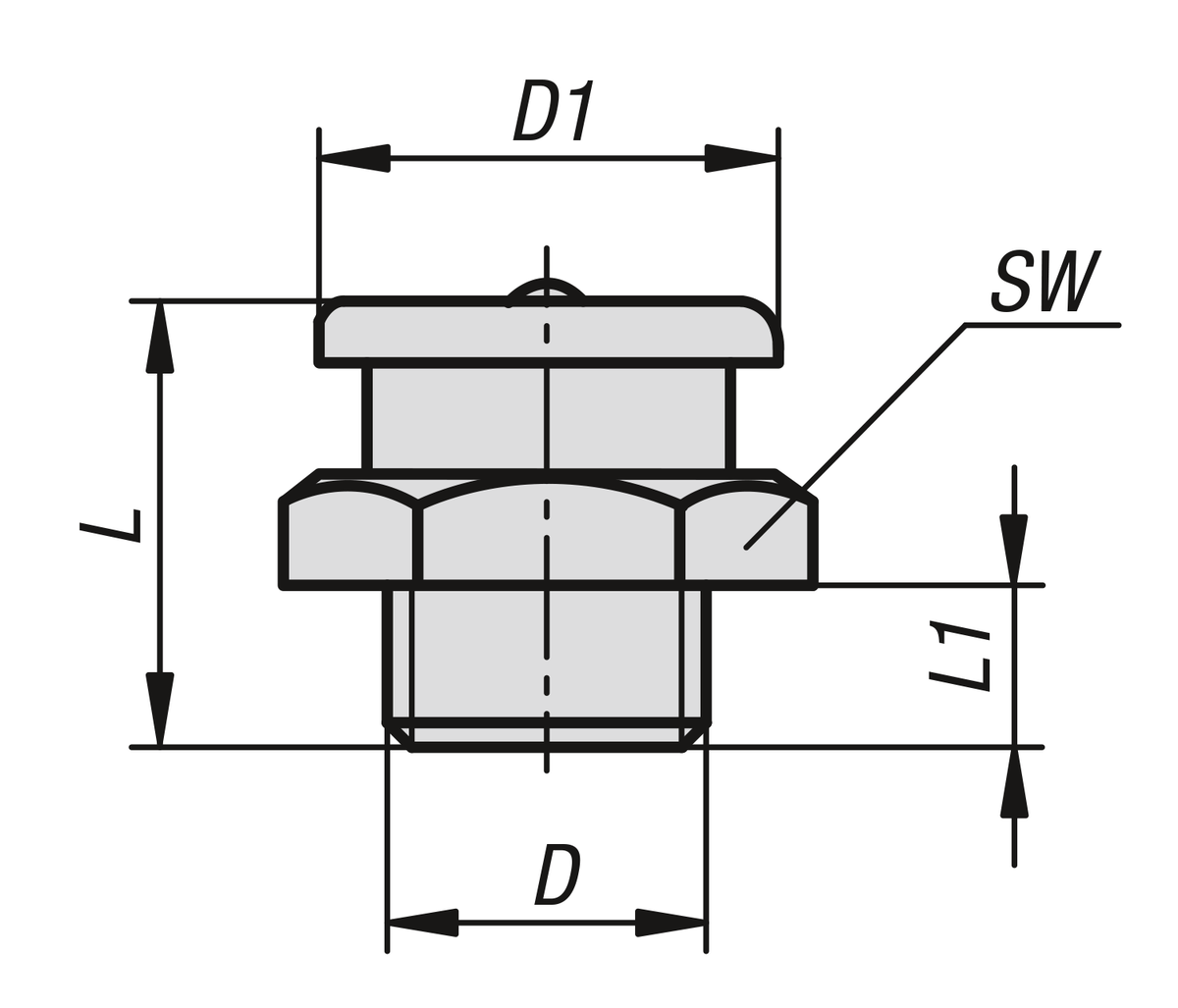

Drawings

Grease nipples button head DIN 3404

Item selection/filter

Order No.Main
material
D

D1LL1SWCADAcc.PriceOrder
K1135.11006100steelM6x11013,55,511 2.68 $ (USD)
K1135.11008100steelM8x11013,55,511 2.68 $ (USD)
K1135.11010100steelM10x11013,55,511 2.68 $ (USD)
K1135.11018steelG1/81013,55,511 2.68 $ (USD)
K1135.11606100steelM6x11617617 2.54 $ (USD)
K1135.11608100steelM8x11617617 2.54 $ (USD)
K1135.11608125steelM8x1,251617617 2.54 $ (USD)
K1135.11610100steelM10x11617617 2.54 $ (USD)
K1135.11610150steelM10x1,51617617 2.54 $ (USD)
K1135.11612150steelM12x1,51617617 2.54 $ (USD)
K1135.11616150steelM16x1,51618717 2.80 $ (USD)
K1135.11618steelG1/81617617 2.54 $ (USD)
K1135.11614steelG1/41617617 2.64 $ (USD)
K1135.21606100stainless steelM6x11617617 12.68 $ (USD)
K1135.21608100stainless steelM8x11617617 12.10 $ (USD)
K1135.21608125stainless steelM8x1,251617617 12.10 $ (USD)
K1135.21610100stainless steelM10x11617617 12.10 $ (USD)
K1135.21610150stainless steelM10x1,51617617 12.10 $ (USD)
K1135.21612150stainless steelM12x1,51617617 12.10 $ (USD)
K1135.21618stainless steelG1/81617617 12.10 $ (USD)
K1135.21614stainless steelG1/41617617 12.10 $ (USD)
K1135.12216150steelM16x1,52221,5822 7.56 $ (USD)
K1135.12214steelG1/42221,5822 7.56 $ (USD)
K1135.12238steelG3/82221,5822 7.56 $ (USD)
K1135.22216150stainless steelM16x1,52221,5822 48.24 $ (USD)
K1135.22214stainless steelG1/42221,5822 48.24 $ (USD)
K1135.22238stainless steelG3/82221,5822 48.24 $ (USD)
