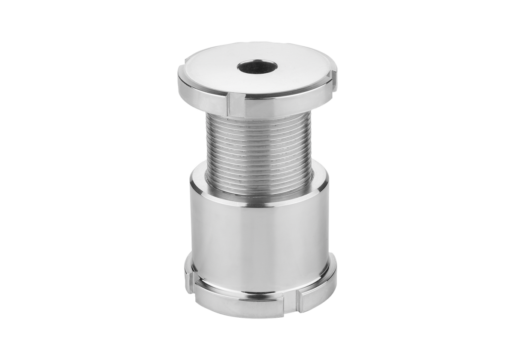

DescriptionMaterial:Steel 1.7225.
Stainless steel 1.4305 (AISI 303 equivalent).Version:Seel version trivalent blue passivated.
Stainless steel version bright.Note:Levelling sets are used for mounting, levelling and aligning motors, aggregates, drive units and assembly lines. They have a large adjustment range of 15 mm to 40 mm. Other sizes available on request.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | D | for
screw
| D1
| D2 | H
min.
| H
max.
| B | N | M | F
kN | CAD | Acc. | Price | Order |
|---|
| K0692.01504 | carbon steel | 4,5 | M4 | M15x1 | 25 | 28 | 43 | 5 | 4 | 2 | 40 |  | | 48.18 $ (USD) | | | K0692.01505 | carbon steel | 5,5 | M5 | M15x1 | 25 | 28 | 43 | 5 | 4 | 2 | 40 | | | 48.18 $ (USD) | | | K0692.01506 | carbon steel | 6,6 | M6 | M15x1 | 25 | 28 | 43 | 5 | 4 | 2 | 40 | | | 48.18 $ (USD) | | | K0692.02006 | carbon steel | 6,6 | M6 | M20x1 | 32 | 35 | 55 | 6 | 4 | 2 | 65 | | | 52.83 $ (USD) | | | K0692.02008 | carbon steel | 9 | M8 | M20x1 | 32 | 35 | 55 | 6 | 4 | 2 | 65 | | | 52.83 $ (USD) | | | K0692.02010 | carbon steel | 11 | M10 | M20x1 | 32 | 35 | 55 | 6 | 4 | 2 | 65 | | | 52.83 $ (USD) | | | K0692.02510 | carbon steel | 11 | M10 | M30x1,5 | 45 | 42 | 67 | 7 | 5 | 2 | 120 | | | 55.86 $ (USD) | | | K0692.02512 | carbon steel | 13,5 | M12 | M30x1,5 | 45 | 42 | 67 | 7 | 5 | 2 | 120 | | | 55.86 $ (USD) | | | K0692.02516 | carbon steel | 17,5 | M16 | M30x1,5 | 45 | 42 | 67 | 7 | 5 | 2 | 120 | | | 55.86 $ (USD) | | | K0692.03216 | carbon steel | 17,5 | M16 | M40x1,5 | 58 | 54 | 86 | 9 | 6 | 2,5 | 210 | | | 66.56 $ (USD) | | | K0692.03220 | carbon steel | 22 | M20 | M40x1,5 | 58 | 54 | 86 | 9 | 6 | 2,5 | 210 | | | 66.56 $ (USD) | | | K0692.03224 | carbon steel | 26 | M24 | M40x1,5 | 58 | 54 | 86 | 9 | 6 | 2,5 | 210 | | | 66.56 $ (USD) | | | K0692.04020 | carbon steel | 22 | M20 | M50x1,5 | 70 | 66 | 106 | 11 | 6 | 2,5 | 330 | | | 132.37 $ (USD) | | | K0692.04024 | carbon steel | 26 | M24 | M50x1,5 | 70 | 66 | 106 | 11 | 6 | 2,5 | 330 | | | 127.26 $ (USD) | | | K0692.04030 | carbon steel | 33 | M30 | M50x1,5 | 70 | 66 | 106 | 11 | 6 | 2,5 | 330 | | | 127.26 $ (USD) | | | K0692.015041 | stainless steel | 4,5 | M4 | M15x1 | 25 | 28 | 43 | 5 | 4 | 2 | 27,1 | | | 77.21 $ (USD) | | | K0692.015051 | stainless steel | 5,5 | M5 | M15x1 | 25 | 28 | 43 | 5 | 4 | 2 | 27,1 | | | 77.21 $ (USD) | | | K0692.015061 | stainless steel | 6,6 | M6 | M15x1 | 25 | 28 | 43 | 5 | 4 | 2 | 27,1 | | | 77.21 $ (USD) | | | K0692.020061 | stainless steel | 6,6 | M6 | M20x1 | 32 | 35 | 55 | 6 | 4 | 2 | 43,4 | | | 90.04 $ (USD) | | | K0692.020081 | stainless steel | 9 | M8 | M20x1 | 32 | 35 | 55 | 6 | 4 | 2 | 43,4 | | | 90.04 $ (USD) | | | K0692.020101 | stainless steel | 11 | M10 | M20x1 | 32 | 35 | 55 | 6 | 4 | 2 | 43,4 | | | 90.04 $ (USD) | | | K0692.025101 | stainless steel | 11 | M10 | M30x1,5 | 45 | 42 | 67 | 7 | 5 | 2 | 84 | | | 105.17 $ (USD) | | | K0692.025121 | stainless steel | 13,5 | M12 | M30x1,5 | 45 | 42 | 67 | 7 | 5 | 2 | 84 | | | 105.17 $ (USD) | | | K0692.025161 | stainless steel | 17,5 | M16 | M30x1,5 | 45 | 42 | 67 | 7 | 5 | 2 | 84 | | | 105.17 $ (USD) | | | K0692.032161 | stainless steel | 17,5 | M16 | M40x1,5 | 58 | 54 | 86 | 9 | 6 | 2,5 | 148 | | | 130.70 $ (USD) | | | K0692.032201 | stainless steel | 22 | M20 | M40x1,5 | 58 | 54 | 86 | 9 | 6 | 2,5 | 148 | | | 130.70 $ (USD) | | | K0692.032241 | stainless steel | 26 | M24 | M40x1,5 | 58 | 54 | 86 | 9 | 6 | 2,5 | 148 | | | 130.70 $ (USD) | | | K0692.040201 | stainless steel | 22 | M20 | M50x1,5 | 70 | 66 | 106 | 11 | 6 | 2,5 | 225 | | | 230.61 $ (USD) | | | K0692.040241 | stainless steel | 26 | M24 | M50x1,5 | 70 | 66 | 106 | 11 | 6 | 2,5 | 225 | | | 230.61 $ (USD) | | | K0692.040301 | stainless steel | 33 | M30 | M50x1,5 | 70 | 66 | 106 | 11 | 6 | 2,5 | 225 | | | 230.61 $ (USD) | |
