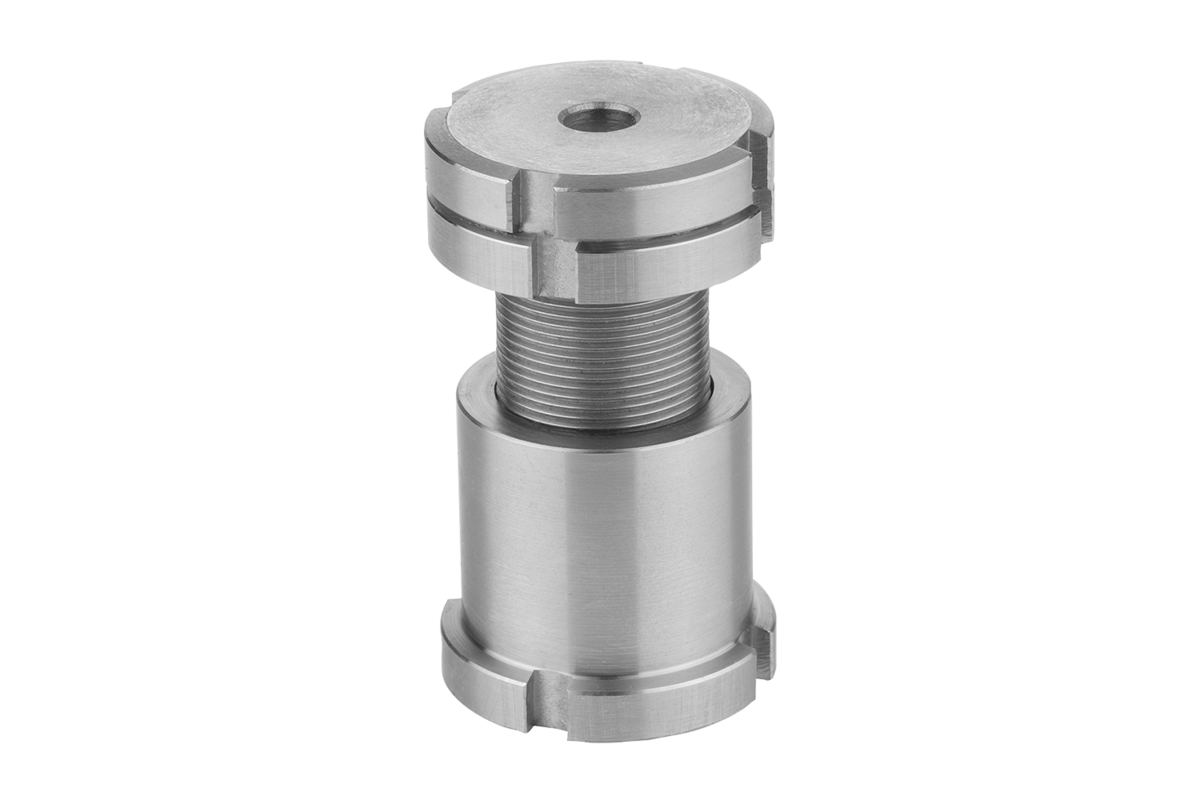

K0693Leveling Sets with Locking Nuts |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel 1.7225.
Stainless steel 1.4305 (AISI 303 equivalent).Version:Seel version trivalent blue passivated. Stainless steel version bright.Note:Levelling sets are used for mounting, levelling and aligning motors, aggregates, drive units and assembly lines. The locknut secures a prescribed setting. Other sizes available on request. The static additional load F1 is effective after deducting the tensioning force (screw 8.8, µm = 0.125) from the total load F.
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No. | Main material | D | for screw | D1 | D2 | H min.
| H max.
| B | N | M | F kN | F1 kN | CAD | Acc. | Price | Order |
---|
K0693.01004 | carbon steel | 4,5 | M4 | M15x1 | 25 | 33 | 43 | - | 4 | 2 | 40 | 36 | | | 62.91 $ (USD) | | K0693.01005 | carbon steel | 5,5 | M5 | M15x1 | 25 | 33 | 43 | - | 4 | 2 | 40 | 33,4 | | | 59.12 $ (USD) | | K0693.01006 | carbon steel | 6,6 | M6 | M15x1 | 25 | 33 | 43 | - | 4 | 2 | 40 | 30,7 | | | 59.12 $ (USD) | | K0693.01406 | carbon steel | 6,6 | M6 | M20x1 | 32 | 41 | 55 | - | 4 | 2 | 65 | 55,7 | | | 64.21 $ (USD) | | K0693.01408 | carbon steel | 9 | M8 | M20x1 | 32 | 41 | 55 | - | 4 | 2 | 65 | 48 | | | 64.21 $ (USD) | | K0693.01410 | carbon steel | 11 | M10 | M20x1 | 32 | 41 | 55 | - | 4 | 2 | 65 | 37,9 | | | 64.21 $ (USD) | | K0693.01810 | carbon steel | 11 | M10 | M30x1,5 | 45 | 49 | 67 | - | 5 | 2 | 120 | 92,9 | | | 69.30 $ (USD) | | K0693.01812 | carbon steel | 13,5 | M12 | M30x1,5 | 45 | 49 | 67 | - | 5 | 2 | 120 | 80,4 | | | 69.30 $ (USD) | | K0693.01816 | carbon steel | 17,5 | M16 | M30x1,5 | 45 | 49 | 67 | - | 5 | 2 | 120 | 45,5 | | | 69.30 $ (USD) | | K0693.02316 | carbon steel | 17,5 | M16 | M40x1,5 | 58 | 63 | 86 | - | 6 | 2,5 | 210 | 136 | | | 81.68 $ (USD) | | K0693.02320 | carbon steel | 22 | M20 | M40x1,5 | 58 | 63 | 86 | - | 6 | 2,5 | 210 | 90 | | | 84.94 $ (USD) | | K0693.02324 | carbon steel | 26 | M24 | M40x1,5 | 58 | 63 | 86 | - | 6 | 2,5 | 210 | 37 | | | 84.94 $ (USD) | | K0693.02920 | carbon steel | 22 | M20 | M50x1,5 | 70 | 77 | 106 | - | 6 | 2,5 | 330 | 210 | | | 180.00 $ (USD) | | K0693.02924 | carbon steel | 26 | M24 | M50x1,5 | 70 | 77 | 106 | - | 6 | 2,5 | 330 | 157 | | | 164.46 $ (USD) | | K0693.02930 | carbon steel | 33 | M30 | M50x1,5 | 70 | 77 | 106 | - | 6 | 2,5 | 330 | 53 | | | 158.18 $ (USD) | | K0693.010041 | stainless steel | 4,5 | M4 | M15x1 | 25 | 33 | 43 | - | 4 | 2 | 27,1 | 24,14 | | | 92.81 $ (USD) | | K0693.010051 | stainless steel | 5,5 | M5 | M15x1 | 25 | 33 | 43 | - | 4 | 2 | 27,1 | 22,24 | | | 92.81 $ (USD) | | K0693.010061 | stainless steel | 6,6 | M6 | M15x1 | 25 | 33 | 43 | - | 4 | 2 | 27,1 | 20,26 | | | 92.81 $ (USD) | | K0693.014061 | stainless steel | 6,6 | M6 | M20x1 | 32 | 41 | 55 | - | 4 | 2 | 43,4 | 36,56 | | | 107.48 $ (USD) | | K0693.014081 | stainless steel | 9 | M8 | M20x1 | 32 | 41 | 55 | - | 4 | 2 | 43,4 | 30,86 | | | 107.48 $ (USD) | | K0693.014101 | stainless steel | 11 | M10 | M20x1 | 32 | 41 | 55 | - | 4 | 2 | 43,4 | 23,41 | | | 107.48 $ (USD) | | K0693.018101 | stainless steel | 11 | M10 | M30x1,5 | 45 | 49 | 67 | - | 5 | 2 | 84 | 64,01 | | | 126.10 $ (USD) | | K0693.018121 | stainless steel | 13,5 | M12 | M30x1,5 | 45 | 49 | 67 | - | 5 | 2 | 84 | 54,82 | | | 126.10 $ (USD) | | K0693.018161 | stainless steel | 17,5 | M16 | M30x1,5 | 45 | 49 | 67 | - | 5 | 2 | 84 | 28,9 | | | 126.10 $ (USD) | | K0693.023161 | stainless steel | 17,5 | M16 | M40x1,5 | 58 | 63 | 86 | - | 6 | 2,5 | 148 | 92,9 | | | 158.18 $ (USD) | | K0693.023201 | stainless steel | 22 | M20 | M40x1,5 | 58 | 63 | 86 | - | 6 | 2,5 | 148 | 59,08 | | | 158.18 $ (USD) | | K0693.023241 | stainless steel | 26 | M24 | M40x1,5 | 58 | 63 | 86 | - | 6 | 2,5 | 148 | 20,3 | | | 158.18 $ (USD) | | K0693.029201 | stainless steel | 22 | M20 | M50x1,5 | 70 | 77 | 106 | - | 6 | 2,5 | 225 | 136,08 | | | 288.48 $ (USD) | | K0693.029241 | stainless steel | 26 | M24 | M50x1,5 | 70 | 77 | 106 | - | 6 | 2,5 | 225 | 97,3 | | | 288.48 $ (USD) | | K0693.029301 | stainless steel | 33 | M30 | M50x1,5 | 70 | 77 | 106 | - | 6 | 2,5 | 225 | 20,6 | | | 288.48 $ (USD) | |
